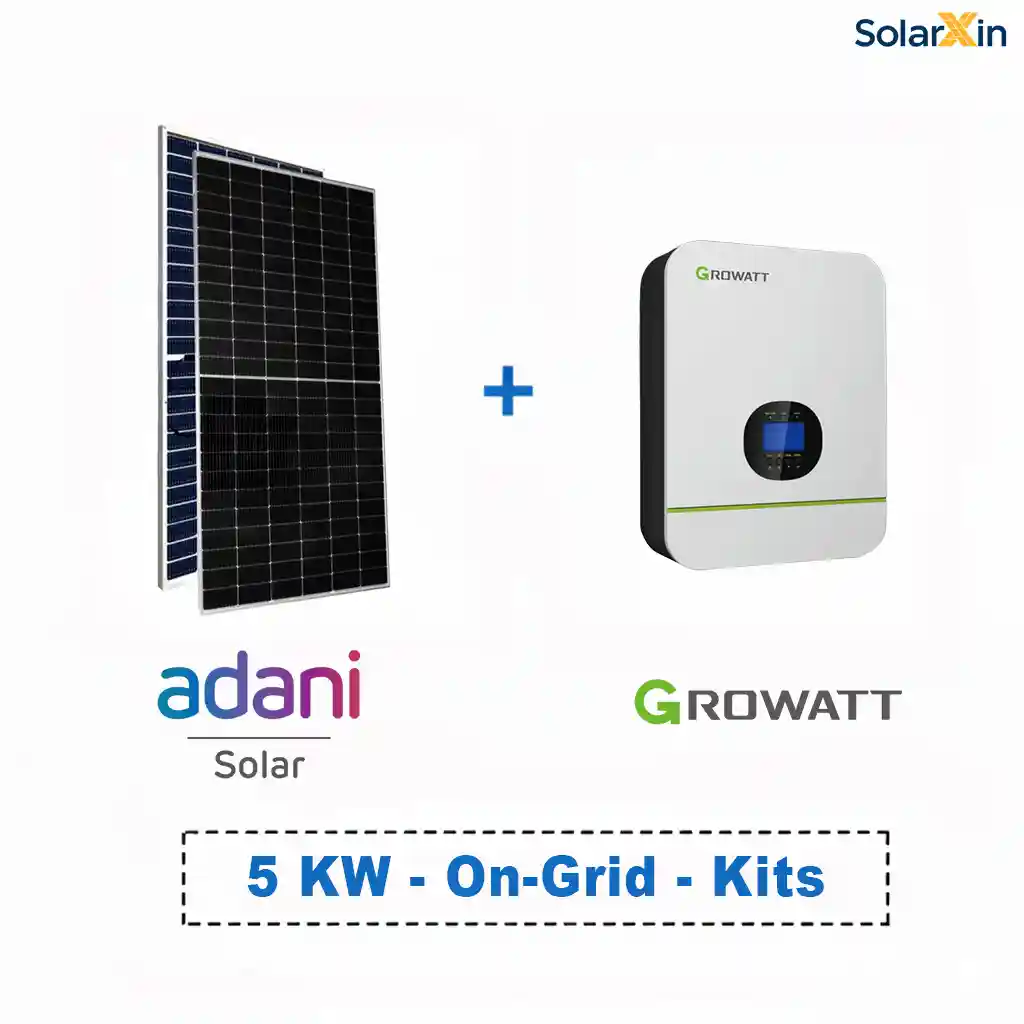

5kW On-Grid Solar Kit – Adani DCR Panels with Growatt Inverter
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- DCR Adani panels
- 5kW power capacity
- Growatt on-grid inverter
- Smart energy monitoring
- Low maintenance system
Get a Quote
Payment Methods:
Description
Experience high-performance solar energy with the 5kW On-Grid Solar Kit, featuring DCR-compliant Adani Solar Panels and a smart Growatt inverter. This system is specially designed for customers who need DCR-certified components under government-approved or subsidy-linked solar programs.
Adani’s DCR solar panels are manufactured in India, meeting MNRE’s Domestic Content Requirement. These Tier-1 panels offer superior efficiency, robust design, and long-lasting performance even in extreme Indian weather conditions.
The kit includes a Growatt inverter – a global leader in solar inverter technology. With high conversion efficiency and Wi-Fi/remote monitoring features, it ensures smooth grid-tied operation and optimized energy output.
Ideal for homes, offices, or small commercial spaces connected to the utility grid, this 5kW solar kit delivers clean power, reduces your electricity bills, and supports sustainability goals — all while being compliant with government norms.
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Adani Solar, DCR, Mono PERC, 440–550W | 10 – 14 Panels |
| 2 | Inverter | Growatt On-Grid String Inverter, 5kW | 1 Unit |
| 3 | DCDB (DC Distribution Box) | IP65 Enclosure, Fuse, SPD, MCB | 1 Unit |
| 4 | ACDB (AC Distribution Box) | IP65 Enclosure, MCB, SPD, Energy Meter | 1 Unit |
| 5 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 100 – 150 meters |
| 6 | DC Cable (6 sq.mm) | Copper, UV Resistant, Flexible | 30 – 50 meters |
| 7 | AC Cable (Inverter to ACDB) | 3 Core, Copper Armoured | 20 – 30 meters |
| 8 | MC-4 Connectors | Compatible with 4/6 sq.mm Cable | 6 – 10 Pairs |
| 9 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 10 | Earthing Kit (Earth Rod) | GI / Copper, 2m or 3m | 3 Units |
| 11 | Earthing Kit (Earth Chemical) | Chemical Compound for Grounding | 3 Bags |
| 12 | Earthing Kit (Earth Chamber) | Precast Chamber with Cover | 3 Units |
| 13 | Earthing Cables | Green PVC Insulated Copper Wire | 30 – 50 meters |
| 14 | Lugs | Copper, Crimp Type | As Required |
| 15 | Nut Bolts | Stainless Steel, Anti-rust | As Required |
| 16 | Cable Ties (6 inch) | Nylon, UV Resistant | 100 pcs |
| 17 | Cable Ties (12 inch) | Nylon, UV Resistant | 100 pcs |
| 18 | PU Foam | Weatherproof Sealant | 2 – 3 Cans |
| 19 | Insulation Tape | ISI Marked, Electrical Grade | 5 Rolls |
| 20 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 30 – 50 meters |
Kit Specifications
| Kit Type |
5kW On-Grid Solar Kit – Adani + Growatt |
|---|---|
| System Capacity |
3 kW ,5kW |
| Panel Type |
DCR Monocrystalline |
| No. of Panels |
10 to 14 (approx. based on wattage) |
| Panel Brand |
Adani Solar |
| Inverter Type |
On-Grid (String Inverter) |
| Inverter Brand |
Growatt |
| Battery Included |
No |
| Battery Type |
~ |
| Warranty - Panels |
25 Years |
| Warranty - Inverter |
5 Years |
| MNRE Approved |
Yes |
| Subsidy Eligible |
Yes (for residential under DCR) |
