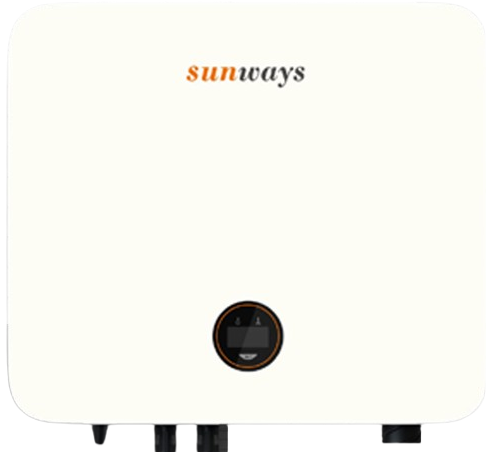

Sunways STS Series Inverter (3.3–6 kW) – Single Phase, 2 MPPTs, On-Grid

SKU: INV00021

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

Highlights

  • Max efficiency 98.1%
  • Wide MPPT voltage
  • IP65 protection rated
  • Silent natural cooling
  • Durable aluminum housing
Brand: Sunways

Get a Quote

    9 People watching this product now!

    Payment Methods:

    Payment methods

    Description

    The Sunways STS Series is a high-performance single-phase on-grid inverter designed for residential and small commercial applications. With advanced heat dissipation, integrated lightning protection, and anti-corrosion aluminum alloy housing, it ensures long-term reliability even in harsh environments.

    Featuring a wide MPPT voltage range, up to 98.1% efficiency, and the ability to handle up to 10% continuous overloading, the STS series guarantees maximum energy yield. Its compact and lightweight design allows easy one-person installation, while wireless/RS485/WiFi/GPRS/LAN communication options provide seamless monitoring and control.

    Built with IP65 protection, natural convection cooling, and compliance with international standards (IEC/EN certifications), the Sunways STS series is safe, reliable, and efficient for modern solar installations.

    Specification

    Input (Solar/DC Side)

    Max Input Current per MPPT (A)

    16A

    Max DC Voltage (V)

    600 V

    MPPT Voltage Range (V)

    80–450 V

    No. of MPPTs

    2

    Max DC Input Power (kW)

    9.6 kW

    Connector Specification

    Grid Connection

    Single phase

    Output (AC Side)

    Frequency (Hz)

    50 Hz / 60 Hz

    Grid Connection

    Single phase

    Rated AC Current (A)

    14.6 A

    Rated AC Voltage (V)

    220 / 230 V

    Rated Output Power (kW)

    3.3 kW ~ 6 kW

    DB Specification

    Mounting Type

    Wall‑mounted

    Noise Level (dB)

    < 25 dB

    Mechanical Details

    Weight 6.5 kg
    Dimensions 32.7 × 29.7 × 11.4 cm
    Mounting Type

    Wall‑mounted

    Smart Features

    Communication Interfaces

    GPRS

    ,

    RS485

    ,

    Wifi / Ethernet

    General

    Cooling Type

    Natural convection

    Max Efficiency (%)

    98.1%

    Phase

    Inverter Type
