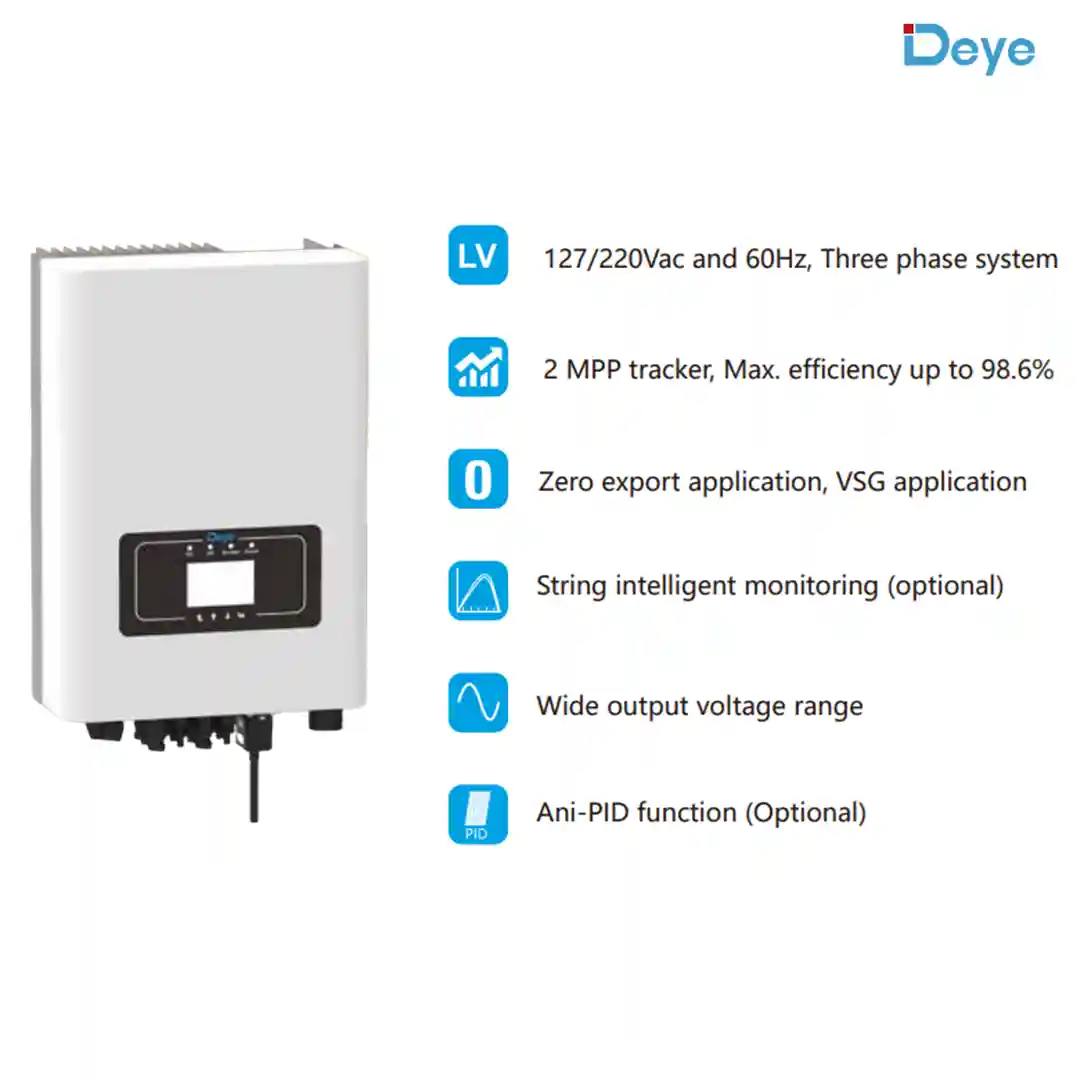

Highlights
- High-efficiency three-phase string inverter (up to 98.6%)
- Dual MPPT for optimized energy harvesting
- Supports zero export and VSG applications
- Optional string-level intelligent monitoring
- Robust protections and wide voltage range
- Compact, reliable design for residential & commercial use

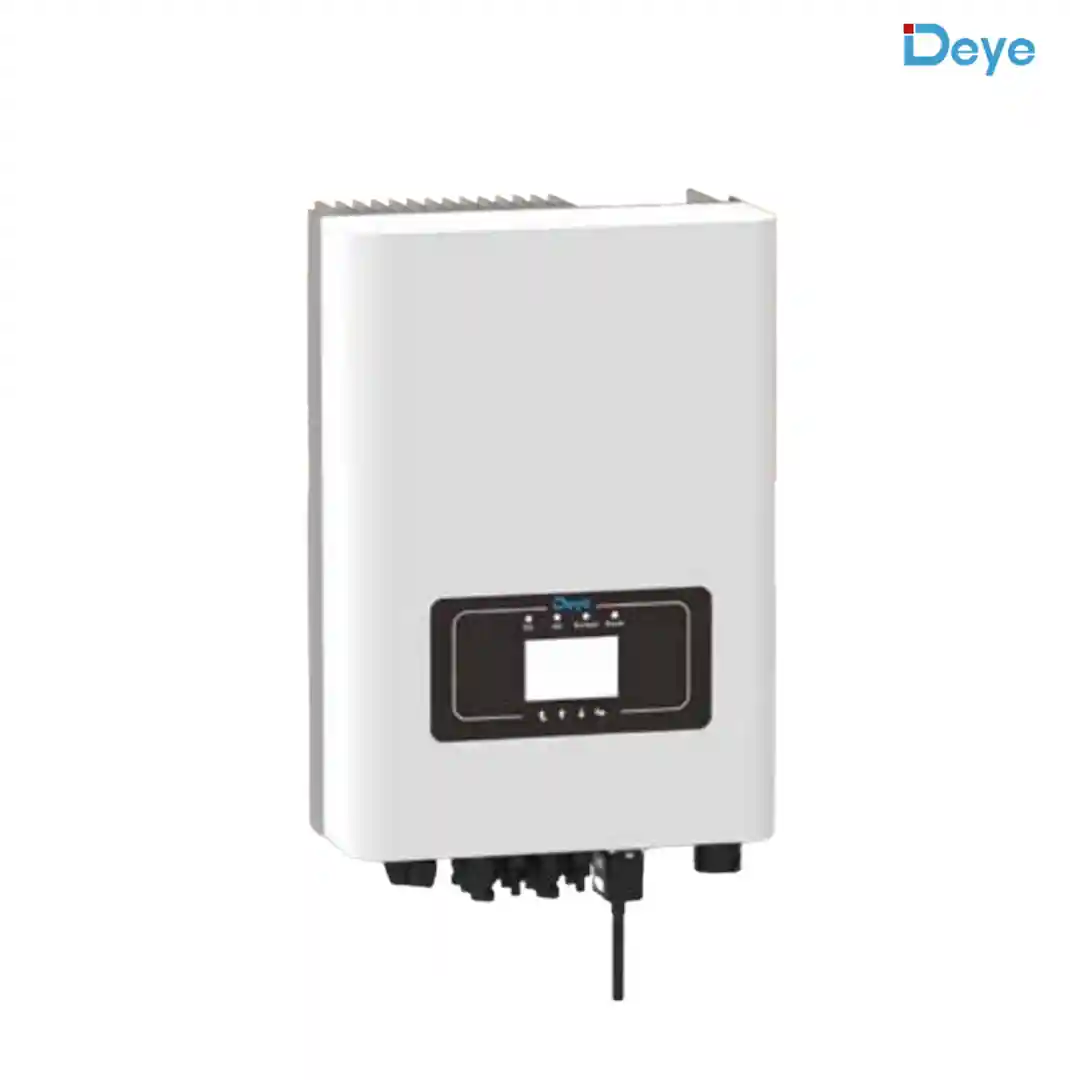

Deye SUN-10/12/15K-G03-LV
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- High-efficiency three-phase string inverter (up to 98.6%)
- Dual MPPT for optimized energy harvesting
- Supports zero export and VSG applications
- Optional string-level intelligent monitoring
- Robust protections and wide voltage range
- Compact, reliable design for residential & commercial use
Get a Quote
Payment Methods:
Description
The Deye SUN-10K, 12K, and 15K-G03-LV are advanced low-voltage three-phase string inverters designed to deliver efficient, reliable, and scalable solar energy solutions for residential and small commercial applications. With flexible power ratings of 10 kW, 12 kW, and 15 kW, these inverters are well-suited for systems where 230/400V three-phase grid connection is required.
Equipped with dual independent MPPTs, the inverters allow for flexible system design, accommodating various rooftop layouts and minimizing power loss due to shading or panel mismatch. High conversion efficiency, typically over 98.3%, ensures optimal energy harvest from your PV system.
The inverters feature intelligent monitoring and communication capabilities through RS485, Wi-Fi, or optional 4G connectivity, providing real-time performance insights and remote firmware upgrades. Built-in protections, including anti-islanding, surge protection, and arc fault detection, enhance system safety and reliability.
With a durable IP65-rated enclosure, fanless design for silent operation, and a 10-year standard warranty, the Deye SUN-G03-LV series offers a robust and future-proof solution for modern solar installations aiming for performance, longevity, and smart control.
Specification
Input (Solar/DC Side)
| Max Input Current per MPPT (A) | 25+25 A, 30+30 A |
|---|---|
| Max DC Voltage (V) | 800 V |
| MPPT Voltage Range (V) | 200 ~ 700 V |
| No. of MPPTs | 2 |
Output (AC Side)
| Frequency (Hz) | 50 Hz / 60 Hz |
|---|---|
| Rated AC Current (A) | 26.2 A, 31.5 A, 39.4 A |
| Rated AC Voltage (V) | 220 / 230 V |
| Rated Output Power (kW) | 11 W, 13.2 W, 16.5 W |
DB Specification
| Mounting Type | Wall‑mounted |
|---|---|
| Noise Level (dB) | < 45 dB |
Mechanical Details
| Weight | 28 kg |
|---|---|
| Dimensions | 400 × 520 × 240.5 cm |
| Mounting Type | Wall‑mounted |
Smart Features
| Communication Interfaces | RS485, Wifi / Ethernet |
|---|
General
| Cooling Type | Smart forced air cooling |
|---|---|
| Phase | 3/3 |
| Inverter Type | String Inverter |
