Highlights
- Adani DCR Mono PERC Panels
- Sungrow On-Grid Inverter
- 25-Year Panel Warranty
- MNRE Approved System
- Battery Not Required

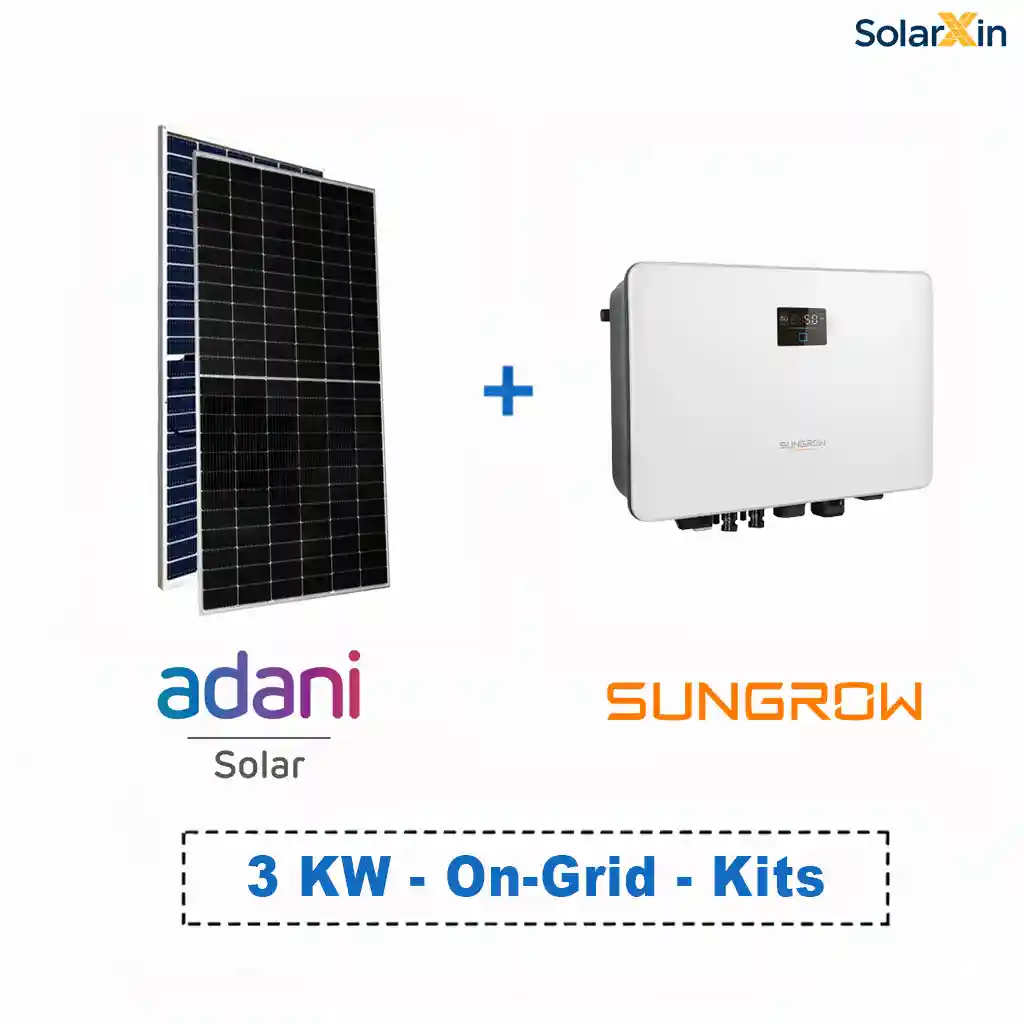

3kW On-Grid Solar Kit – Adani DCR Panels with Sungrow Inverter
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Adani DCR Mono PERC Panels
- Sungrow On-Grid Inverter
- 25-Year Panel Warranty
- MNRE Approved System
- Battery Not Required
Get a Quote
Payment Methods:
Description
The 3kW On-Grid Solar Kit featuring Adani Solar DCR Mono PERC panels and a high-efficiency Sungrow inverter is a smart and reliable solution for homes and small businesses looking to reduce their electricity bills.
This system is designed with MNRE-approved components, ensuring eligibility for government subsidies under residential rooftop schemes. The Adani DCR panels offer superior performance even in low-light conditions, while the Sungrow inverter provides fast MPPT tracking and stable grid connectivity with advanced safety features.
As an on-grid system, it connects directly to your utility grid, allowing you to export surplus power and reduce your energy bills. With no battery requirement, it offers a low-maintenance, cost-effective setup.
Perfect for residential users, this kit includes all major components required for installation (excluding labor), making it a ready-to-deploy package for solar adoption.
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Adani Solar, DCR, Mono PERC | 6 – 8 Panels |
| 2 | Inverter | Sungrow On-Grid String Inverter | 1 Unit |
| 3 | DCDB (DC Distribution Box) | IP65 Enclosure, Fuse, SPD, MCB | 1 Unit |
| 4 | ACDB (AC Distribution Box) | IP65 Enclosure, MCB, SPD, Energy Meter | 1 Unit |
| 5 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 50 – 80 meters |
| 6 | DC Cable (6 sq.mm) | Copper, UV Resistant, Flexible | 10 – 20 meters |
| 7 | AC Cable (Inverter to ACDB) | 3 Core, Copper Armoured | 15 – 20 meters |
| 8 | MC-4 Connectors | Compatible with 4/6 sq.mm Cable | 6 – 8 Pairs |
| 9 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 10 | Earthing Kit (Earth Rod) | GI / Copper, 2m or 3m | 2 Units |
| 11 | Earthing Kit (Earth Chemical) | Chemical Compound for Grounding | 2 Bags |
| 12 | Earthing Kit (Earth Chamber) | Precast Chamber with Cover | 2 Units |
| 13 | Earthing Cables | Green PVC Insulated Copper Wire | 20 – 30 meters |
| 14 | Lugs | Copper, Crimp Type | As Required |
| 15 | Nut Bolts | Stainless Steel, Anti-rust | As Required |
| 16 | Cable Ties (6 inch) | Nylon, UV Resistant | 100 pcs |
| 17 | Cable Ties (12 inch) | Nylon, UV Resistant | 50 pcs |
| 18 | PU Foam | Weatherproof Sealant | 1 – 2 Cans |
| 19 | Insulation Tape | ISI Marked, Electrical Grade | 5 Rolls |
| 20 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 15 – 25 meters |
Kit Specifications
| Kit Type |
3kW On-Grid Solar Kit – Adani DCR Panels |
|---|---|
| System Capacity |
3 kW |
| Panel Type |
DCR Monocrystalline PERC |
| No. of Panels |
6–8 Panels (Based on wattage) |
| Panel Brand |
Adani Solar |
| Inverter Type |
On-Grid (String Inverter) |
| Inverter Brand |
Sungrow |
| Battery Included |
No |
| Battery Type |
~ |
| Warranty - Panels |
25 Years |
| Warranty - Inverter |
5 Years |
| MNRE Approved |
Yes |
| Subsidy Eligible |
Yes (for residential under DCR) |
