Highlights
- Solex DCR Mono PERC Panels
- Growatt On-Grid Inverter
- MNRE Approved Components
- 25-Year Panel Warranty

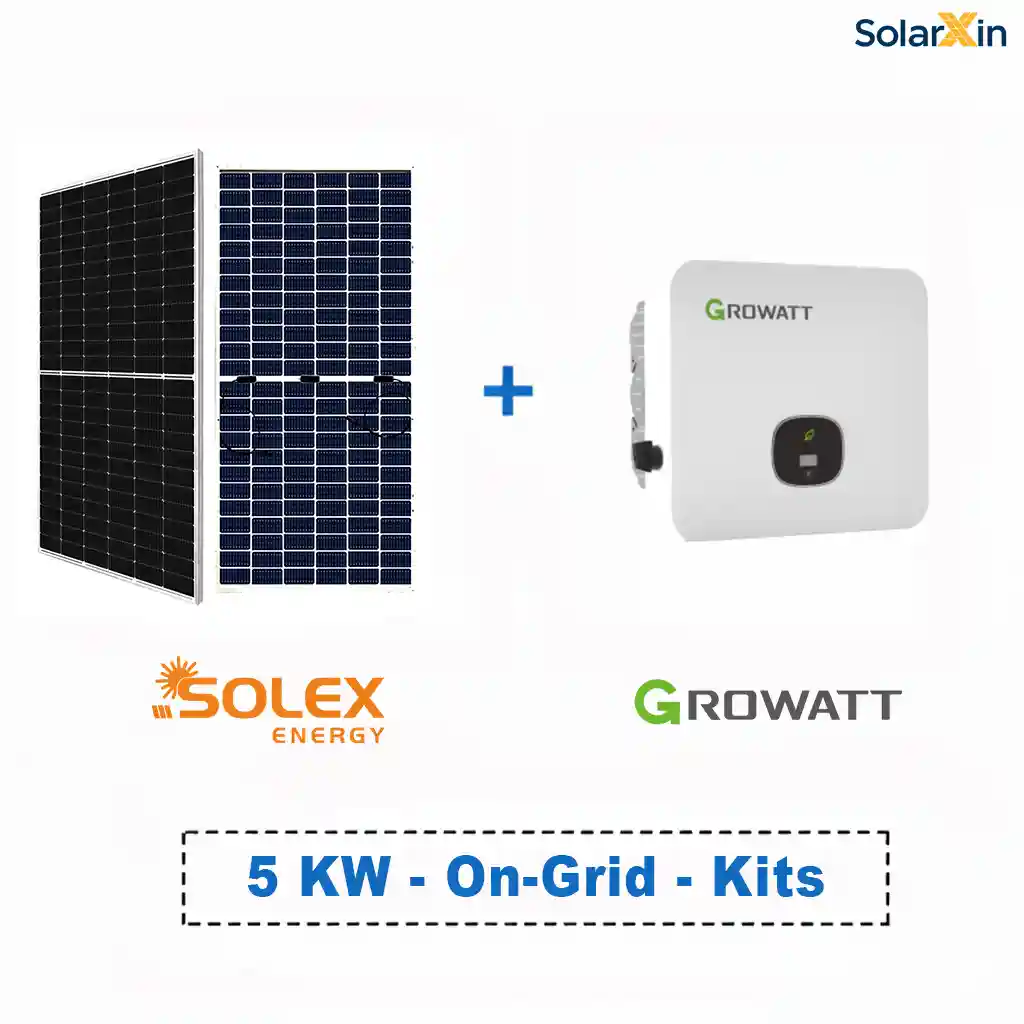

5kW On-Grid Solar Kit – Solex DCR Panels with Growatt Inverter
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Solex DCR Mono PERC Panels
- Growatt On-Grid Inverter
- MNRE Approved Components
- 25-Year Panel Warranty
Get a Quote
Payment Methods:
Description
The 3kW On-Grid Solar Kit featuring Adani Solar DCR Mono PERC panels and a high-efficiency Sungrow inverter is a smart and reliable solution for homes and small businesses looking to reduce their electricity bills.
The 5kW On-Grid Solar Kit with Solex DCR Mono PERC panels and a high-performance Growatt inverter is the ideal choice for households and small businesses aiming for energy independence and lower electricity bills.
This system uses Solex Energy’s high-efficiency DCR modules, fully compliant with MNRE’s domestic content requirement, making it eligible for residential subsidy schemes. The Growatt on-grid inverter is globally recognized for its smart MPPT tracking, real-time monitoring, and built-in protections, ensuring reliability and safety in Indian conditions.
With no batteries needed, this on-grid solution connects directly to the electricity grid, enabling you to export excess energy and earn credits via net metering. The kit is plug-and-play ready with all essential components (excluding installation), simplifying the transition to solar energy.
Whether for a home, office, or commercial roof, this 5kW solar package delivers long-term performance and value with minimum maintenance.
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Solex Energy, DCR, Mono PERC | 9 – 12 Panels |
| 2 | Inverter | Growatt On-Grid String Inverter | 1 Unit |
| 3 | DCDB (DC Distribution Box) | IP65 Enclosure, Fuse, SPD, MCB | 1 Unit |
| 4 | ACDB (AC Distribution Box) | IP65 Enclosure, MCB, SPD, Energy Meter | 1 Unit |
| 5 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 100 – 150 meters |
| 6 | DC Cable (6 sq.mm) | Copper, UV Resistant, Flexible | 30 – 50 meters |
| 7 | AC Cable (Inverter to ACDB) | 3 Core, Copper Armoured | 20 – 30 meters |
| 8 | MC-4 Connectors | Compatible with 4/6 sq.mm Cable | 6 – 10 Pairs |
| 9 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 10 | Earthing Kit (Earth Rod) | GI / Copper, 2m or 3m | 3 Units |
| 11 | Earthing Kit (Earth Chemical) | Chemical Compound for Grounding | 3 Bags |
| 12 | Earthing Kit (Earth Chamber) | Precast Chamber with Cover | 3 Units |
| 13 | Earthing Cables | Green PVC Insulated Copper Wire | 30 – 50 meters |
| 14 | Lugs | Copper, Crimp Type | As Required |
| 15 | Nut Bolts | Stainless Steel, Anti-rust | As Required |
| 16 | Cable Ties (6 inch) | Nylon, UV Resistant | 100 pcs |
| 17 | Cable Ties (12 inch) | Nylon, UV Resistant | 100 pcs |
| 18 | PU Foam | Weatherproof Sealant | 2 – 3 Cans |
| 19 | Insulation Tape | ISI Marked, Electrical Grade | 5 Rolls |
| 20 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 30 – 50 meters |
Kit Specifications
| Kit Type |
5kW On-Grid Solar Kit – Solex DCR Panels |
|---|---|
| System Capacity |
5kW |
| Panel Type |
DCR Monocrystalline PERC |
| No. of Panels |
9–12 Panels (Based on wattage) |
| Panel Brand |
Solex Energy |
| Inverter Type |
On-Grid (String Inverter) |
| Inverter Brand |
Growatt |
| Battery Included |
No |
| Battery Type |
~ |
| Warranty - Panels |
25 Years |
| Warranty - Inverter |
5 Years |
| MNRE Approved |
Yes |
| Subsidy Eligible |
Yes (for residential under DCR) |
