Highlights
- Goldi Solar Mono PERC Panels (10× 540–550 W)
- Growatt SPF 5000 Off-Grid Inverter
- Loom Solar CAML 48V 5 kWh ×2 Batteries
- Smart Backup for Essentials + Appliances
- Ideal for Homes, Shops & Rural Areas

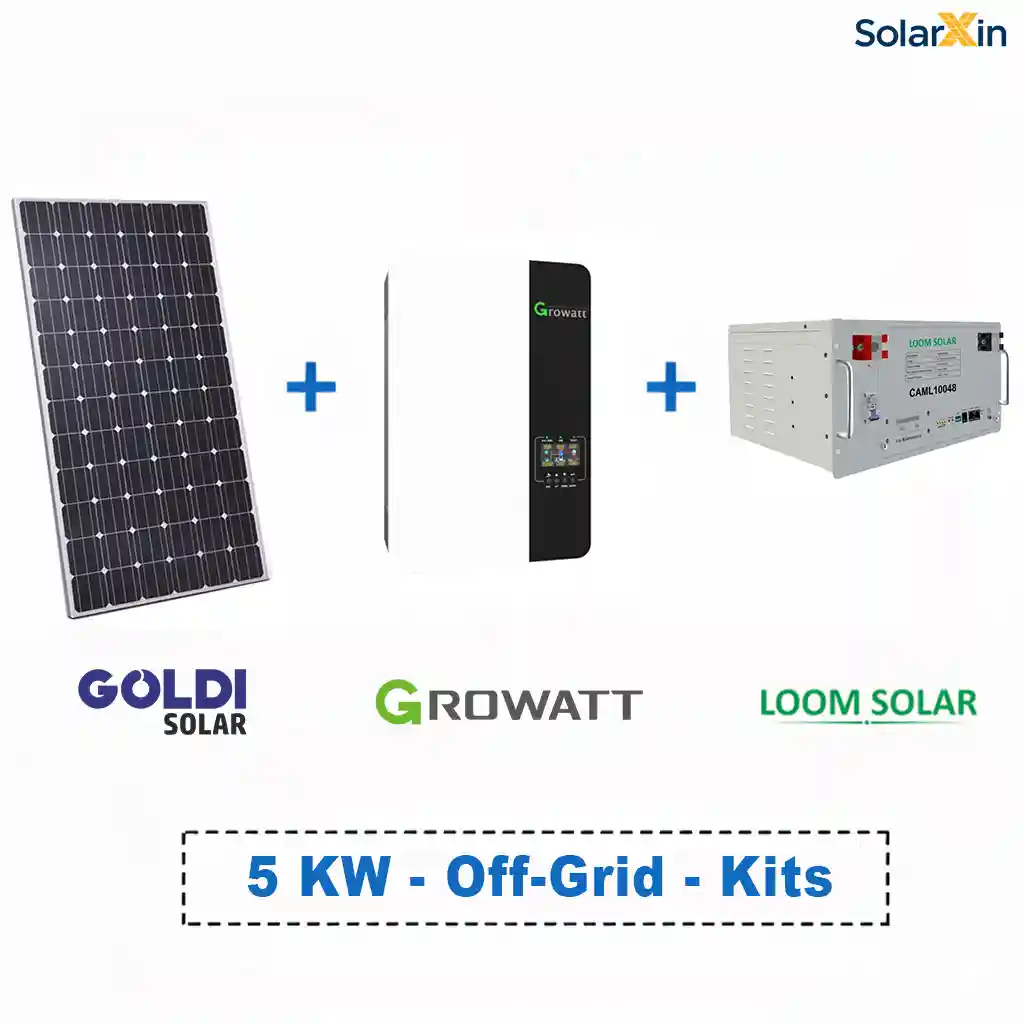

5kW Off-Grid Solar Kit – Goldi Solar Panels, Growatt Inverter, Loom Solar Lithium Battery Backup
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Goldi Solar Mono PERC Panels (10× 540–550 W)
- Growatt SPF 5000 Off-Grid Inverter
- Loom Solar CAML 48V 5 kWh ×2 Batteries
- Smart Backup for Essentials + Appliances
- Ideal for Homes, Shops & Rural Areas
Get a Quote
Payment Methods:
Description
The 5kW Off-Grid Solar Kit is a powerful and compact energy solution designed for grid-independent operation. It includes Goldi Solar’s high-efficiency mono PERC panels (10 units of 540–550 W), a Growatt SPF 5000 off-grid inverter, and 2× Loom Solar CAML 48V 5 kWh LiFePO₄ batteries, offering a total of 10 kWh of energy storage.
Goldi Solar panels deliver excellent performance even in low light and high temperatures — ideal for Indian rooftops. The Growatt SPF inverter integrates MPPT charge controller, battery charging, and pure sine wave AC output, supporting solar + battery + optional DG input.
Loom Solar CAML batteries are advanced LiFePO₄ (Lithium Iron Phosphate) units offering long life, faster charging, deep discharge support, and compact design. The 10 kWh capacity is suitable for running lights, fans, fridge, TV, washing machine, and similar loads for several hours.
This complete off-grid kit is perfect for homes, farmhouses, shops, or remote installations where reliable power and backup are essential.
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Goldi Solar Mono PERC, 540–550 Wp | 10 Panels |
| 2 | Inverter | Growatt SPF 5000 ES, 5kW, Off-Grid Inverter | 1 Unit |
| 3 | Battery | Loom Solar CAML 48V, 5 kWh (LiFePO₄) | 2 Units (10 kWh) |
| 4 | DCDB (DC Distribution Box) | IP65 Enclosure, MCB, Fuse, SPD | 1 Unit |
| 5 | ACDB (AC Distribution Box) | IP65, MCB with Energy Meter | 1 Unit |
| 6 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 60 – 80 meters |
| 7 | DC Cable (6 sq.mm) | Copper, UV Resistant, Flexible | 20 – 30 meters |
| 8 | AC Cable (Inverter to ACDB) | 3 Core Copper Cable | 20 – 30 meters |
| 9 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 20 – 30 meters |
| 10 | MC-4 Connectors | Weatherproof, 1000V Compatible | 10 – 12 Pairs |
| 11 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 12 | Earthing Kit (Earth Rod) | GI or Copper, 2m–3m | 3 Units |
| 13 | Earthing Kit (Chemical) | Ground Enhancing Compound | 3 Bags |
| 14 | Earthing Kit (Chamber) | Cement Chamber with Lid | 3 Units |
| 15 | Earthing Cables | Green PVC Insulated Copper Wire, 10 sq.mm | 30 – 50 meters |
| 16 | Lugs | Copper, Crimp Type | As Required |
| 17 | Nut Bolts | Stainless Steel, Anti-Rust | As Required |
| 18 | Cable Ties (6 inch) | Nylon, UV Resistant | 100 pcs |
| 19 | Cable Ties (12 inch) | Nylon, UV Resistant | 50 pcs |
| 20 | PU Foam | Weatherproof Sealant | 2 – 3 Cans |
| 21 | Insulation Tape | ISI Marked, Electrical Grade | 5 Rolls |
Kit Specifications
| Kit Type |
5kW Off-Grid Solar Kit – Goldi Solar Panels |
|---|---|
| System Capacity |
5kW |
| Panel Type |
Monocrystalline PERC |
| No. of Panels |
9–12 Panels (Based on wattage) |
| Panel Brand |
Goldi Solar |
| Inverter Type |
Off-Grid / Hybrid Inverter |
| Inverter Brand |
Growatt |
| Battery Included |
Yes |
| Battery Type |
Loom Solar CAML, LiFePO₄, 48V 5 kWh ×2 (10 kWh) |
| Warranty - Panels |
25 Years |
| Warranty - Inverter |
5 Years |
| MNRE Approved |
Yes |
| Subsidy Eligible |
No |
