Highlights
- Panasonic Mono PERC Panels (~540–550 W)
- Deye 3-Phase Off-Grid Inverter (5/8/10kW)
- Dyness Tower Lithium Battery (~10 kWh)
- Full Backup Without Grid Supply
- Ideal for Homes & Commercial Use

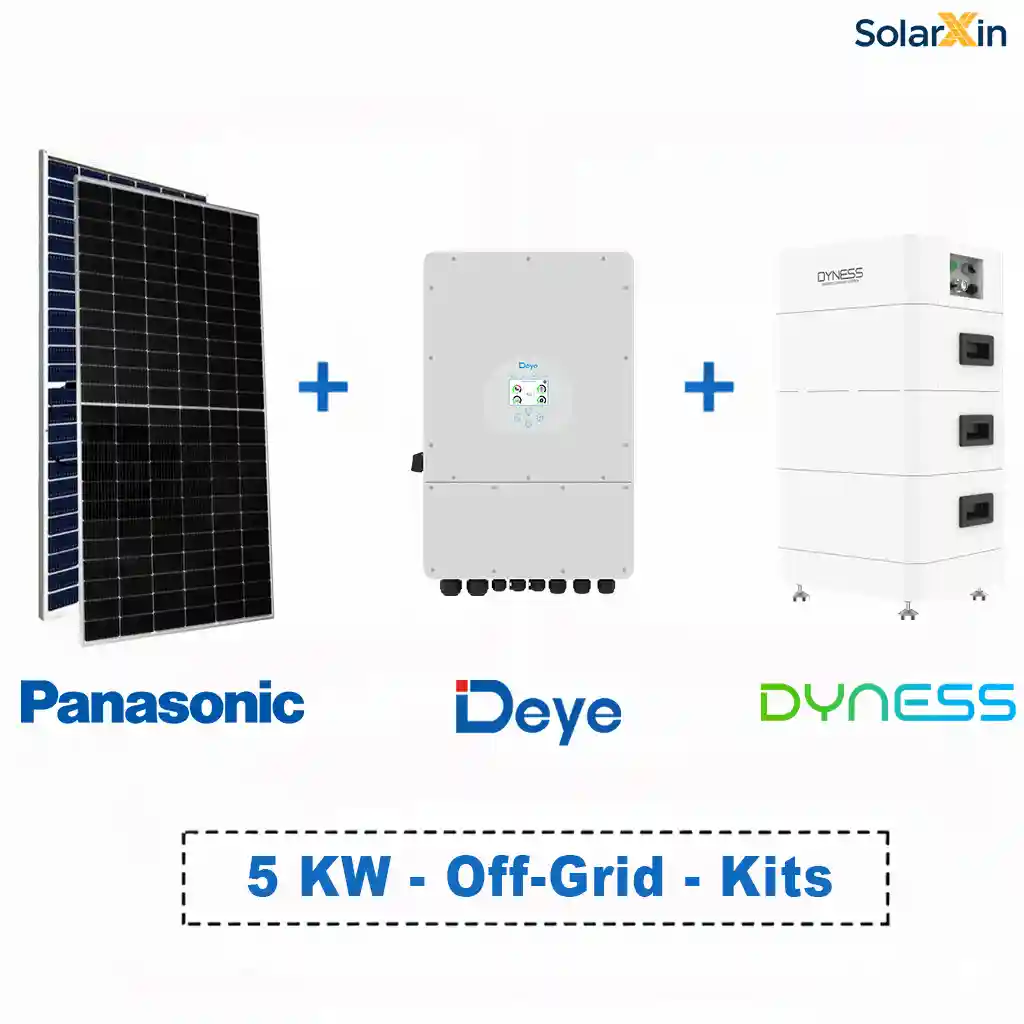

5kW Off-Grid Solar Kit – Panasonic Panels, Deye 3-Phase Inverter, Dyness Tower Lithium Battery
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Panasonic Mono PERC Panels (~540–550 W)
- Deye 3-Phase Off-Grid Inverter (5/8/10kW)
- Dyness Tower Lithium Battery (~10 kWh)
- Full Backup Without Grid Supply
- Ideal for Homes & Commercial Use
Get a Quote
Payment Methods:
Description
The 5kW Off-Grid Solar Kit is an advanced power solution ideal for users seeking complete independence from the power grid. It includes Panasonic’s high-performance monocrystalline PERC panels (~540–550 W, 9–10 units), a powerful Deye 3-phase off-grid inverter (5/8/10 kW), and a modular Dyness Tower lithium battery (~10 kWh) for long-duration energy storage.
Panasonic solar modules are globally trusted for high output, reliability, and long life. The Deye inverter supports multi-source input (solar, battery, DG), has dual MPPTs, smart load control, and can manage heavy and sensitive appliances efficiently.
The Dyness Tower lithium battery (LiFePO₄) is modular, safe, and designed for long life cycles (>6000 cycles). With ~10 kWh capacity, it stores enough energy to power lights, fans, fridge, TV, and other essential loads during nights or outages.
This kit is ideal for homes, clinics, commercial units, and remote areas with no grid or unstable power supply. It offers clean, reliable energy — anytime, anywhere.
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Panasonic Mono PERC, ~540–550 Wp | 9 – 10 Panels |
| 2 | Inverter | Deye SUN-5/8/10K SG04LP3, 3-Phase Off-Grid | 1 Unit |
| 3 | Battery | Dyness Tower, LiFePO₄, Modular Stack (~10 kWh) | 1 Set (2–3 modules) |
| 4 | DCDB (DC Distribution Box) | IP65, MCB, SPD, Fuses | 1 Unit |
| 5 | ACDB (AC Distribution Box) | IP65, MCB with Energy Meter | 1 Unit |
| 6 | DC Cable (4 sq.mm) | Copper, UV Resistant | 60 – 80 meters |
| 7 | DC Cable (6 sq.mm) | Copper, UV Resistant | 20 – 30 meters |
| 8 | AC Cable (Inverter to ACDB) | 4 Core Copper Armoured Cable (3-phase) | 25 – 35 meters |
| 9 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 20 – 30 meters |
| 10 | MC-4 Connectors | 1000V Compatible, IP67 Rated | 10 – 12 Pairs |
| 11 | Lightning Arrestor | IEC Certified, Conventional Type | 1 Unit |
| 12 | Earthing Kit (Rod) | GI or Copper, 2–3 meters | 3 Units |
| 13 | Earthing Kit (Chemical) | Conductive Grounding Compound | 3 Bags |
| 14 | Earthing Kit (Chamber) | Precast Cement Chamber with Lid | 3 Units |
| 15 | Earthing Cables | 10 sq.mm Green Copper Wire | 30 – 50 meters |
| 16 | Lugs | Copper Crimp Type | As Required |
| 17 | Nut Bolts | Stainless Steel, M8/M10 | As Required |
| 18 | Cable Ties (6 inch) | Nylon, UV Resistant | 100 pcs |
| 19 | Cable Ties (12 inch) | Nylon, UV Resistant | 50 pcs |
| 20 | PU Foam | Weatherproof, Fire Retardant Sealant | 2 – 3 Cans |
| 21 | Insulation Tape | ISI Certified, Electrical Grade | 5 Rolls |
Kit Specifications
| Kit Type |
5kW Off-Grid Solar Kit – Panasonic Panels |
|---|---|
| System Capacity |
5kW |
| Panel Type |
Monocrystalline PERC |
| No. of Panels |
9–12 Panels (Based on wattage) |
| Panel Brand |
Panasonic Solar |
| Inverter Type |
Off-Grid / Hybrid Inverter |
| Inverter Brand |
Deye |
| Battery Included |
Yes |
| Battery Type |
Dyness Tower, LiFePO₄ (~10 kWh) |
| Warranty - Panels |
25 Years |
| Warranty - Inverter |
5 Years |
| MNRE Approved |
Yes |
| Subsidy Eligible |
No |
