Highlights
- 5.12 kWh Capacity
- LiFePO₄ Battery Technology
- Scalable Up To 50
- High Safety BMS
- Smart Monitoring Supported

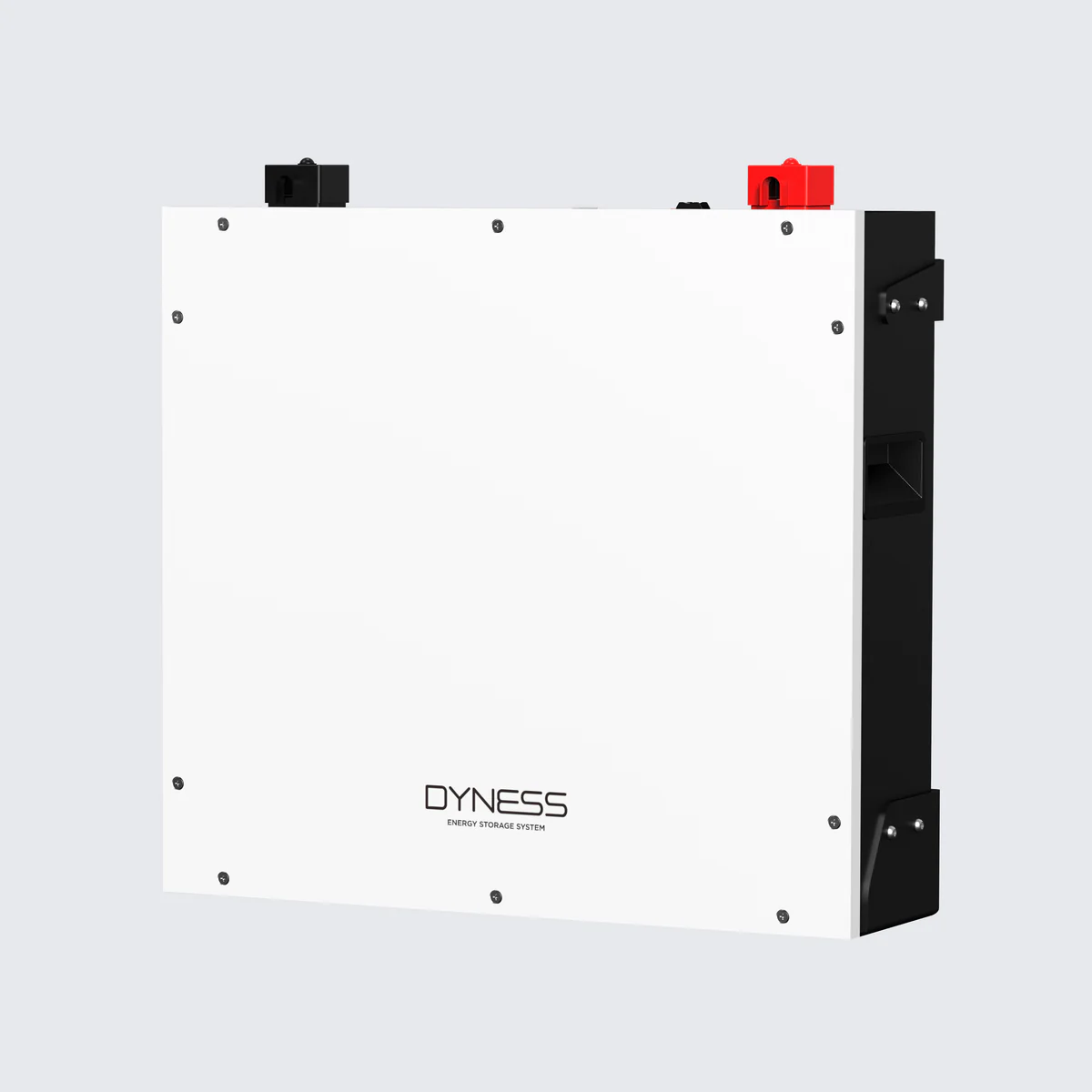

Dyness DL5.0C Lithium Iron Phosphate (LiFePO₄) Battery – 5.12 kWh, Scalable, High-Cycle Life
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- 5.12 kWh Capacity
- LiFePO₄ Battery Technology
- Scalable Up To 50
- High Safety BMS
- Smart Monitoring Supported
Get a Quote
Payment Methods:
Description
The Dyness DL5.0C is a premium LiFePO₄ energy storage battery designed for residential and small commercial solar systems. With a nominal capacity of 5.12 kWh and a nominal voltage of 51.2 V, it delivers reliable, safe, and long-lasting energy storage for various applications.
Featuring an advanced Battery Management System (BMS), the DL5.0C ensures comprehensive protection against overcharge, over-discharge, short-circuits, and over-current situations. This makes it a safe and dependable choice for off-grid, hybrid, or backup power solutions.
The battery is highly scalable, supporting parallel connections of up to 50 units, enabling energy storage expansion up to 256 kWh. Its lightweight and modular design allows flexible installation, including wall-mount, floor-standing, or stacked configurations.
Dyness DL5.0C also supports smart monitoring and communication via RS485 and CAN interfaces, compatible with major inverter brands. This allows real-time monitoring of performance and status, giving users better control over their energy systems.
Specification
Battery Specification
| Battery Capacity |
5.12 kWh |
|---|---|
| Battery Charging Efficiency |
≥95% |
| Battery Cycle Life |
≥8000 |
| Battery Depth of Discharge |
90% DoD |
| Battery Maintenance Requirement |
Low maintenance |
| Battery Safety Features |
over-current protection ,over-discharge ,Overcharge ,short circuit protection ,thermal management |
| Battery Self-Discharge Rate |
< 3% per month |
| Battery Temperature Tolerance |
0 ～ 55℃ |
| Battery Type |
Lithium Iron Phosphate |
| Battery Voltage |
51.2 V |
| Battery Management System |
EV-grade ,protection for cells and modules ,real-time monitoring |
| Battery Environmental Impact |
low carbon footprint ,non-toxic ,recyclable cells ,safe disposal recommended |
Mechanical Details
| Weight | 54 kg |
|---|---|
| Dimensions | 558 × 545 × 150 cm |
