Highlights
- 215 kWh Storage Capacity
- 100 kW Power Output
- IP55 Outdoor Cabinet
- Scalable Modular Design
- Intelligent BMS Control

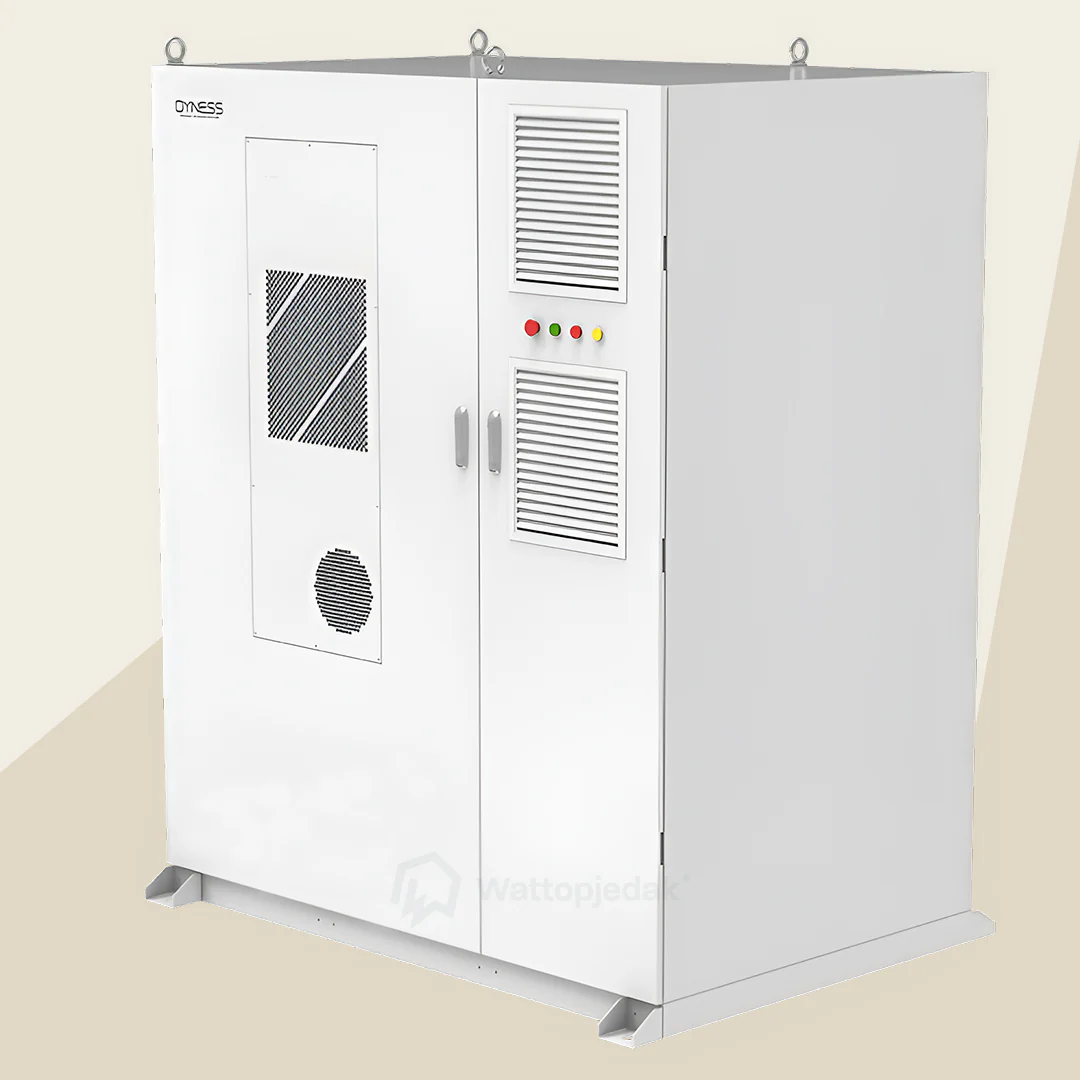

Dyness DH200F All-in-One Commercial ESS (100 kW / 215 kWh) – Outdoor Cabinet, Expandable to 2.58 MWh
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- 215 kWh Storage Capacity
- 100 kW Power Output
- IP55 Outdoor Cabinet
- Scalable Modular Design
- Intelligent BMS Control
Get a Quote
Payment Methods:
Description
The Dyness DH200F represents the next generation of intelligent, modular commercial and industrial energy storage solutions. Designed for reliability, scalability, and safety, it integrates a 100 kW hybrid inverter with a 215 kWh LiFePO₄ battery system into a single outdoor cabinet, offering a powerful all-in-one ESS for medium to large-scale applications.
Engineered for maximum performance and safety, the DH200F uses automotive-grade LiFePO₄ cells known for high thermal stability and long cycle life. The built-in intelligent Battery Management System (BMS) continuously monitors voltage, temperature, and current parameters, ensuring safe and efficient operation in all conditions.
Its IP55-rated enclosure and air-cooled thermal management make it perfectly suited for outdoor environments. The system supports plug-and-play installation, remote monitoring, and modular expansion—up to 12 cabinets in parallel, providing an impressive 2.58 MWh of total energy storage for commercial and industrial power applications.
Whether used for peak shaving, demand response, renewable energy integration, or backup power, the Dyness DH200F delivers unmatched energy reliability, efficiency, and flexibility. Its smart control system and user-friendly interface make energy management easier, more efficient, and more sustainable for businesses.
Specification
Battery Specification
| Battery Capacity |
215 kWh |
|---|---|
| Battery Charging Efficiency |
≥95% |
| Battery Cycle Life |
6,000+ |
| Battery Depth of Discharge |
90% DoD |
| Battery Maintenance Requirement |
Low maintenance |
| Battery Safety Features |
fire suppression ,insulation protection ,over-current protection ,over-discharge ,Overcharge ,short circuit protection |
| Battery Self-Discharge Rate |
< 3% per month |
| Battery Temperature Tolerance |
20~50% |
| Battery Type |
LiFePO4 |
| Battery Voltage |
200 ~ 670Vdc |
| Battery Management System |
CAN/RS485 communication ,cell balancing ,Intelligent modular BMS with multi-level protection ,real-time monitoring |
| Battery Environmental Impact |
non-toxic ,recyclable cells ,recyclable LiFePO₄ chemistry with low carbon footprint |
Mechanical Details
| Weight | 2800 kg |
|---|---|
| Dimensions | 1850 × 1265 × 2250 cm |
