Highlights

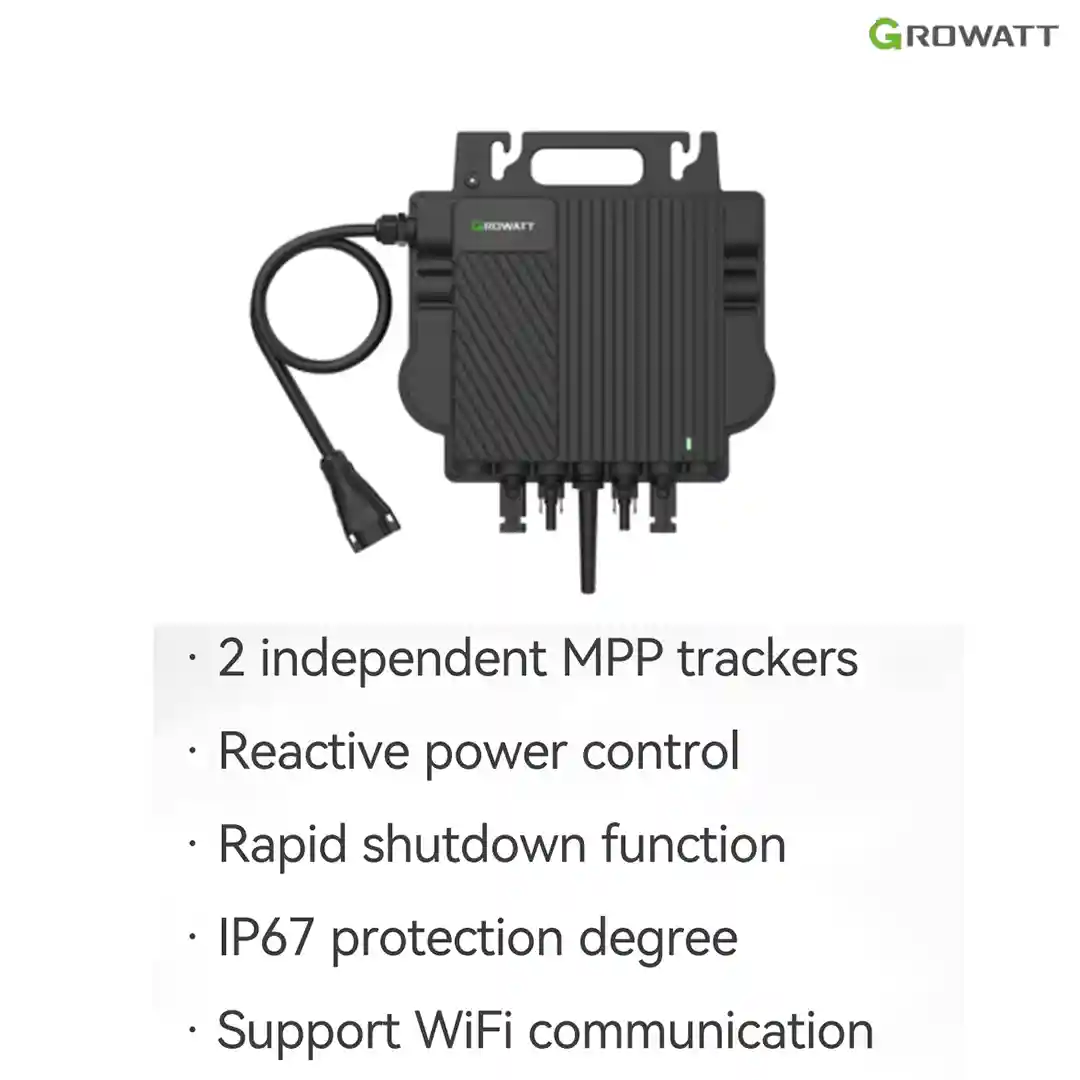

- 2 independent MPP trackers
- Reactive power control
- Rapid shutdown function
- IP67 protection degree
- Support WiFi communication
Growatt NEO 600‑1000M‑X (Wi‑Fi) – High‑Efficiency Micro‑Inverter for Smart Balcony PV
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- 2 independent MPP trackers
- Reactive power control
- Rapid shutdown function
- IP67 protection degree
- Support WiFi communication
Get a Quote
Payment Methods:
Description

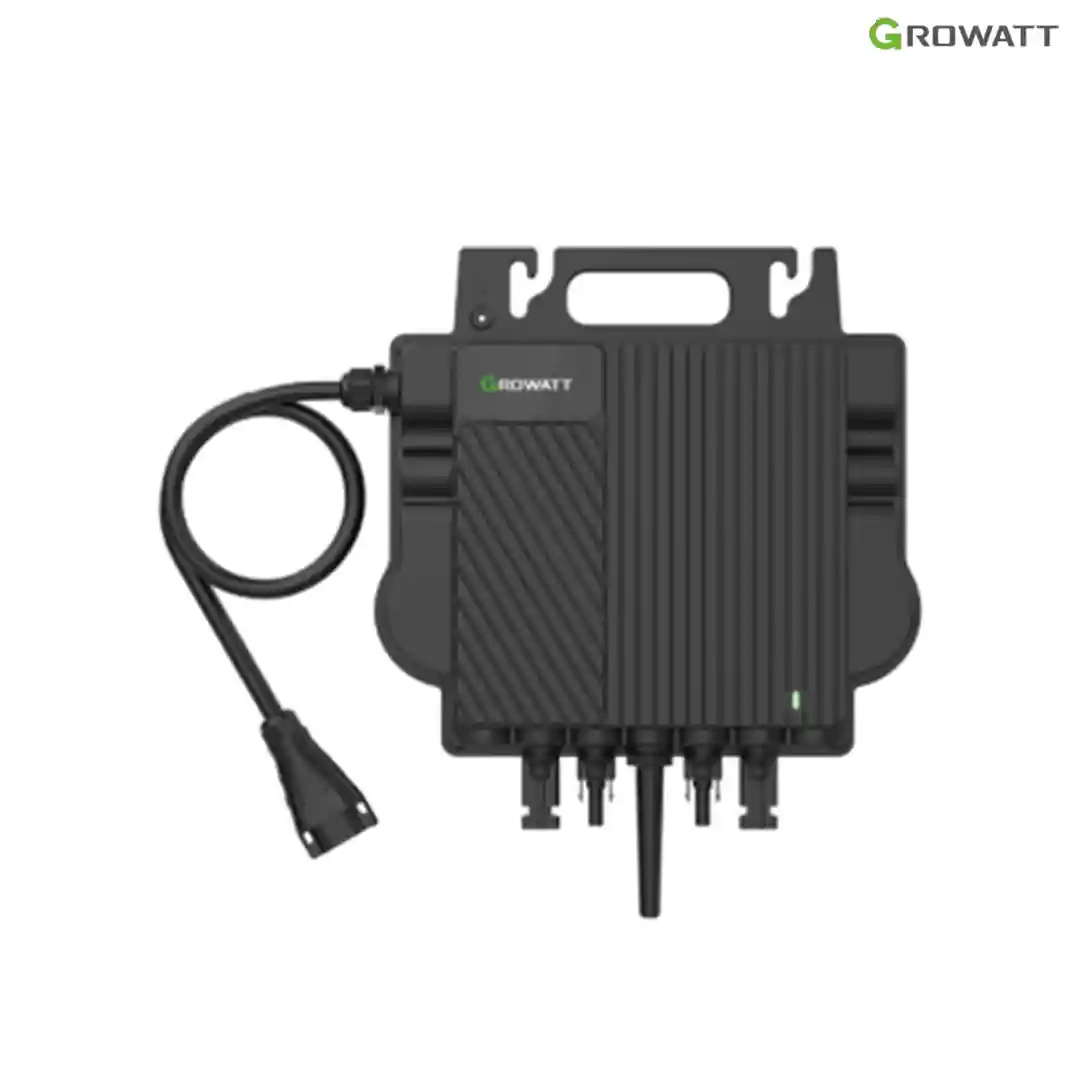

The Growatt NEO 600‑1000M‑X (Wi‑Fi) is a compact and powerful single-phase micro-inverter, perfect for balcony and small-scale PV systems. Its integrated Wi‑Fi module and lightweight design allow easy installation and reliable module-level monitoring, making it ideal for urban environments.
Featuring dual MPPT tracking and a high max efficiency of 97.3%, this inverter delivers optimal energy output even under varied lighting conditions. The 18 A string current capability ensures compatibility with higher-power PV modules, while its reactive power control enhances grid stability.
Built for durability, the NEO micro-inverter boasts an IP67 rating, ensuring full protection against dust and water—perfect for outdoor use. Integrated safety features like Type III AC surge protection, rapid shutdown, and galvanic isolation prioritize both safety and long-term reliability.
With support for Growatt’s ShinePhone and ShineWeLink platforms, this micro-inverter offers seamless remote monitoring, module-level diagnostics, and smart maintenance solutions—all accessible via the app.
Specification
Input (Solar/DC Side)
| Max Input Current per MPPT (A) |
18 A |
|---|---|
| Max DC Voltage (V) |
60 V |
| MPPT Voltage Range (V) |
28 ~ 60 V |
| No. of MPPTs |
2 |
Connector Specification
| Grid Connection |
On-grid ,Single phase |
|---|
Output (AC Side)
| Frequency (Hz) |
50 Hz / 60 Hz |
|---|---|
| Grid Connection |
On-grid ,Single phase |
| Rated AC Current (A) |
2.61 A ,3.48 A ,4.35 A |
| Rated AC Voltage (V) |
220 / 230 V |
| Rated Output Power (kW) |
1000 W ,600 W ,800 W |
DB Specification
| Mounting Type |
Module Mounted |
|---|---|
| Noise Level (dB) |
~ |
Mechanical Details
| Weight | 3.1 kg |
|---|---|
| Dimensions | 270 × 252 × 41.5 cm |
| Mounting Type |
Module Mounted |
Smart Features
| Communication Interfaces |
Wifi / Ethernet |
|---|
General
| Cooling Type |
Natural cooling |
|---|---|
| Max Efficiency (%) |
97.3 % |
| Phase | |
| Inverter Type |
