Highlights
- High Efficiency: 98.80% Max, 98.50% Euro
- 10 MPPTs: Optimized Power Tracking
- Bifacial Support: Up to 30A PV Current
- Cost-Effective: Supports Aluminum Cables, Wi-Fi
- Reliable Design: IP66 Cooling, Monitoring

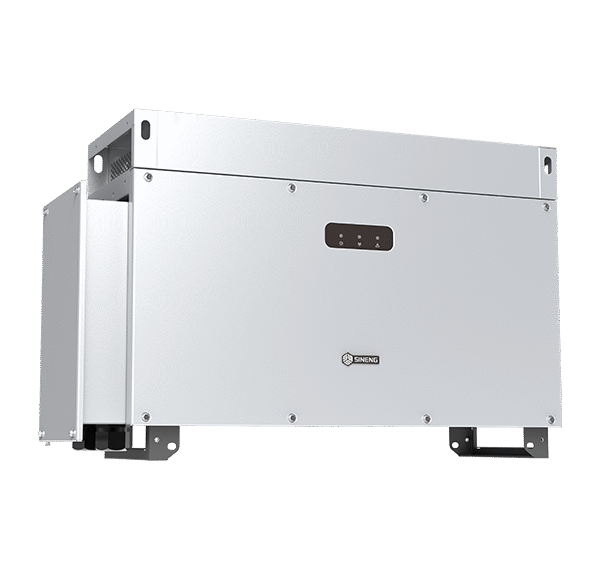

Sineng SP-120K-BL Inverter
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- High Efficiency: 98.80% Max, 98.50% Euro
- 10 MPPTs: Optimized Power Tracking
- Bifacial Support: Up to 30A PV Current
- Cost-Effective: Supports Aluminum Cables, Wi-Fi
- Reliable Design: IP66 Cooling, Monitoring
Get a Quote
Payment Methods:
Description
The Sineng SP-120K-BL is a high-performance 120 kW 3-phase string inverter designed for large-scale commercial and industrial solar installations. Engineered for maximum energy yield, it boasts an impressive 98.80% maximum efficiency and 98.50% Euro efficiency, ensuring optimal power conversion even under varying environmental conditions.
Equipped with 10 MPPTs, the inverter offers precise tracking of maximum power from up to 20 PV strings, accommodating high-power bifacial modules with a maximum MPPT current of 30 A. This feature enhances energy harvesting and system flexibility, making it ideal for diverse solar configurations.
The SP-120K-BL is built for durability and reliability. It features an IP66-rated protection and C5 anti-corrosion rating, integrated string monitoring, and standard connection terminals for quick installation. These design elements contribute to reduced system downtime and lower maintenance costs, ensuring long-term operational efficiency.
Grid compliance is seamlessly achieved with support for active and reactive power control, low harmonic distortion, and rapid response to grid regulation signals. This inverter is a cost-effective solution for maximizing energy output while maintaining grid stability.
Specification
Solar Kit Specification
| Inverter Brand | Sineng Electric |
|---|---|
| Warranty - Inverter | 5 Years |
Input (Solar/DC Side)
| Max Input Current per MPPT (A) | 30 A |
|---|---|
| Max DC Voltage (V) | 1100V |
| MPPT Voltage Range (V) | 200 ~ 1000V |
| No. of MPPTs | 10 |
| Max DC Input Power (kW) | 165 kW |
Connector Specification
| Grid Connection | 3-Phase + Neutral + PE |
|---|
Output (AC Side)
| Frequency (Hz) | 50 Hz / 60 Hz |
|---|---|
| Grid Connection | 3-Phase + Neutral + PE |
| Rated AC Current (A) | 167A |
| Rated AC Voltage (V) | 600V |
| Rated Output Power (kW) | 121kW |
DB Specification
| Mounting Type | Ground-mounted / Skid-mounted |
|---|---|
| Noise Level (dB) | ≤ 60 dB |
Mechanical Details
| Weight | 85 kg |
|---|---|
| Dimensions | 1018 × 630 × 339 cm |
| Mounting Type | Ground-mounted / Skid-mounted |
Smart Features
| Communication Interfaces | Ethernet, RS485, WiFi |
|---|
General
| Cooling Type | Temperature controlled forced air cooling |
|---|---|
| Max Efficiency (%) | 98.7% |
| Phase | 3/3 |
| Inverter Type | 3-Phase Grid-Tied String Inverter |
