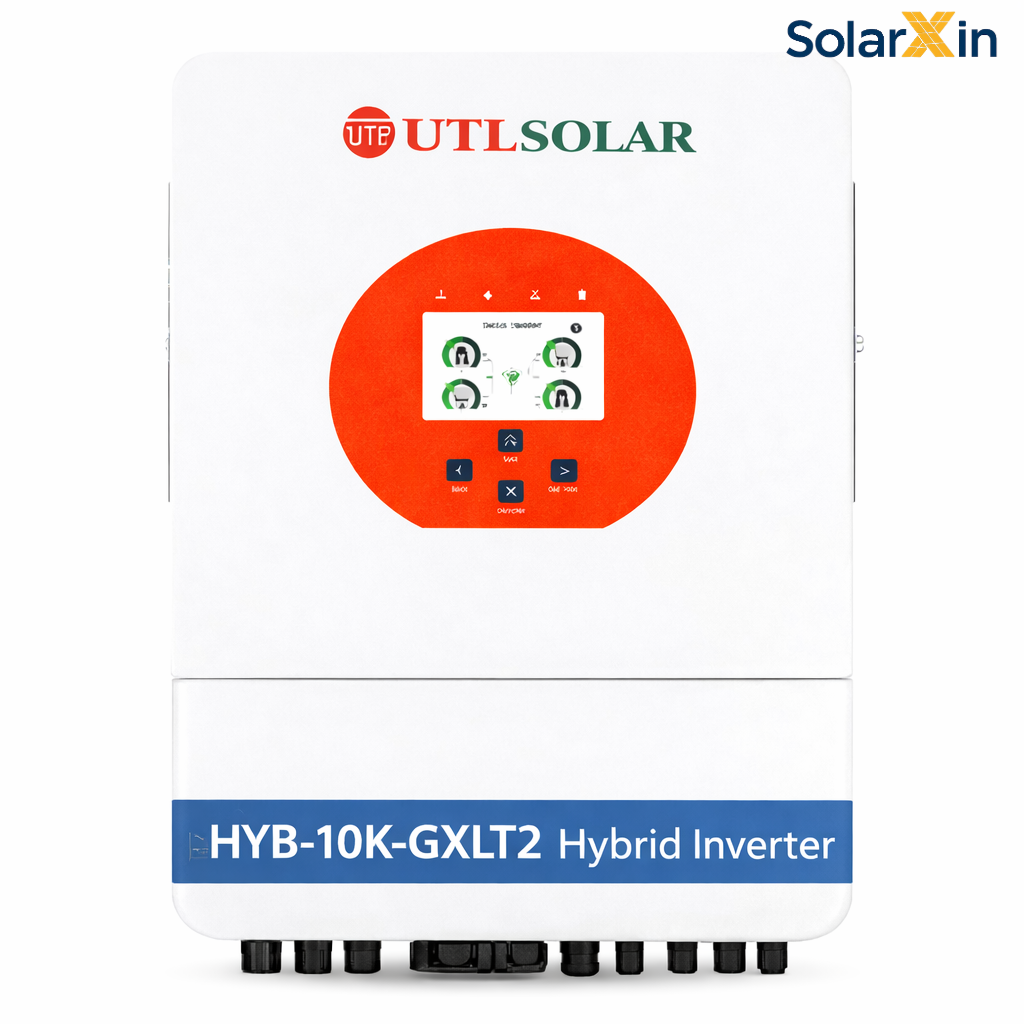

UTL Solar HYB-10K-GXLT2 Hybrid Inverter

SKU: INV00053

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

Original price was: ₹336,380.00.Current price is: ₹249,999.00. Inc. GST

Highlights

  • Hybrid energy control
  • Three-phase output
  • Dual MPPT support
  • Battery backup ready
  • Commercial-grade design
Brand: UTL Solar

Get a Quote

    4 People watching this product now!

    Payment Methods:

    Payment methods

    Description

    The UTL Solar HYB-10K-GXLT2 Hybrid Inverter is a high-capacity energy solution designed for commercial buildings, apartments, institutions, and large residential solar installations. It intelligently combines solar power, battery storage, and grid electricity to deliver reliable and optimized energy management.

    Built with advanced hybrid inverter technology and dual MPPT support, the inverter maximizes solar power generation even under varying sunlight and partial shading conditions. Excess solar energy can be stored in batteries for backup power during outages or used during peak demand hours, significantly reducing grid dependency.

    The inverter delivers stable, pure sine wave three-phase output, ensuring safe operation for sensitive equipment and high-load appliances. Comprehensive protection features such as anti-islanding, overload, short-circuit, thermal, and battery protection ensure long-term safety and system reliability.

    Backed by UTL Solar robust engineering and weather-resistant design, the HYB-10K-GXLT2 offers a scalable, efficient, and future-ready hybrid solar power solution for demanding energy needs.

    Specification

    Solar Kit Specification

    Inverter BrandFujiyama

    Input (Solar/DC Side)

    Max DC Voltage (V)1000 V
    Max DC Input Power (kW)13 kW
    MPPT Voltage Range (V)200 ~ 850 V
    No. of MPPTs2

    Connector Specification

    Grid ConnectionYes (Hybrid: Grid + Battery + Solar)

    Output (AC Side)

    Frequency (Hz)50 Hz
    Grid ConnectionYes (Hybrid: Grid + Battery + Solar)
    Rated AC Current (A)15 A
    Rated Output Power (kW)10 kW
    Rated AC Voltage (V)415 V AC

    DB Specification

    Mounting TypeWall‑mounted
    Noise Level (dB)< 45 dB

    Mechanical Details

    Mounting TypeWall‑mounted

    Smart Features

    Communication InterfacesCAN, RS485, WiFi

    General

    Cooling TypeSmart forced air cooling
    Max Efficiency (%)98.00%
    Phase
    Inverter Type
