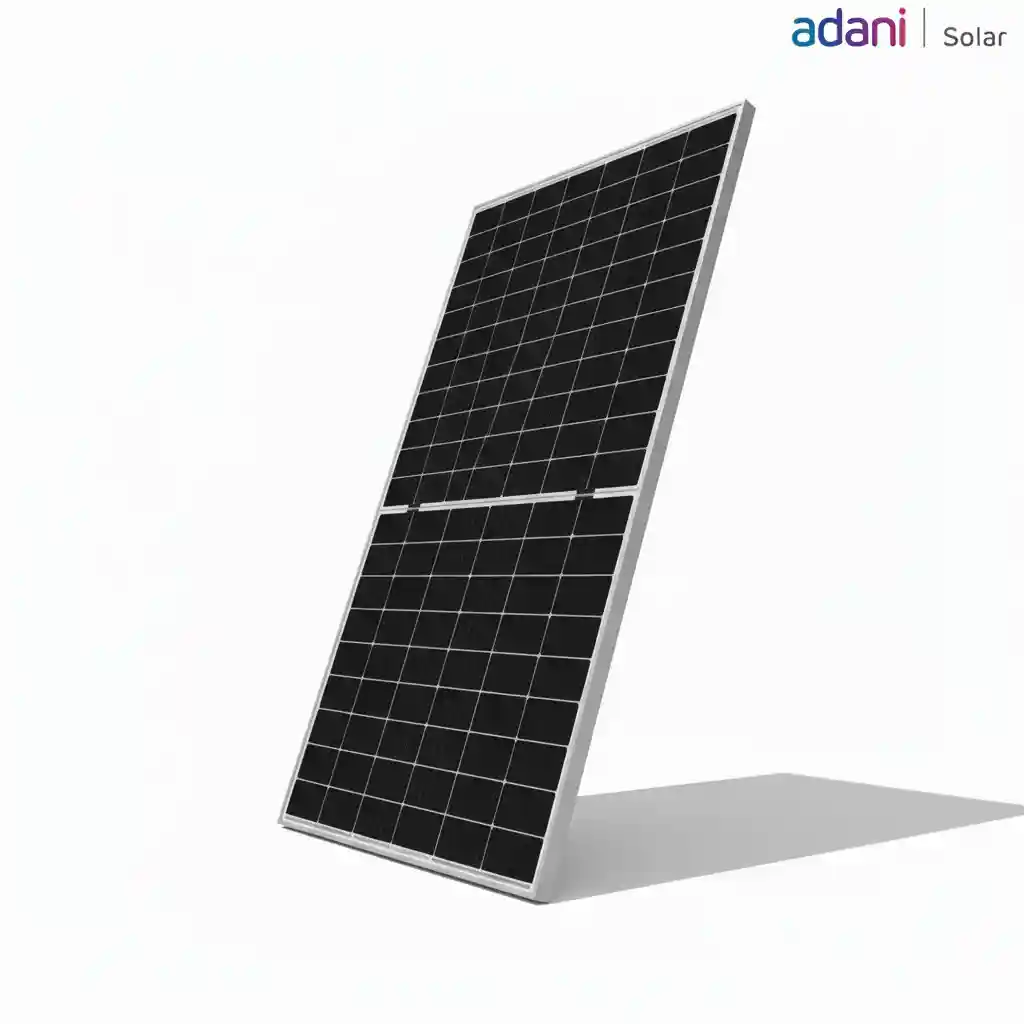

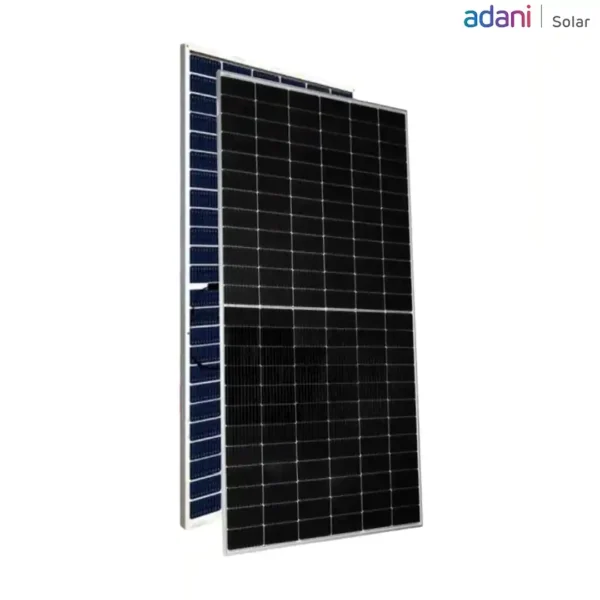

ELAN SHINE Series – Bifacial PV Modules with Transparent Backsheet (520-550 Wp) l Adani

SKU: SP00010

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

Highlights

  • Bifacial generation boost
  • Transparent backsheet design
  • 520–550Wp output
  • Half-cut PERC cells
  • 25-year performance
Brand: Adani

Get a Quote

    2 People watching this product now!

    Payment Methods:

    Payment methods

    Description

    The ELAN SHINE Series (520–550 Wp) from Adani Solar represents a premium range of bifacial photovoltaic modules designed to deliver higher energy yield, increased efficiency, and superior long-term performance. Equipped with a transparent backsheet, these modules allow rear-side light absorption, delivering additional power generation compared to traditional monofacial panels. This makes them an excellent choice for rooftop, commercial, industrial, and large-scale solar plant applications.

    Built using advanced M10 mono PERC half-cut cells, the modules ensure reduced resistive losses, enhanced shade tolerance, and improved temperature performance. The bifacial technology boosts overall kWh generation, especially when installed on reflective surfaces such as white rooftops, cement floors, or elevated structures. Their robust construction and enhanced mechanical strength enable them to withstand harsh climates, making them ideal for Indian weather conditions.

    With a power class of 520–550Wp, these modules provide high conversion efficiency that reduces the required installation area and improves project ROI. The transparent backsheet design not only reduces module weight compared to dual-glass bifacial panels but also maintains higher durability, UV resistance, and greater long-term reliability. This results in better handling, easier installation, and stable long-term output.

    Manufactured under stringent Adani Solar quality standards, the ELAN SHINE Series undergoes extensive testing for PID resistance, micro-crack durability, and long-term environmental stress. Backed by a 25-year performance warranty and state-of-the-art manufacturing technology, these modules deliver outstanding value for EPCs, developers, MSMEs, and large enterprises looking for consistent energy generation with advanced bifacial capability.

    Specification

    Electrical Specifications

    Bifaciality Factor (%)

    ~70 ± 5%

    Maximum Power Current (Imp)

    13.1 ~ 13.4 A

    Maximum Power Voltage (Vmp)

    41.18 ~ 42.09

    Maximum System Voltage (V)

    1500 V DC

    Rear Side Gain (%)

    10 ~ 25 %

    Short Circuit Current (Isc)

    13.41 ~ 13.85

    Temperature Coefficient

    -0.35 % / °C

    Connector Specification

    Cables & Connectors

    UV-resistant cables

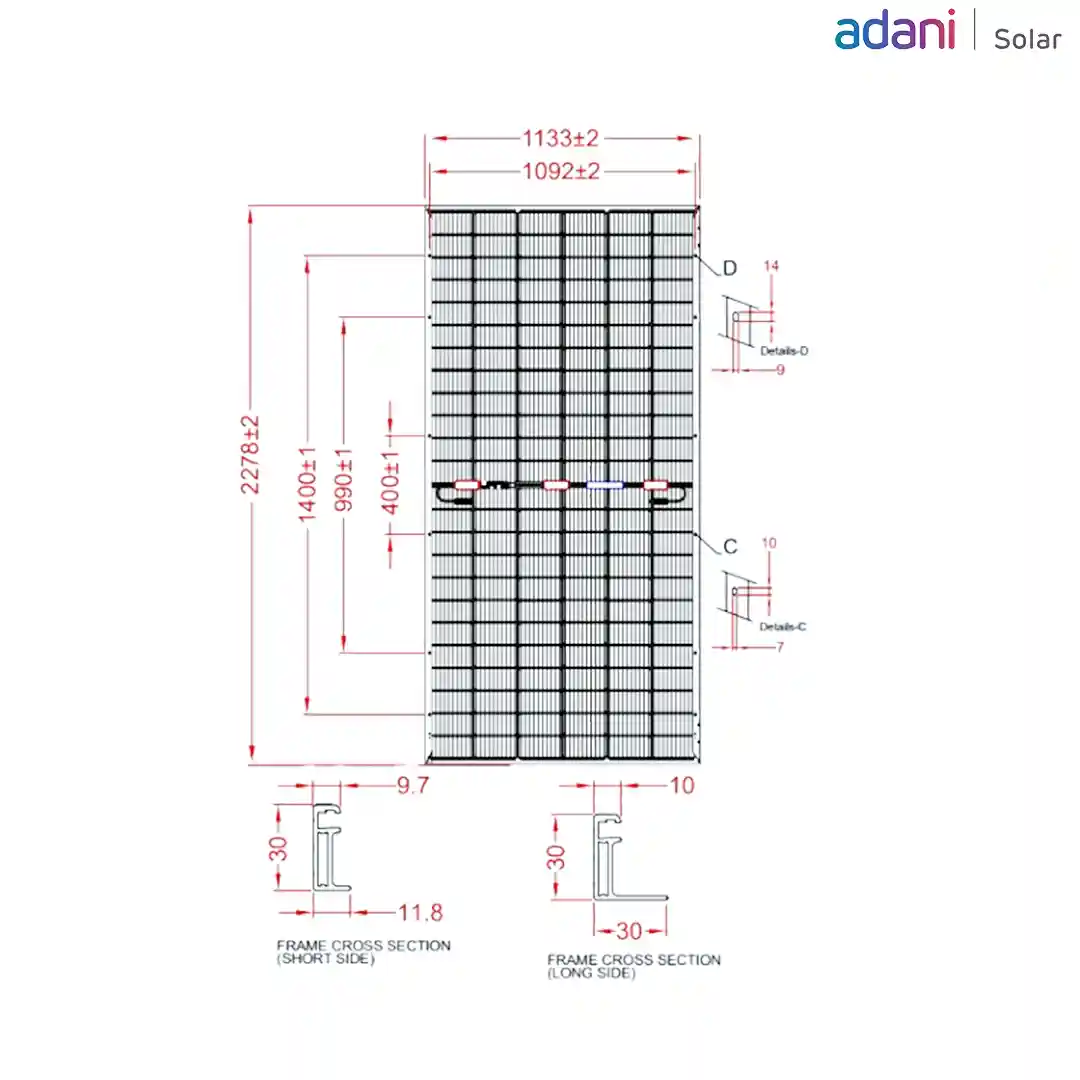

    Mechanical Details

    Weight 28 kg
    Dimensions 2278 × 1133 × 30 cm
    Cables & Connectors

    UV-resistant cables

    Frame Material

    Anodized aluminum

    Glass Type

    High-transmittance tempered glass

    Junction Box Rating

    IP68

    Mechanical Load Capacity

    5400 Pa (front) / 2400 Pa (rear)

    General

    Cell Type

    Efficiency (%)

    No. of Cells

    144

    Panel Type

    ,
