Highlights
- Bifacial energy gain
- 520–550Wp output
- PERC half-cut cells
- High efficiency module
- 25-year warranty

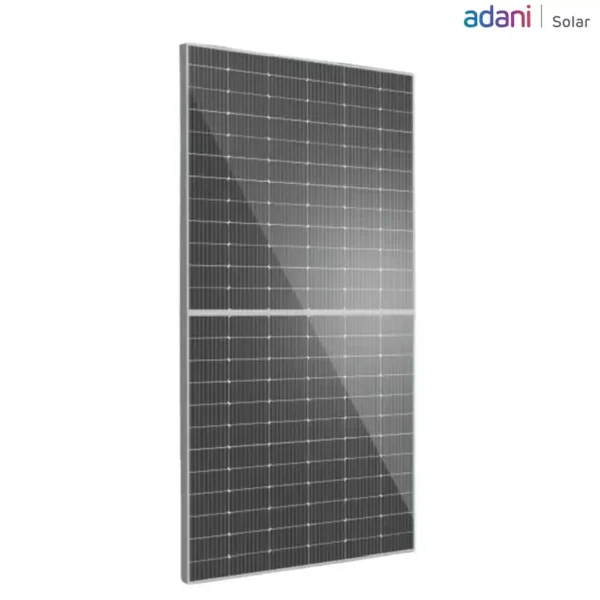

ELAN SHINE Series Bifacial PERC half-cut module (520–550 wp) | Adani
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
₹9,500.00 – ₹9,700.00Price range: ₹9,500.00 through ₹9,700.00 Inc. GST
Highlights
- Bifacial energy gain
- 520–550Wp output
- PERC half-cut cells
- High efficiency module
- 25-year warranty
Get a Quote
Payment Methods:
Description
The ELAN SHINE Series (520–550 Wp) from Adani Solar is a high-performance bifacial module designed to deliver exceptional energy output with cutting-edge PERC half-cut cell technology. Built for both rooftop and utility-scale solar installations, this module achieves higher kWh generation by capturing light from both front and rear surfaces. The bifacial effect enhances overall system efficiency, making it ideal for customers who want maximum return on investment from limited installation space.
Powered by PERC (Passivated Emitter Rear Cell) technology, the module boosts conversion efficiency, improves low-light performance, and reduces resistive losses. The half-cut M10 cells significantly improve heat distribution, reduce hotspot risks, and enhance long-term reliability. When installed on reflective surfaces or elevated structures, the rear-side gain increases total power generation, making it a strong choice for commercial and industrial projects.
The module’s durable frame, strong mechanical load resistance, and advanced encapsulation materials ensure long-term stability in challenging weather conditions, including high temperatures, humidity, and dust-heavy environments. It delivers consistent performance across all climates, making it suitable for installations across India. With improved PID resistance and optimized temperature coefficients, the module maintains strong output throughout the day.
Manufactured with Adani’s global-quality standards and advanced production technologies, the ELAN SHINE Bifacial PERC Series guarantees high energy yield backed by robust performance warranties. It is a preferred choice for EPCs, developers, and businesses seeking a modern, high-efficiency solar module that blends advanced bifacial technology with reliability and long-term durability.
Specification
Electrical Specifications
| Bifaciality Factor (%) | 70 ± 5 % |
|---|---|
| Maximum Power Current (Imp) | 13.1 ~ 13.4 A |
| Maximum Power Voltage (Vmp) | 39.5 ~ 41.2 V |
| Maximum System Voltage (V) | 1500 V DC |
| Open Circuit Voltage (Voc) | 47.5 ~ 49.2 V |
| Rear Side Gain (%) | 10 ~ 25 % |
| Short Circuit Current (Isc) | 13.9 ~ 14.4 A |
| Temperature Coefficient | -0.35 % / °C |
Connector Specification
| Cables & Connectors | UV-resistant cables |
|---|
Mechanical Details
| Weight | 28 kg |
|---|---|
| Dimensions | 2266 × 1133 × 35 cm |
| Cables & Connectors | UV-resistant cables |
| Frame Material | Anodized aluminum |
| Glass Type | High-transmittance tempered glass |
| Junction Box Rating | IP68 |
| Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
