Highlights

  • Dual-glass durability
  • Bifacial high output
  • Half-cut M10 cells
  • Low degradation rate
  • 25-year performance
Brand: Adani

ELAN SHINE Series Bifacial PV Modules with Dual Glass | Adani

SKU: SP00008

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

Highlights

  • Dual-glass durability
  • Bifacial high output
  • Half-cut M10 cells
  • Low degradation rate
  • 25-year performance
Brand: Adani

Get a Quote

    10 People watching this product now!

    Payment Methods:

    Payment methods

    Description

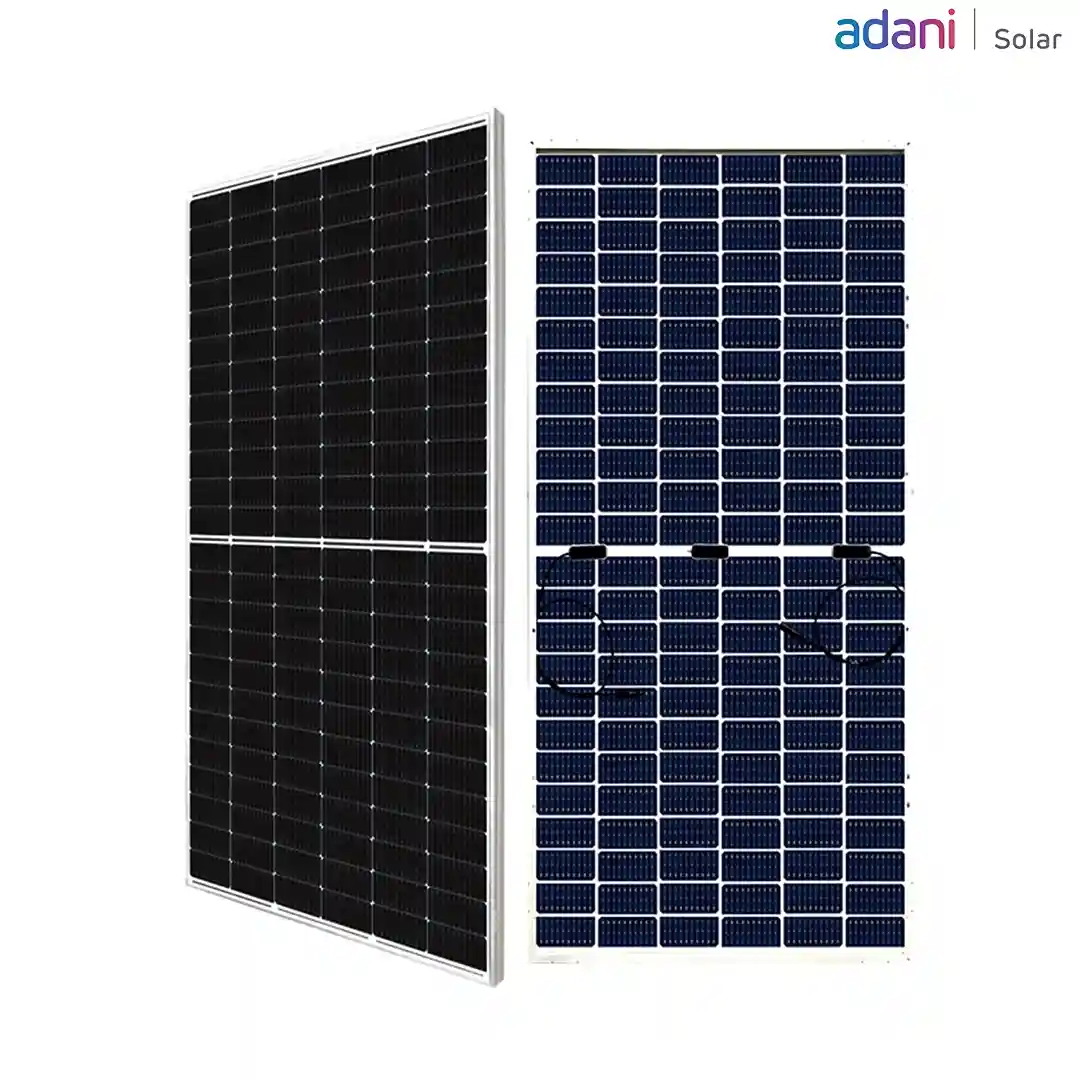

    The ELAN SHINE Series Bifacial Dual-Glass PV Modules from Adani Solar are engineered for maximum efficiency, superior durability, and long-term energy generation. Designed with advanced bifacial cell architecture, these modules capture sunlight from both the front and rear sides, significantly increasing total power output. The dual-glass design provides exceptional protection and stability, making them ideal for high-performance commercial, industrial, and utility-scale solar projects.

    Constructed using Mono PERC half-cut M10 cells, these modules deliver improved electrical conductivity, lower resistive losses, and enhanced shade tolerance. The half-cut cell technology ensures better thermal performance and higher reliability under varying climatic conditions. Whether installed on rooftops, elevated structures, or tracker-based systems, the bifacial effect boosts overall energy generation and maximizes ROI throughout the project’s lifecycle.

    The dual-glass build replaces the traditional polymer backsheet with tempered glass on both sides, increasing mechanical strength, moisture resistance, and fire safety. This design significantly reduces degradation rates, ensuring stable and consistent performance for 25+ years. With strong resistance to PID, micro-cracks, and environmental stress, these panels are built to withstand extreme temperatures, dust, humidity, and heavy wind loads.

    Backed by Adani’s trusted manufacturing excellence and international certifications, the ELAN SHINE Dual-Glass modules offer reliable long-term performance with high module efficiency and extended warranty support. They are a preferred choice for EPC contractors, solar developers, and enterprises looking to invest in durable, high-output solar technology that ensures consistent energy generation year after year.

    Specification

    Electrical Specifications

    Bifaciality Factor (%)

    ~70 ± 5%

    Maximum Power Current (Imp)

    13.6 ~ 13.9 A

    Maximum Power Voltage (Vmp)

    38.3 ~ 40.1 V

    Maximum System Voltage (V)

    1500 V DC

    Open Circuit Voltage (Voc)

    45.5 ~ 47.2 V

    Rear Side Gain (%)

    Up to 25%

    Short Circuit Current (Isc)

    14.3 ~ 14.8 A

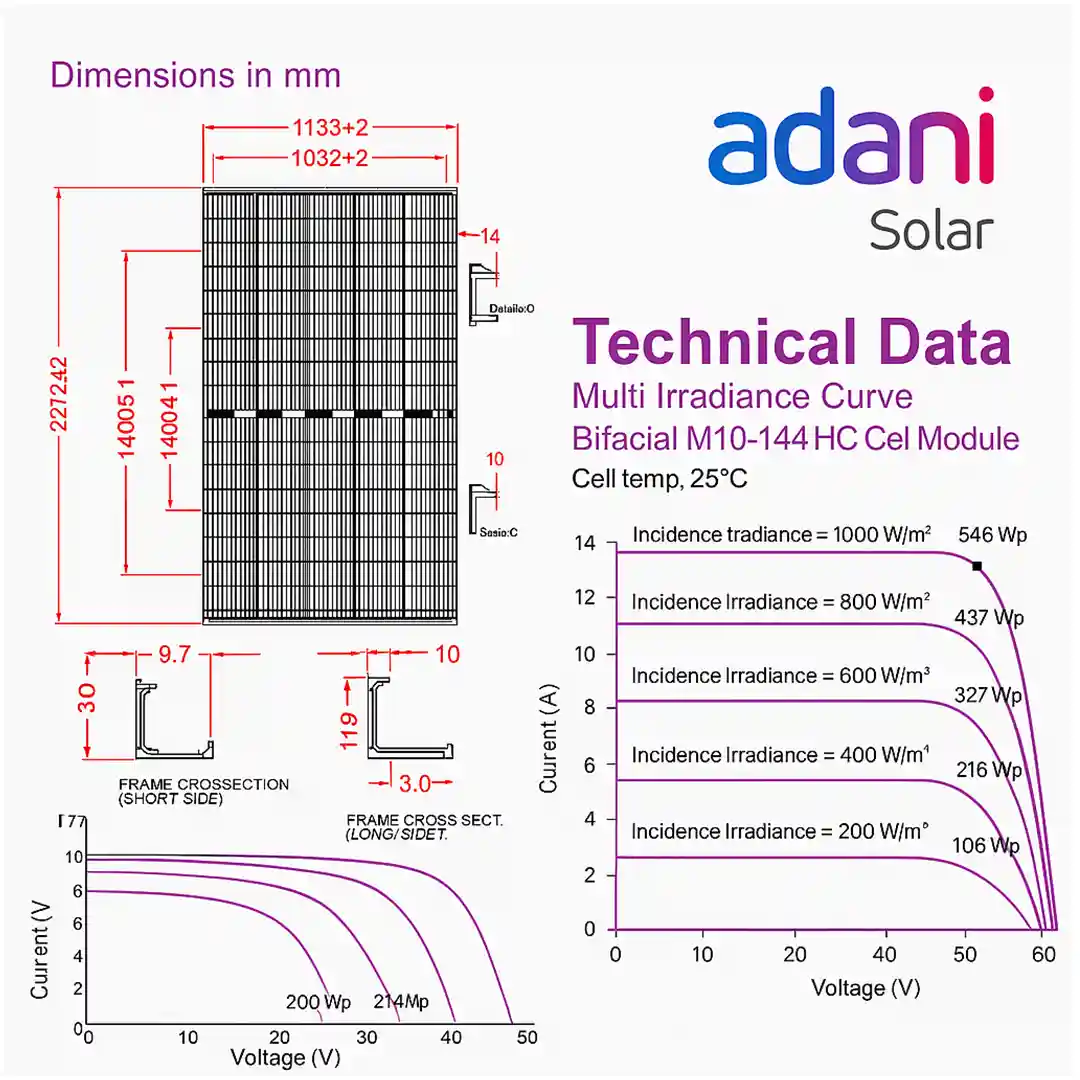

    Mechanical Details

    Weight 31.3 kg
    Dimensions 2278 × 1133 × 30 cm
    Frame Material

    Anodized aluminum

    Glass Type

    Dual Tempered Glass

    Junction Box Rating

    IP68

    Mechanical Load Capacity

    5400 Pa (front) / 2400 Pa (rear)

    General

    Cell Type

    No. of Cells

    144

    ,

    half-cut cells

    Panel Type
