Highlights

  • MBB cell technology – excellent anti-microcracking performance
    with more balanced interior stress: grid pattern current path, lower cost
  • Longer Product life and performance -0.45% year over year degradation with
    30 years warranty on power
  • Modules made with Ga doped wafer with
    Smart soldering
  • Up to 70 ± 5 % Bifaciality Factor
  • Least degradation for LID & LeTID
  • Excellent PID resistance
Brand: Adani

ELAN SHINE Series Bifacial PV Modules (ASB-M10-144-AAA) | Adani

SKU: SP00007

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

Highlights

  • MBB cell technology – excellent anti-microcracking performance
    with more balanced interior stress: grid pattern current path, lower cost
  • Longer Product life and performance -0.45% year over year degradation with
    30 years warranty on power
  • Modules made with Ga doped wafer with
    Smart soldering
  • Up to 70 ± 5 % Bifaciality Factor
  • Least degradation for LID & LeTID
  • Excellent PID resistance
Brand: Adani

Get a Quote

    9 People watching this product now!

    Payment Methods:

    Payment methods

    Description

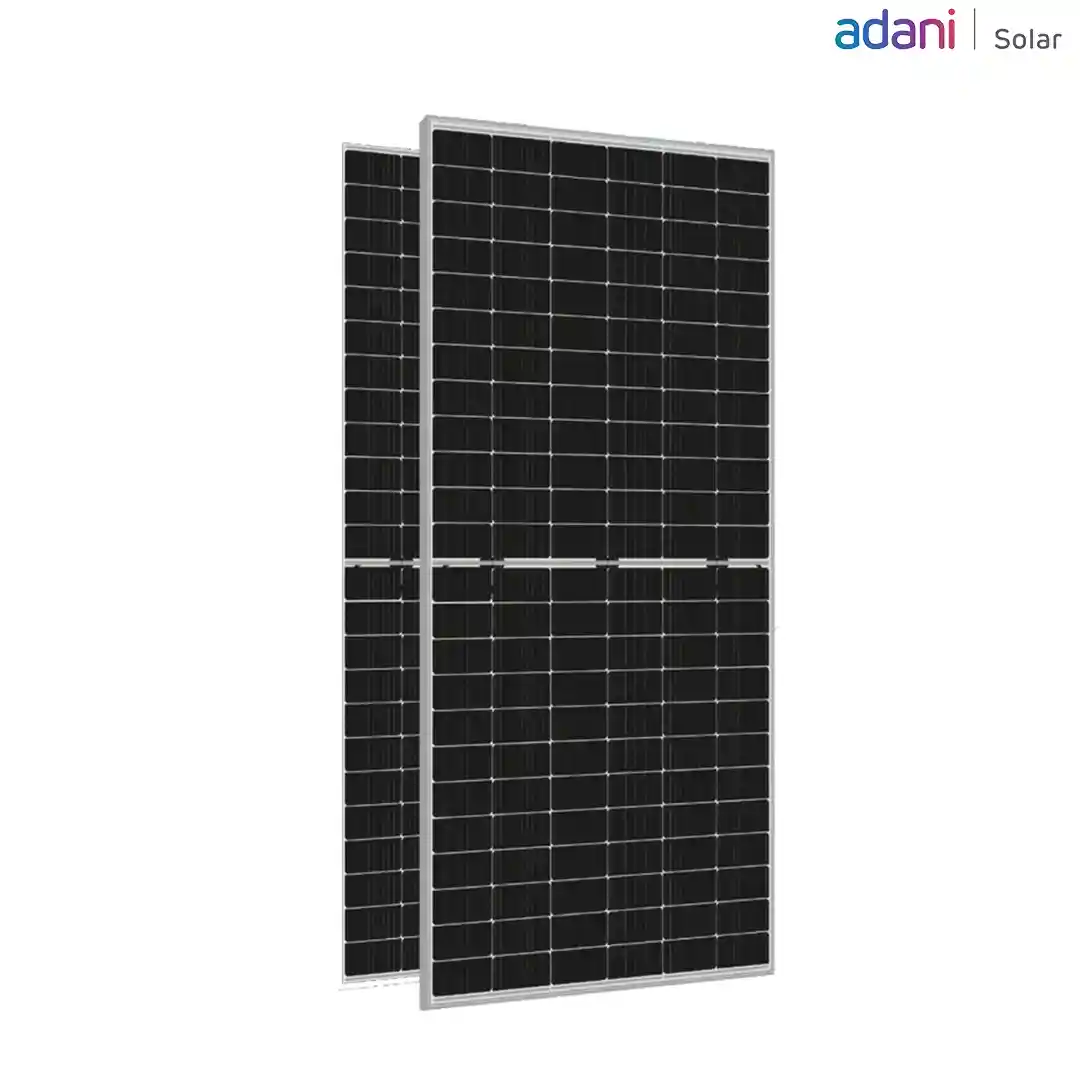

    The ELAN SHINE Series by Adani Solar offers high-performance bifacial PV modules designed with dual glass technology for enhanced durability and energy yield. Utilizing 144 half-cut mono P-type PERC cells arranged with multi-busbar (MBB) technology, these modules deliver a power output range of 520 to 550 Wp.

    The bifacial design captures sunlight from both the front and rear sides, resulting in up to 25% additional rear-side gain, boosting overall system efficiency and maximizing energy harvest per square meter. Dual glass construction not only improves light capture and bifacial gain but also increases mechanical strength and module longevity, making ELAN SHINE ideal for utility-scale solar projects and installations exposed to challenging environmental conditions.

    Specification

    Electrical Specifications

    Bifaciality Factor (%)

    70% ± 5%

    Maximum Power Current (Imp)

    13.9 A to 14.7 A

    Maximum Power Voltage (Vmp)

    37.3 V to 38.3 V

    Maximum System Voltage (V)

    1500 V DC

    Rear Side Gain (%)

    Up to 25%

    Short Circuit Current (Isc)

    14.6 A to 15.3 A

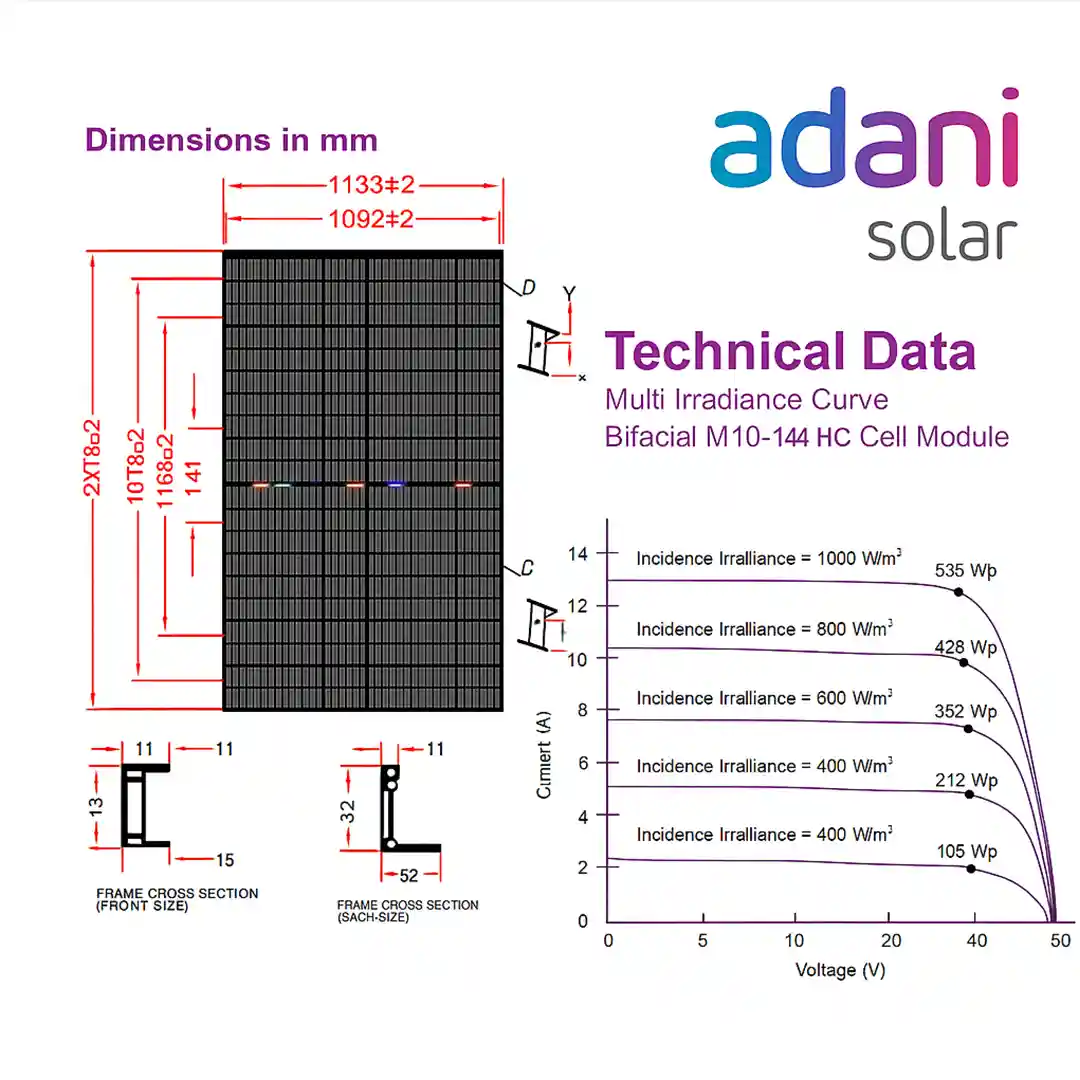

    Mechanical Details

    Weight 32 kg
    Dimensions 2266 × 1166 × 35 cm
    Cables & Connectors

    300 mm cables, MC4-compatible connectors

    Frame Material

    Anodized aluminum

    Glass Type

    Anti-reflective coated

    Junction Box Rating

    IP68

    Mechanical Load Capacity

    5400 Pa (front) / 2400 Pa (rear)

    General

    Cell Type

    No. of Cells

    144

    ,

    half-cut cells

    Panel Type

    ,
