3 kW On-Grid Solar System (DCR & Non-DCR)
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Price range: ₹149,999.00 through ₹210,000.00 Inc. GST
9
People watching this product now!
Highlights
- Multiple System Options
- Subsidy & Non-Subsidy
- Grid & Battery Support
- High Power Output
- Smart Energy Management
Get a Quote
Payment Methods:
Description
The 3 kW On-Grid Solar System is ideal for medium-sized homes and offices aiming to significantly reduce electricity bills through solar power. This system operates in sync with the EB grid and does not include battery backup.
During the day, solar energy powers household loads, and surplus power is exported to the grid via net metering, reducing monthly EB bills. At night or during low solar generation, power is seamlessly drawn from the grid.
Available in DCR (subsidy-eligible) and Non-DCR (non-subsidy) variants, the 3 kW on-grid system offers an optimal balance of cost savings and efficiency.
Best for:
Homes with stable grid connection and higher daytime electricity usage.

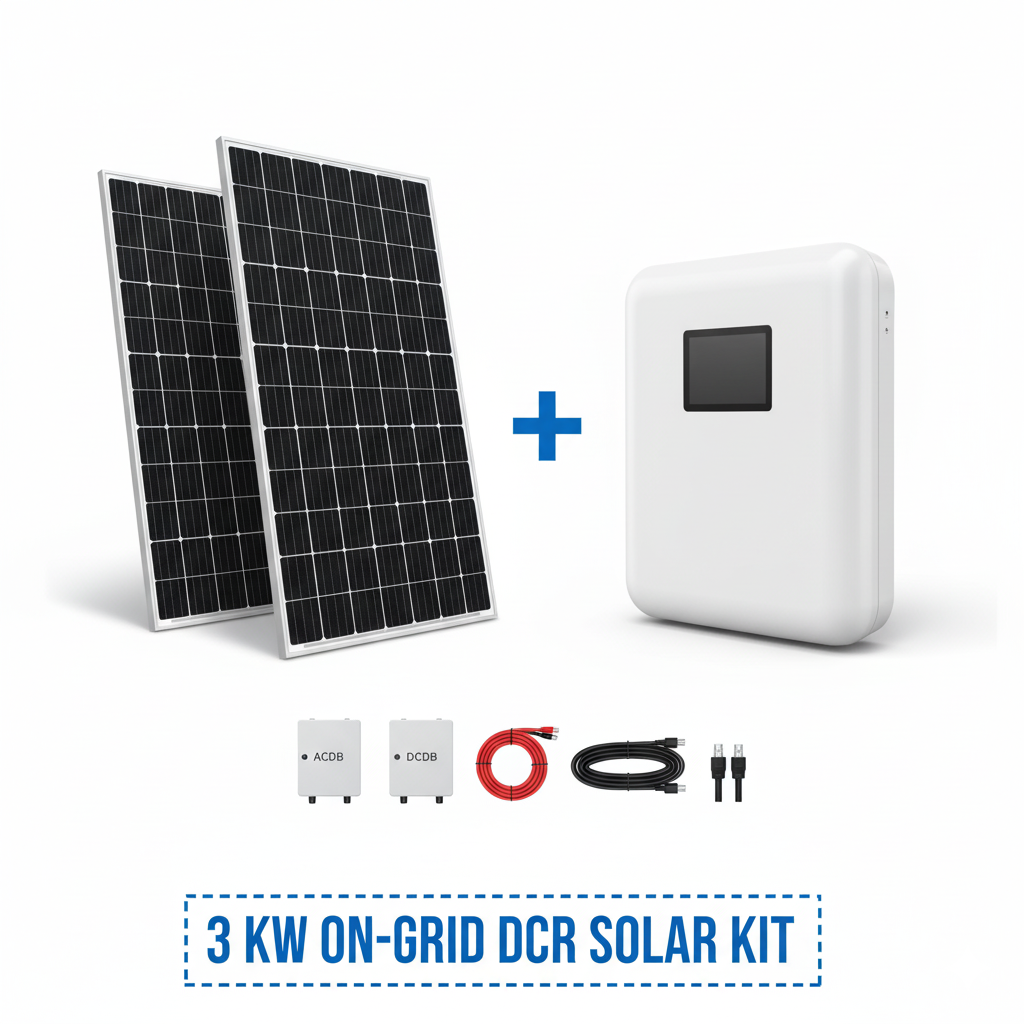

3kW On-Grid DCR Solar Kit – Components & Specifications
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Mono PERC / TOPCon (DCR Compliant) | 6 – 7 Panels |
| 2 | Inverter | On-Grid Solar Inverter | 1 Unit |
| 3 | DCDB (DC Distribution Box) | IP65 Enclosure, Fuse, SPD, MCB | 1 Unit |
| 4 | ACDB (AC Distribution Box) | IP65 Enclosure, MCB, SPD | 1 Unit |
| 5 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 50 – 70 meters |
| 6 | DC Cable (6 sq.mm) | Copper, UV Resistant, Flexible | 15 – 20 meters |
| 7 | AC Cable (Inverter to ACDB) | 3 Core, Copper Armoured | 20 – 25 meters |
| 8 | MC-4 Connectors | Compatible with 4 / 6 sq.mm Cable | 6 – 7 Pairs |
| 9 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 10 | Earthing Kit (Earth Rod) | GI / Copper, 2m or 3m | 2 Units |
| 11 | Earthing Kit (Earth Chemical) | Chemical Compound for Grounding | 2 Bags |
| 12 | Earthing Kit (Earth Chamber) | Precast Chamber with Cover | 2 Units |
| 13 | Earthing Cables | Green PVC Insulated Copper Wire | 25 – 30 meters |
| 14 | Lugs | Copper, Crimp Type | As Required |
| 15 | Nut & Bolts | Stainless Steel, Anti-rust | As Required |
| 16 | Cable Ties (6 inch) | Nylon, UV Resistant | 100 pcs |
| 17 | Cable Ties (12 inch) | Nylon, UV Resistant | 50 pcs |
| 18 | PU Foam | Weatherproof Sealant | 1 – 2 Cans |
| 19 | Insulation Tape | ISI Marked, Electrical Grade | 5 Rolls |
| 20 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 20 – 25 meters |

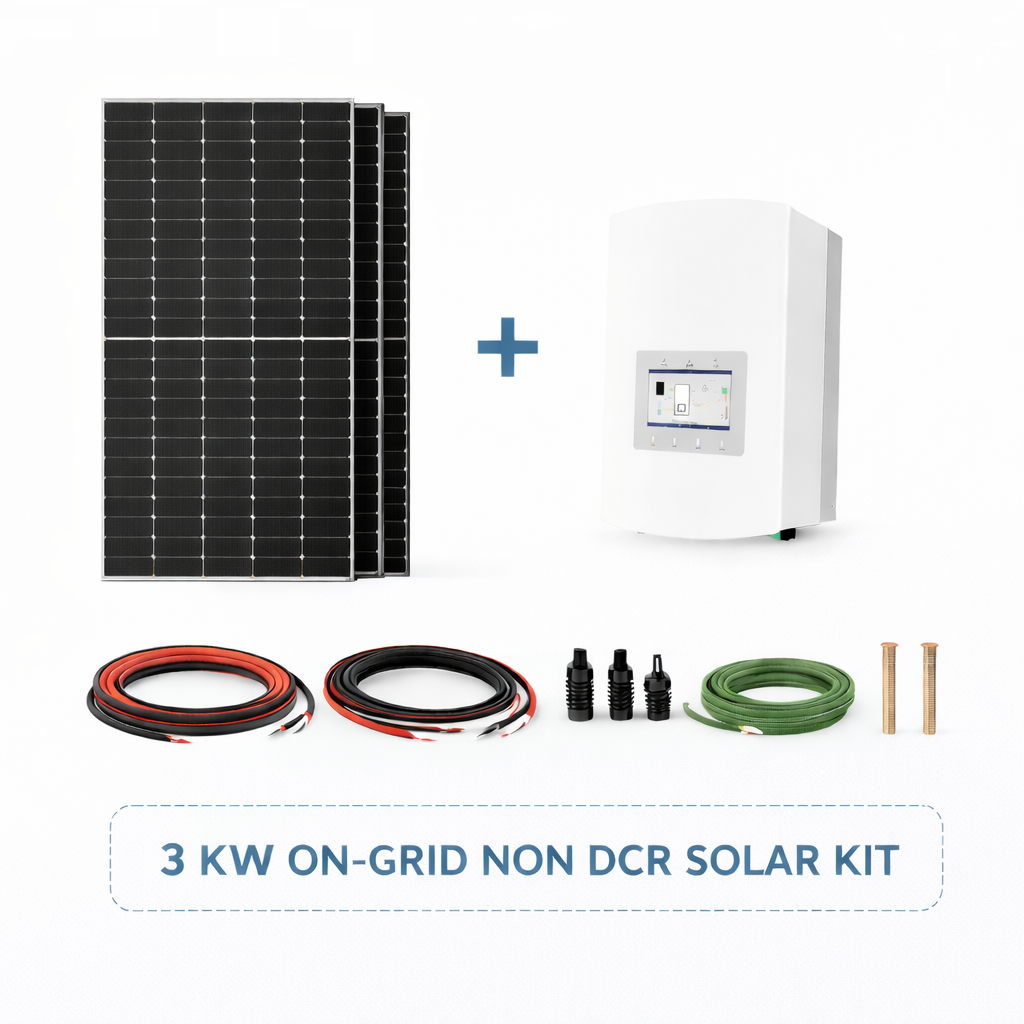

3kW On-Grid Non-DCR Solar Kit – Components & Specifications
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Mono PERC / TOPCon (Non-DCR) | 6 – 7 Panels |
| 2 | Inverter | On-Grid Solar Inverter | 1 Unit |
| 3 | DCDB (DC Distribution Box) | IP65 Enclosure, Fuse, SPD, MCB | 1 Unit |
| 4 | ACDB (AC Distribution Box) | IP65 Enclosure, MCB, SPD | 1 Unit |
| 5 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 50 – 70 meters |
| 6 | DC Cable (6 sq.mm) | Copper, UV Resistant, Flexible | 15 – 20 meters |
| 7 | AC Cable (Inverter to ACDB) | 3 Core, Copper Armoured | 20 – 25 meters |
| 8 | MC-4 Connectors | Compatible with 4 / 6 sq.mm Cable | 6 – 7 Pairs |
| 9 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 10 | Earthing Kit (Earth Rod) | GI / Copper, 2m or 3m | 2 Units |
| 11 | Earthing Kit (Earth Chemical) | Chemical Compound for Grounding | 2 Bags |
| 12 | Earthing Kit (Earth Chamber) | Precast Chamber with Cover | 2 Units |
| 13 | Earthing Cables | Green PVC Insulated Copper Wire | 25 – 30 meters |
| 14 | Lugs | Copper, Crimp Type | As Required |
| 15 | Nut & Bolts | Stainless Steel, Anti-rust | As Required |
| 16 | Cable Ties (6 inch) | Nylon, UV Resistant | 100 pcs |
| 17 | Cable Ties (12 inch) | Nylon, UV Resistant | 50 pcs |
| 18 | PU Foam | Weatherproof Sealant | 1 – 2 Cans |
| 19 | Insulation Tape | ISI Marked, Electrical Grade | 5 Rolls |
| 20 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 20 – 25 meters |
Kit Specifications
| System Capacity | 3 kW |
|---|---|
| Panel Type | (DCR), Mono PERC, TopCon |
| No. of Panels | 6 ~ 7 Nos |
| Panel Brand | Adani Solar, Goldi Solar, Panasonic Solar, RenewSys, Solex Energy, Waaree |
| Inverter Type | On-Grid (String Inverter) |
| Inverter Brand | Deye, Growatt, Hoymiles, Sineng Electric, Solis, Sungrow, Sunways |
| Battery Included | No |
| Battery Type | ~ |
| Warranty - Panels | 25 Years |
| Warranty - Inverter | 5 Years |
| MNRE Approved | Yes |
| Subsidy Eligible | Yes (for residential under DCR) |
