Highlights
- Battery backup
- Power independence
- Works without grid
- Reliable output
- Remote area ready
4 kW Off-Grid Solar System
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Original price was: ₹310,000.00.₹281,180.00Current price is: ₹281,180.00. Inc. GST
Highlights
- Battery backup
- Power independence
- Works without grid
- Reliable output
- Remote area ready
Get a Quote
Payment Methods:
Description
The 4 kW off-grid solar System is designed for locations where grid power is unreliable or unavailable. It operates independently using solar panels and battery storage to ensure continuous electricity supply.
This system stores excess solar energy in batteries during the day and provides power during the night or power cuts. It is well-suited for rural homes, farmhouses, remote offices, and areas with frequent grid failures.
Built for durability and dependable performance, the 4 kW off-grid system offers complete energy independence with proper battery sizing and expert installation.

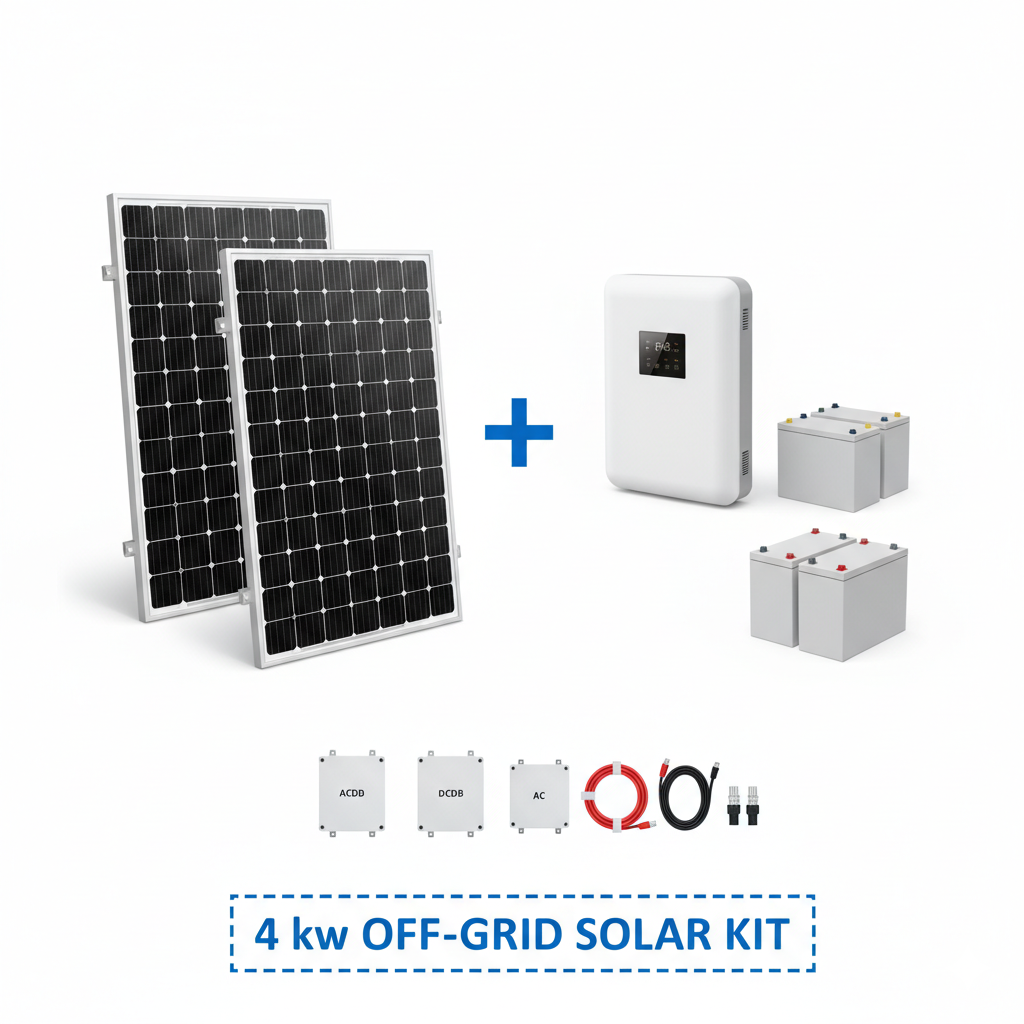

4kW Off-Grid Solar Kit – Components & Specifications
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Mono PERC / TOPCon (Non-DCR) | 8 – 9 Panels |
| 2 | Inverter | Off-Grid Solar Inverter | 1 Unit |
| 3 | Battery | Tubular / Lithium (as selected) | 4 – 6 Units |
| 4 | DCDB (DC Distribution Box) | IP65 Enclosure, Fuse, SPD, MCB | 1 Unit |
| 5 | ACDB (AC Distribution Box) | IP65 Enclosure, MCB, SPD | 1 Unit |
| 6 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 60 – 80 meters |
| 7 | DC Cable (6 sq.mm) | Copper, UV Resistant, Flexible | 20 – 25 meters |
| 8 | AC Cable (Inverter to ACDB) | 3 Core, Copper Armoured | 25 – 30 meters |
| 9 | Battery Cable | Copper, Heavy Duty | 8 – 10 meters |
| 10 | MC-4 Connectors | Compatible with 4 / 6 sq.mm Cable | 8 – 9 Pairs |
| 11 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 12 | Earthing Kit (Earth Rod) | GI / Copper, 2m or 3m | 2 Units |
| 13 | Earthing Kit (Earth Chemical) | Chemical Compound for Grounding | 2 Bags |
| 14 | Earthing Kit (Earth Chamber) | Precast Chamber with Cover | 2 Units |
| 15 | Earthing Cables | Green PVC Insulated Copper Wire | 30 – 35 meters |
| 16 | Lugs | Copper, Crimp Type | As Required |
| 17 | Nut & Bolts | Stainless Steel, Anti-rust | As Required |
| 18 | Cable Ties (6 inch) | Nylon, UV Resistant | 125 pcs |
| 19 | Cable Ties (12 inch) | Nylon, UV Resistant | 60 pcs |
| 20 | PU Foam | Weatherproof Sealant | 1 – 2 Cans |
| 21 | Insulation Tape | ISI Marked, Electrical Grade | 6 Rolls |
| 22 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 25 – 30 meters |
Kit Specifications
| System Capacity | 4 kW |
|---|---|
| Panel Type | Mono PERC, TopCon |
| No. of Panels | 8 ~ 9 Nos |
| Panel Brand | Adani Solar, Goldi Solar, Panasonic Solar, RenewSys, Solex Energy, Waaree |
| Inverter Type | Off-Grid Solar Inverter |
| Inverter Brand | Deye, Growatt, Hoymiles, Sineng Electric, Solis, Sungrow, Sunways |
| Battery Included | Optional (Only for Off-Grid / Hybrid Systems) |
| Battery Type | Tubular / Lithium (Optional) |
| Warranty - Panels | 25 Years |
| Warranty - Inverter | 5 Years |
| MNRE Approved | Yes |
| Subsidy Eligible | Yes (for residential under DCR) |
