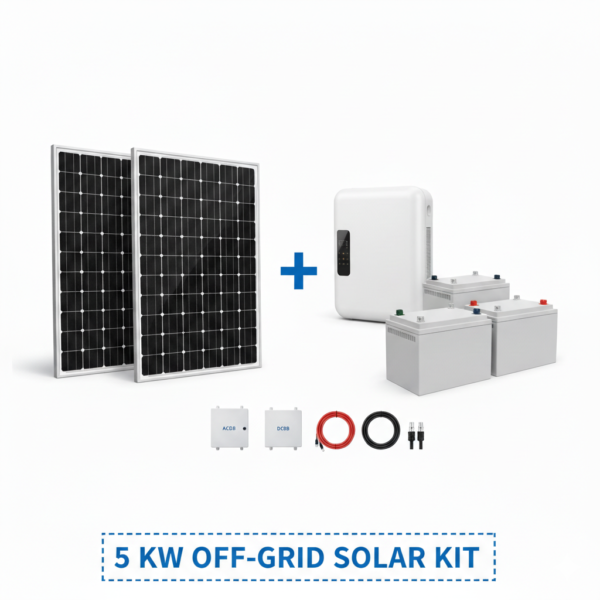

5 kW Off-Grid Solar System

SKU: KIT00005

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

Original price was: ₹370,000.Current price is: ₹357,628.

Delivery availability Enter your pincode to view delivery estimates and availability before you place the order.

10 People watching this product now!

Highlights

  • High Capacity System
  • Multiple System Options
  • Subsidy & Non-Subsidy
  • Grid & Battery Support
  • Long-Term Savings

Get a Quote

    Compare

    Payment Methods:

    Payment methods

    Description

    The 5 kW off-grid solar System is designed for users who require complete independence from the electricity grid. It generates and stores solar power in batteries to provide reliable electricity throughout the day and night.

    This system is ideal for rural homes, farmhouses, remote offices, and locations with unreliable grid supply. Properly sized batteries ensure stable power even during extended outages or low sunlight conditions.

    Built for durability and consistent output, the 5 kW off-grid solution delivers dependable performance and long-term energy security with professional system design and installation.

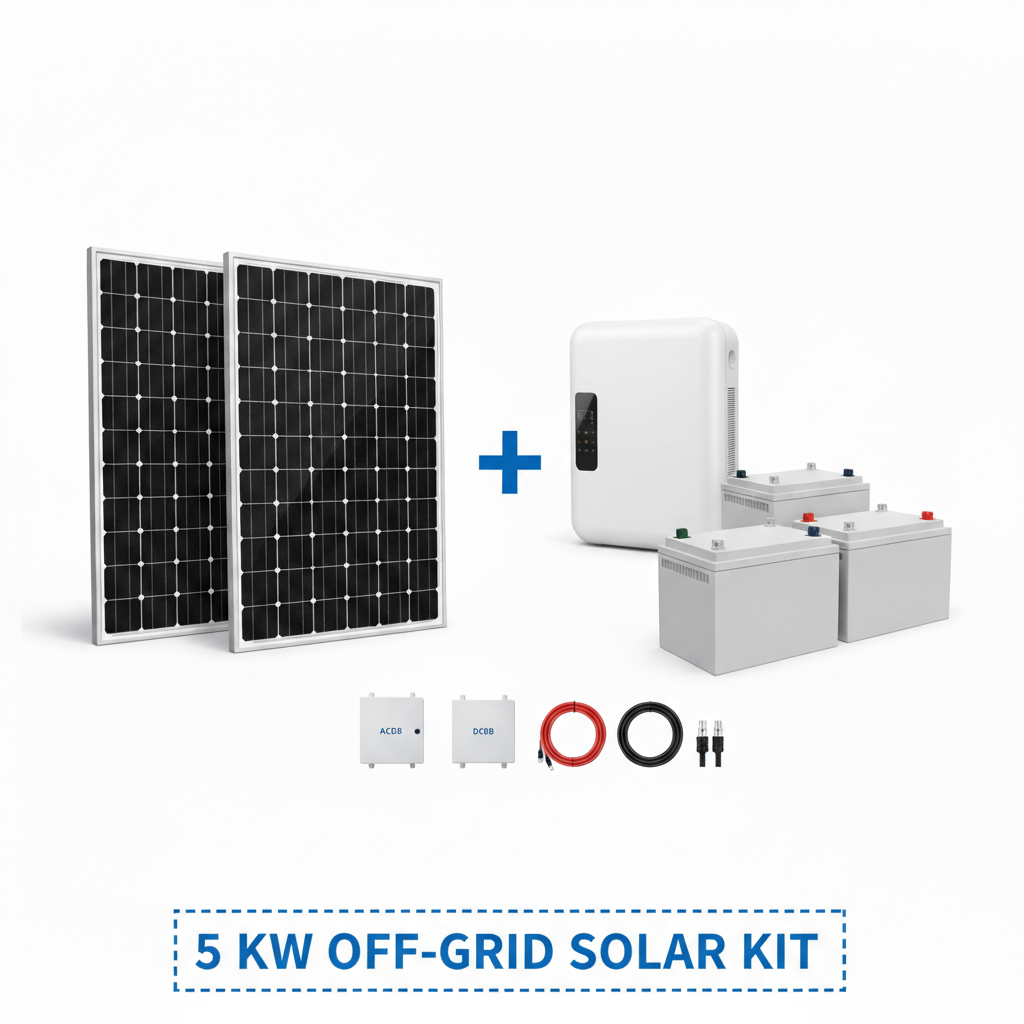

    5kW Off-Grid Solar Kit – Components & Specifications

    Sr. No. Component Specification Qty (Approx.)
    1 PV Module Mono PERC / TOPCon (Non-DCR) 10 – 11 Panels
    2 Inverter Off-Grid Solar Inverter 1 Unit
    3 Battery Tubular / Lithium (as selected) 6 – 8 Units
    4 DCDB (DC Distribution Box) IP65 Enclosure, Fuse, SPD, MCB 1 Unit
    5 ACDB (AC Distribution Box) IP65 Enclosure, MCB, SPD 1 Unit
    6 DC Cable (4 sq.mm) Copper, UV Resistant, Flexible 70 – 90 meters
    7 DC Cable (6 sq.mm) Copper, UV Resistant, Flexible 25 – 30 meters
    8 AC Cable (Inverter to ACDB) 3 Core, Copper Armoured 30 – 35 meters
    9 Battery Cable Copper, Heavy Duty 10 – 12 meters
    10 MC-4 Connectors Compatible with 4 / 6 sq.mm Cable 10 – 11 Pairs
    11 Lightning Arrestor IEC Certified, Copper Strip 1 Unit
    12 Earthing Kit (Earth Rod) GI / Copper, 2m or 3m 2 Units
    13 Earthing Kit (Earth Chemical) Chemical Compound for Grounding 2 Bags
    14 Earthing Kit (Earth Chamber) Precast Chamber with Cover 2 Units
    15 Earthing Cables Green PVC Insulated Copper Wire 35 – 40 meters
    16 Lugs Copper, Crimp Type As Required
    17 Nut & Bolts Stainless Steel, Anti-rust As Required
    18 Cable Ties (6 inch) Nylon, UV Resistant 150 pcs
    19 Cable Ties (12 inch) Nylon, UV Resistant 75 pcs
    20 PU Foam Weatherproof Sealant 2 Cans
    21 Insulation Tape ISI Marked, Electrical Grade 7 Rolls
    22 DC Cable (2.5 sq.mm) Copper, UV Resistant 30 – 35 meters

    Kit Specifications

    System Capacity (kit-system-capacity)5kW
    Panel Type (kit-panel-type)Mono PERC, TopCon
    No. of Panels (kit-number-of-panels)10 ~ 11 Nos
    Panel Brand (kit-panel-brand)Adani Solar, Goldi Solar, Panasonic Solar, RenewSys, Solex Energy, Waaree
    Inverter Type (kit-inverter-type)Off-Grid Solar Inverter
    Inverter Brand (kit-inverter-brand)Deye, Growatt, Hoymiles, Sineng Electric, Solis, Sungrow, Sunways
    Battery Included (kit-battery-included)Optional (Only for Off-Grid / Hybrid Systems)
    Battery Type (kit-battery-type)Tubular / Lithium (Optional)
    Warranty - Panels (kit-warranty-panels)25 Years
    Warranty - Inverter (kit-warranty-inverter)5 Years
    MNRE Approved (kit-mnre-approved)Yes
    Subsidy Eligible (kit-subsidy-eligible)Yes (for residential under DCR)
