7 kW Off-Grid Solar System
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Original price was: ₹510,000.00.₹492,446.00Current price is: ₹492,446.00. Inc. GST
8
People watching this product now!
Highlights
- Battery backup
- Grid independent
- Continuous power
- Rural ready
- Reliable output
Get a Quote
Payment Methods:
Description
The 7 kW off-grid solar System is built for users who need complete independence from the electricity grid. It generates solar power during the day and stores energy in batteries for use at night or during outages.
This system is ideal for rural homes, farmhouses, villas, and remote commercial locations where grid reliability is poor. Proper battery configuration ensures consistent power even during extended outages.
Engineered for durability and dependable output, the 7 kW off-grid solution delivers long-term energy security when professionally designed and installed.

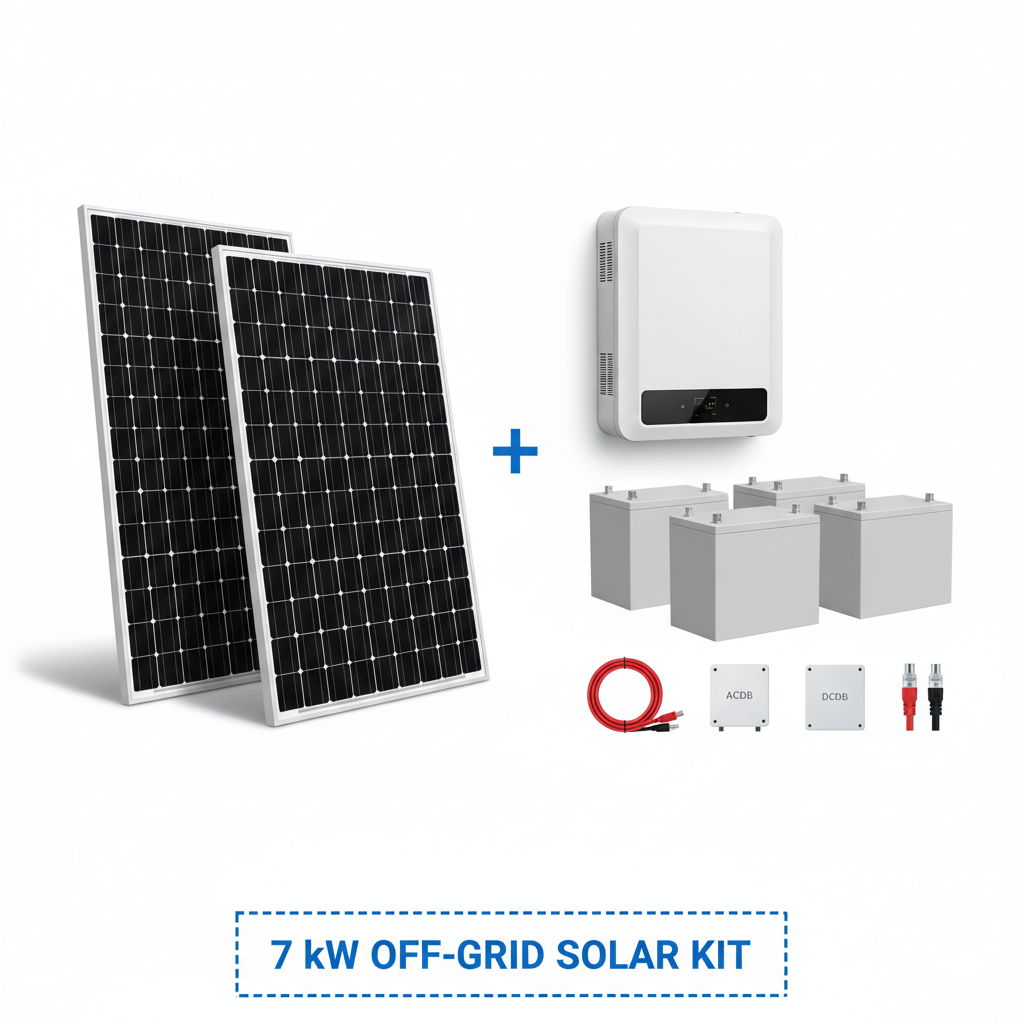

7kW Off-Grid Solar Kit – Components & Specifications
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Mono PERC / TOPCon (Non-DCR) | 14 – 15 Panels |
| 2 | Inverter | Off-Grid Solar Inverter | 1 Unit |
| 3 | Battery | Tubular / Lithium (as selected) | 10 – 12 Units |
| 4 | DCDB | IP65 Enclosure, Fuse, SPD, MCB | 1 Unit |
| 5 | ACDB | IP65 Enclosure, MCB, SPD | 1 Unit |
| 6 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 90 – 110 meters |
| 7 | DC Cable (6 sq.mm) | Copper, UV Resistant, Flexible | 35 – 40 meters |
| 8 | AC Cable | 3 Core, Copper Armoured | 40 – 45 meters |
| 9 | Battery Cable | Copper, Heavy Duty | 15 – 18 meters |
| 10 | MC-4 Connectors | Compatible with 4 / 6 sq.mm Cable | 14 – 15 Pairs |
| 11 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 12 | Earthing Kit (Earth Rod) | GI / Copper, 2m or 3m | 2 Units |
| 13 | Earthing Kit (Earth Chemical) | Chemical Compound for Grounding | 2 Bags |
| 14 | Earthing Kit (Earth Chamber) | Precast Chamber with Cover | 2 Units |
| 15 | Earthing Cables | Green PVC Insulated Copper Wire | 45 – 50 meters |
| 16 | Lugs | Copper, Crimp Type | As Required |
| 17 | Nut & Bolts | Stainless Steel, Anti-rust | As Required |
| 18 | Cable Ties (6 inch) | Nylon, UV Resistant | 200 pcs |
| 19 | Cable Ties (12 inch) | Nylon, UV Resistant | 100 pcs |
| 20 | PU Foam | Weatherproof Sealant | 2 – 3 Cans |
| 21 | Insulation Tape | ISI Marked, Electrical Grade | 9 Rolls |
| 22 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 40 – 45 meters |
Kit Specifications
| System Capacity | 7 kW |
|---|---|
| Panel Type | Bifacial High-Efficiency Panels, Half-Cut, Mono PERC, Monocrystalline PERC, TopCon |
| No. of Panels | 14 – 15 Panels |
| Panel Brand | Adani Solar, Goldi Solar, Panasonic Solar, RenewSys, Solex Energy, Waaree |
| Inverter Type | Off-Grid Solar Inverter |
| Inverter Brand | Deye, Growatt, Hoymiles, Sineng Electric, Solis, Sungrow, Sunways |
| Battery Included | Optional (Only for Off-Grid / Hybrid Systems) |
| Battery Type | Tubular / Lithium (Optional) |
| Warranty - Panels | 25 Years |
| Warranty - Inverter | 5 Years |
| MNRE Approved | Yes |
| Subsidy Eligible | No |
