Highlights
- N-Type TOPCon
- 550–580Wp output
- Dual-glass durability
- Low degradation rate
- High bifacial gain
TOPcon Adani Solar Panel
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- N-Type TOPCon
- 550–580Wp output
- Dual-glass durability
- Low degradation rate
- High bifacial gain
Get a Quote
Payment Methods:
Description

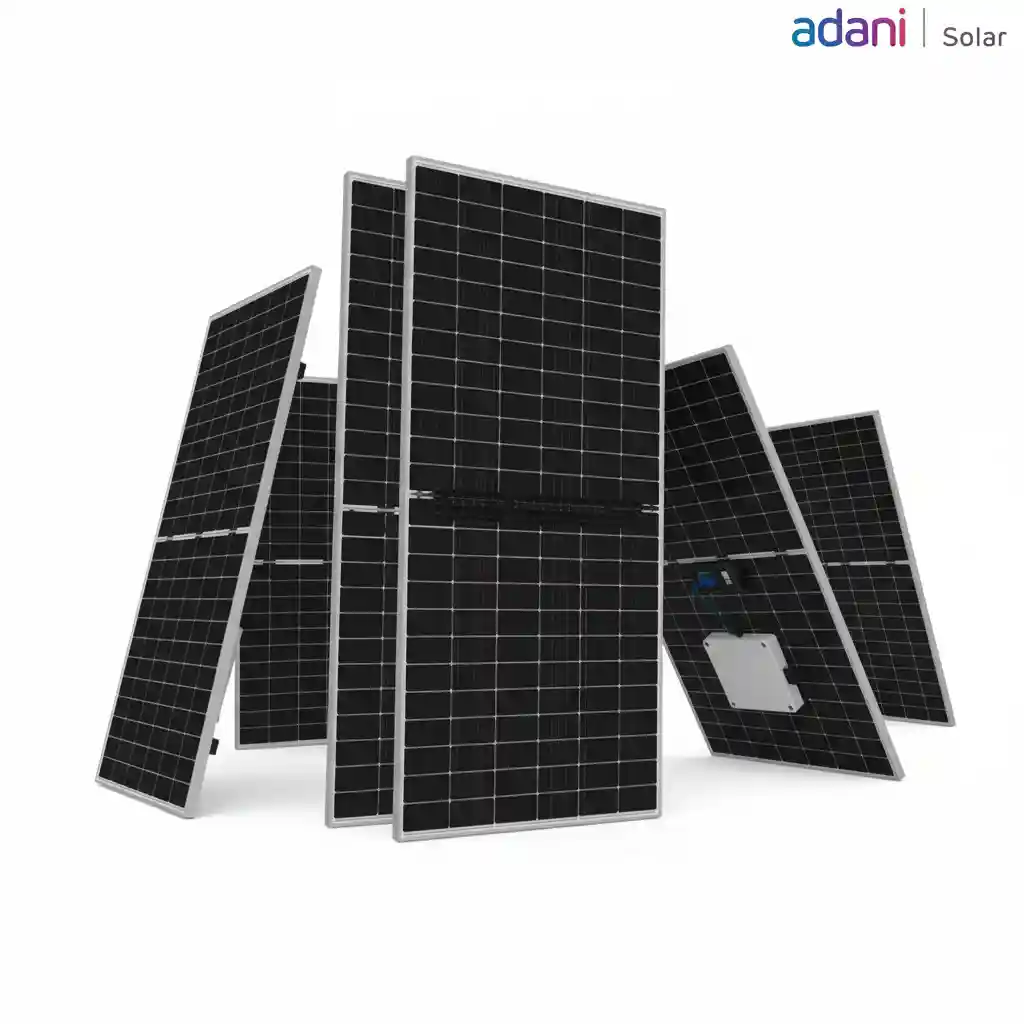

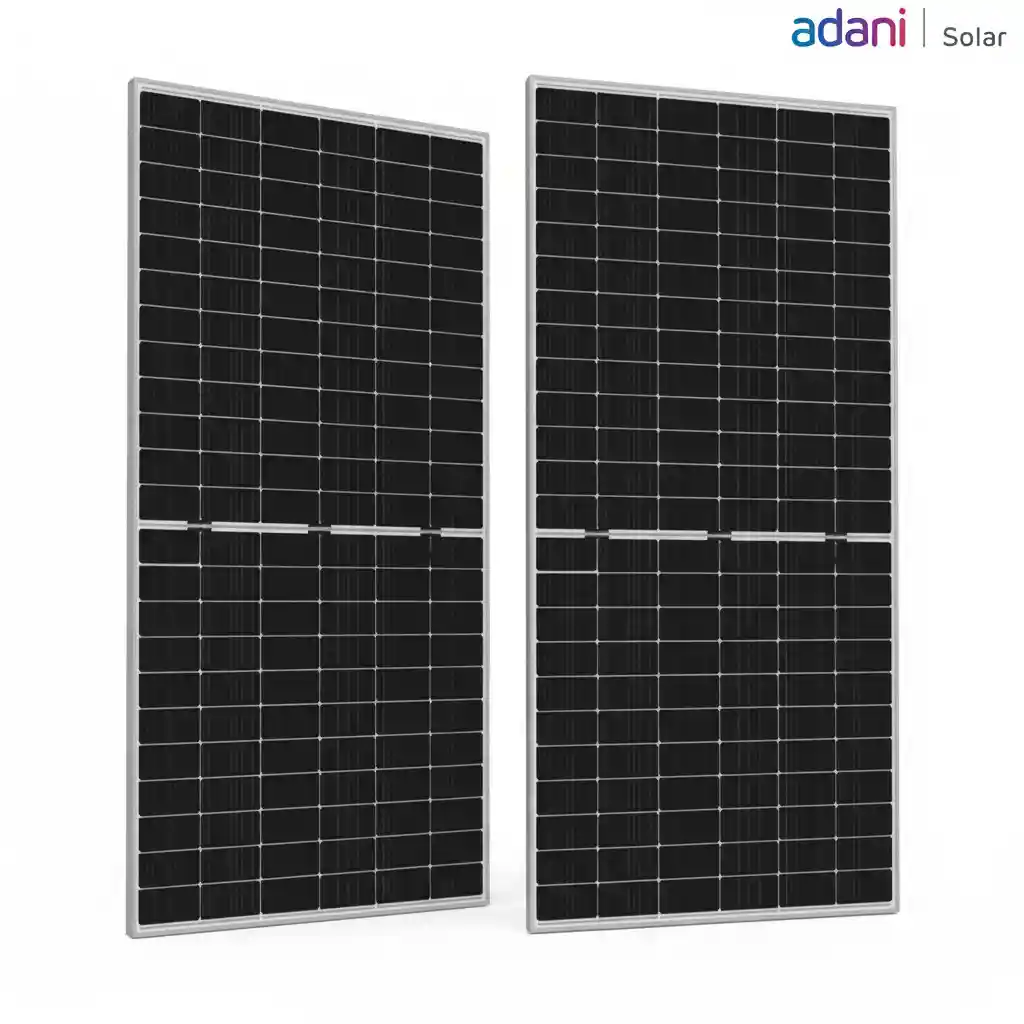

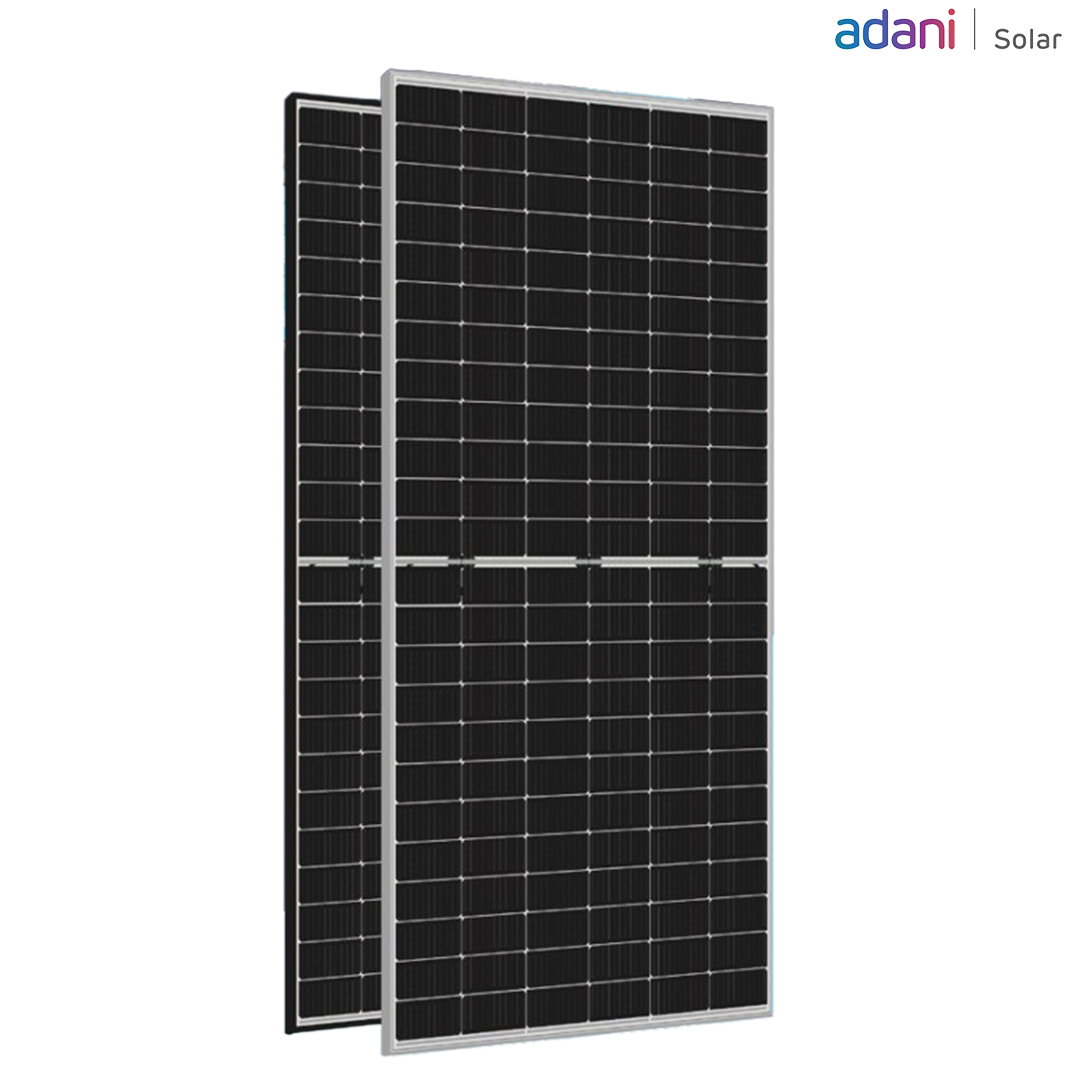

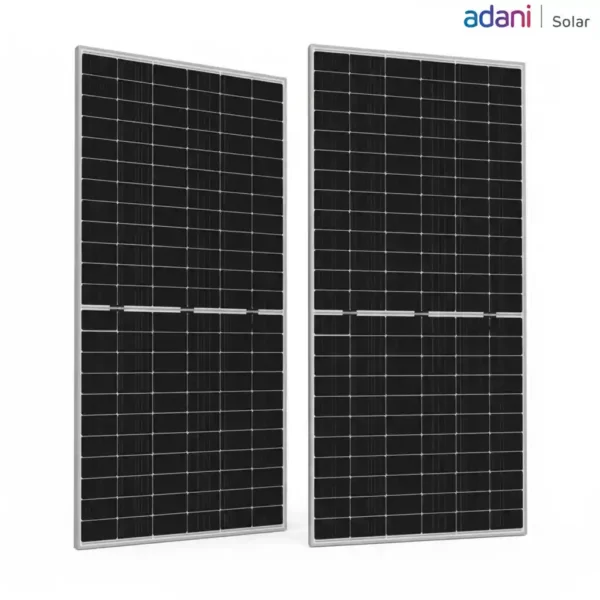

The ELAN SHINE ASB-M10-144-AAA module is a next-generation dual-glass N-Type Topcon solar panel designed to deliver exceptional performance, durability, and long-term energy yield. Built with 144 half-cut N-type monocrystalline cells, this Gen-II module offers a high power output range of 550 to 580 Wp, making it ideal for high-efficiency commercial and utility-scale installations.
Leveraging Topcon (Tunnel Oxide Passivated Contact) technology, it offers superior power conversion efficiency, better low-light performance, and reduced degradation over time. Unlike conventional P-type modules, N-type cells offer lower LID (Light Induced Degradation) and better temperature coefficients, ensuring consistent output across various environmental conditions.
The module features dual-glass construction (glass-glass), offering higher mechanical strength, improved fire resistance, and excellent protection against moisture, dust, and PID (Potential Induced Degradation). This design also ensures longer service life, making it ideal for harsh environments such as deserts, coastal, and high-humidity areas.
Specification
Electrical Specifications
| Bifaciality Factor (%) | 10% ~ 30% |
|---|---|
| Maximum Power Current (Imp) | 12.86 ~ 13.09 A |
| Maximum Power Voltage (Vmp) | 42.84 ~ 43.98 V |
| Maximum System Voltage (V) | 1500 V DC |
| Open Circuit Voltage (Voc) | 51.3 – 52.5 A |
| Rear Side Gain (%) | 10 ~ 30 % |
| Short Circuit Current (Isc) | 13.59 ~ 13.95 A |
| Temperature Coefficient | -0.35 % / °C |
Connector Specification
| Cables & Connectors | 300 mm cables, MC4-compatible connectors |
|---|
Mechanical Details
| Weight | 31.3 kg |
|---|---|

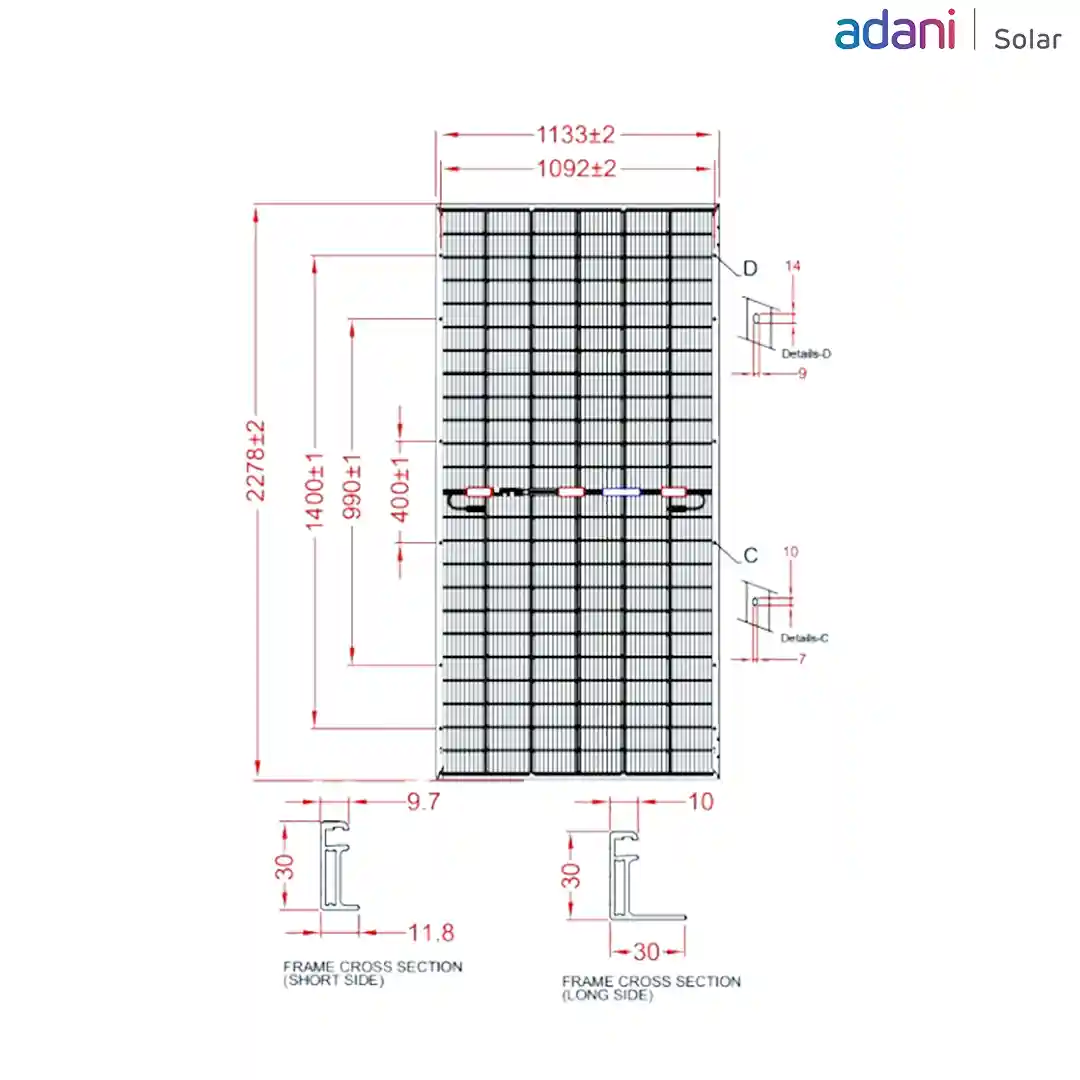

| Dimensions | 2278 × 1133 × 30 cm |
| Cables & Connectors | 300 mm cables, MC4-compatible connectors |
| Frame Material | Anodized aluminum |
| Glass Type | High-transmittance tempered glass |
| Junction Box Rating | IP68 |
| Mechanical Load Capacity | 3600 Pa-downward; 1600 Pa-upward |
General
| Cell Type | N-Type |
|---|---|
| Efficiency (%) | 21.3 – 22.5 % |
| No. of Cells | 144 |
| Power Rating (Wattage) | 550 WP, 555 WP, 560 WP, 565 WP, 570 WP, 575 WP, 580 WP |
| Warranty (Years) | 12 years of product warranty |
