GOLDI GS10-M144-WF – 525–560 Wp High-Efficiency Mono PERC Solar Module (Half-Cut MBB Design)
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- 525–560Wp output
- Mono PERC module
- Half-cut MBB cells
- High efficiency design
- 25-year performance
Get a Quote
Payment Methods:
Description
The GOLDI GS10-M144-WF (525–560 Wp) is a high-efficiency monofacial solar module engineered using advanced Mono PERC Half-Cut technology for superior energy output and long-term reliability. It is designed to meet the energy demands of commercial rooftops, industrial plants, and large-scale solar farms that require maximum generation in limited installation space. Its high wattage range significantly improves system efficiency while reducing installation time and structural costs.
Equipped with 144 half-cut mono cells, this module offers improved shade tolerance, lower resistive losses, and enhanced temperature performance. The multi-busbar (MBB) architecture improves electrical conductivity and reduces the impact of micro-cracks, ensuring stable and reliable performance even in challenging environmental conditions. Whether in diffused light or high-temperature climates, the GS10-M144-WF delivers strong, consistent energy output.
The module’s build features a durable frame, high-transparency tempered glass, and PID-resistant encapsulation materials. This ensures excellent resistance against humidity, thermal stress, dust-heavy environments, and strong wind loads. Its robust construction makes it suitable for rooftops, ground-mount systems, canopies, carports, and large commercial solar plants.
Manufactured under GOLDI Solar’s high-quality standards and backed by extended performance warranties, the GS10-M144-WF ensures reliable production for more than 25 years. It is an ideal choice for EPC contractors, industries, and businesses seeking a dependable, high-output module that combines quality, durability, and long-term ROI.
Specification
Electrical Specifications
| Maximum Power Voltage (Vmp) | 43.35 |
|---|---|
| Maximum Power Current (Imp) | 12.70 A – 13.05 A |
| Short Circuit Current (Isc) | 13.20 A – 13.49 A |
| Maximum System Voltage (V) | 1500 V DC |
| Rear Side Gain (%) | ~ |
| Temperature Coefficient | -0.32% /°C |

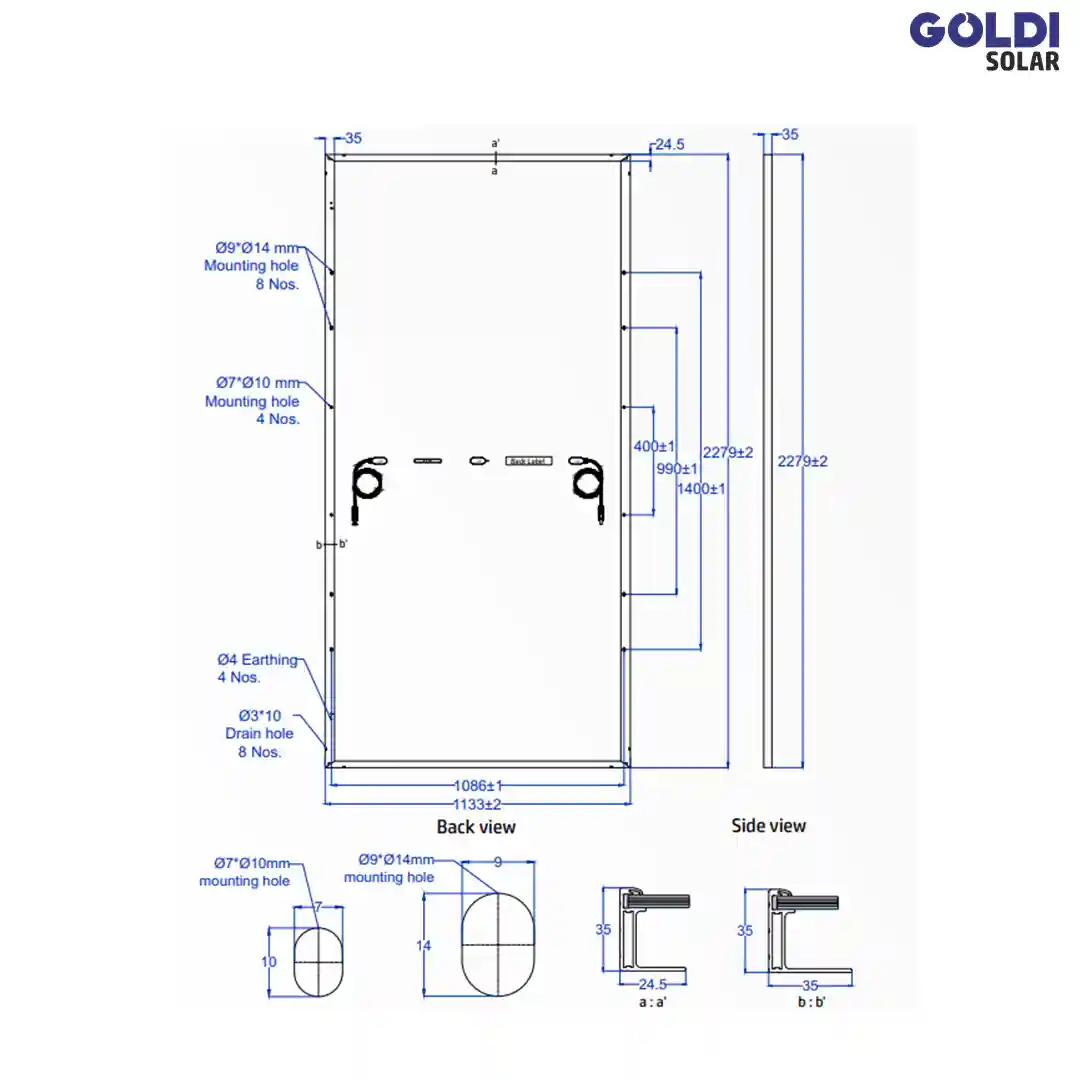

Mechanical Details
| Weight | 28 kg |
|---|---|
| Dimensions | 227.9 × 113.3 × 3.5 cm |
| Junction Box Rating | IP 68 certified, 3 diodes, Split junction box |
| Glass Type | High Tramission ARC |
| Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
| Frame Material | Silver Anodized Aluminium Alloy |
General
| Efficiency (%) | 20.33% – 21.70% |
|---|---|
| No. of Cells | 144 pcs monocrystalline Silicon (PERC), Multi BB |
| Panel Type | Monocrystalline |
| Power Rating (Wattage) | 525 WP, 530 WP, 535 WP, 540 Wp, 545 Wp, 550 WP, 555 WP, 560 WP |
| Warranty (Years) | 12 years for materials and processing, 25 years for linear power output |
