Highlights
- Integrated MPPT charge controller
- Configurable grid or solar input priority
- Optional WIFI/ GPRS remote monitoring
- Parallel for scalability

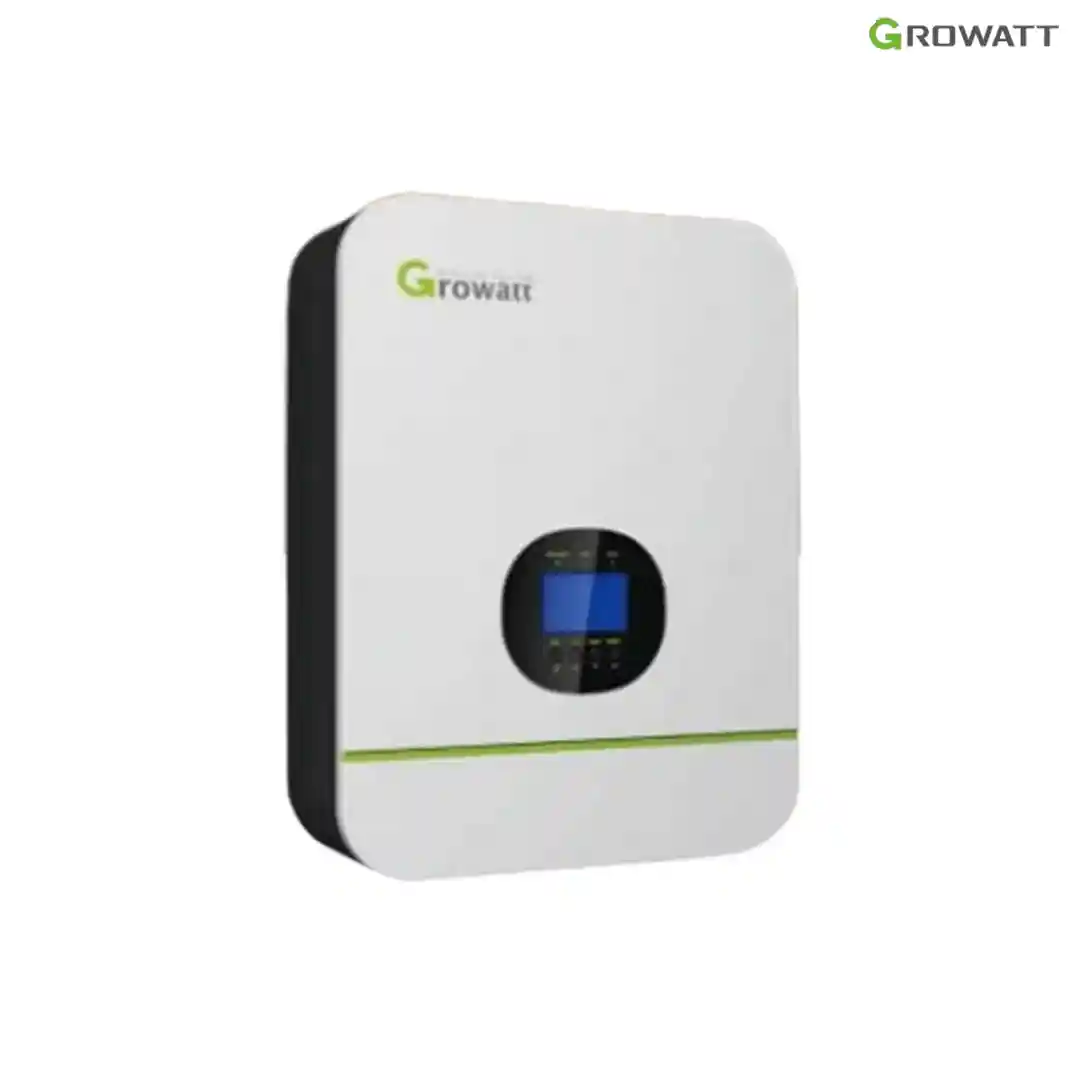

Growatt SPF 2000–5000TL HVM – Scalable Single‑Phase Off‑Grid Hybrid Inverter
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Integrated MPPT charge controller
- Configurable grid or solar input priority
- Optional WIFI/ GPRS remote monitoring
- Parallel for scalability
Get a Quote
Payment Methods:
Description

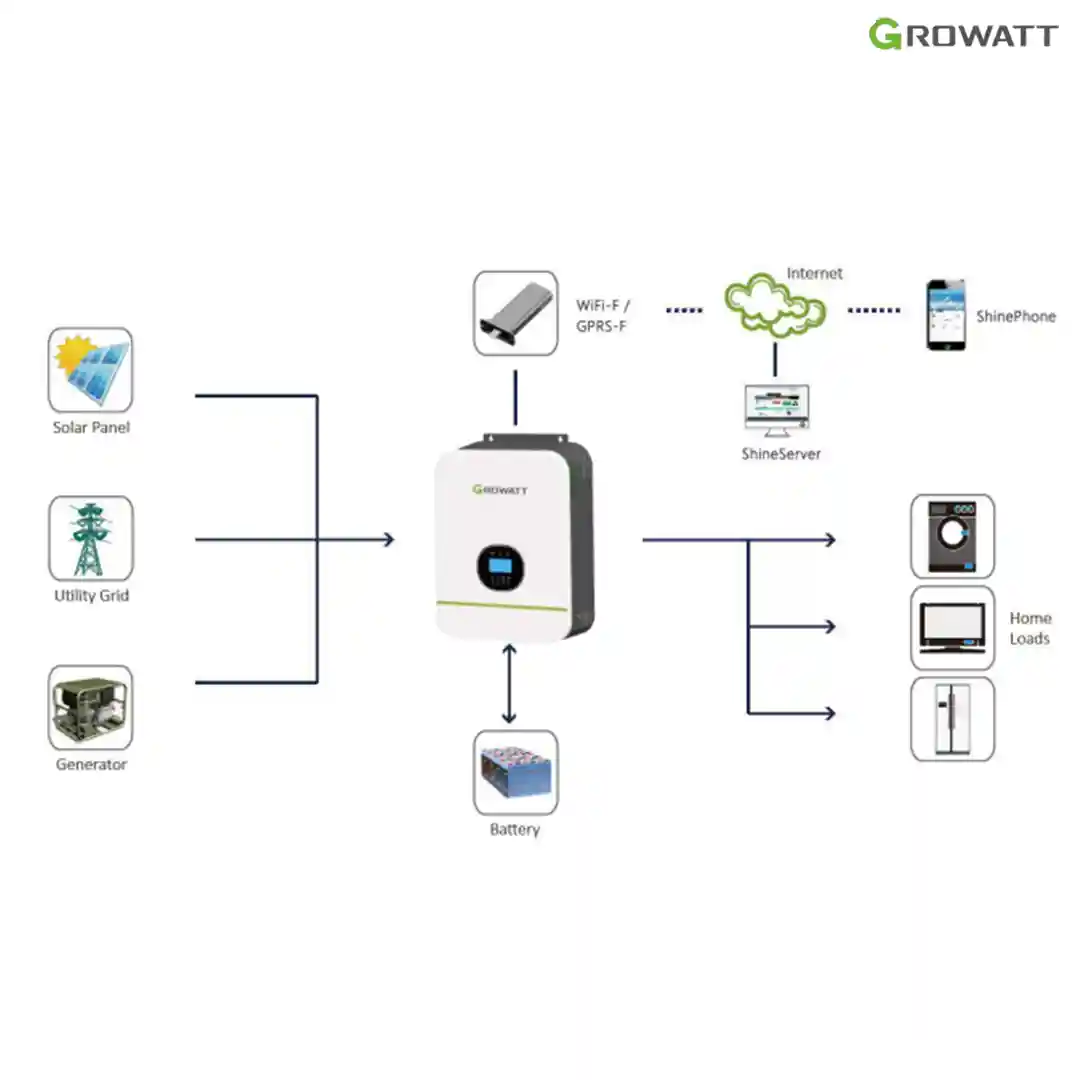

The Growatt SPF 2000–5000TL HVM is a robust, single-phase off-grid hybrid inverter that seamlessly blends PV input, battery backup, and optional utility support into a compact plug-and-play unit. Designed for flexible energy solutions, it provides reliable power whether in solar-priority or battery-priority modes.
Boasting a durable transformer-based design, this inverter excels under heavy load conditions—ideal for inductive appliances like pumps and motors. Its high peak power ability (up to 2× the rated output) and pure sine-wave performance ensure excellent efficiency and true-to-form energy output.
Scalability is a core strength: users can parallel up to six units to build systems from 2 kW up to 30 kW. Integrated remote monitoring via Wi‑Fi or GPRS allows for seamless system management on Growatt’s PVKeeper platform and Shine modules.
With configurable input priorities and compatibility with various battery chemistries (lead-acid, lithium), the SPF 2000–5000TL HVM empowers users with a flexible power strategy—whether it’s solar-centric, grid-assisted, or completely off-grid.
Specification
Input (Solar/DC Side)
| Max Input Current per MPPT (A) | 30 A, 50 A, 80 A |
|---|---|
| Max DC Voltage (V) | 102 V, 145 V |
| MPPT Voltage Range (V) | 30 ~ 80 V, 60 ~ 115 V |
| No. of MPPTs | 1 |
Connector Specification
| Grid Connection | Off grid |
|---|
Output (AC Side)
| Frequency (Hz) | 50 Hz / 60 Hz |
|---|---|
| Grid Connection | Off grid |
| Rated AC Current (A) | 15 A, 30 A, 60 A |
| Rated AC Voltage (V) | 220 / 230 V |
| Rated Output Power (kW) | 1500 W, 1800 W, 4500 W |
DB Specification
| Mounting Type | Wall‑mounted |
|---|---|
| Noise Level (dB) | ~ |
Mechanical Details
| Weight | 11.5 kg |
|---|---|
| Dimensions | 130 × 350 × 455 cm |
| Mounting Type | Wall‑mounted |
Smart Features
| Communication Interfaces | Wifi / Ethernet |
|---|
