Highlights
- Made in India at a state-of-the-art module production facility
- Extremely low failure rate with warranty claims under 0.07%
- Certified to withstand snow loads of up to 5400 Pa
- Industry-leading heavy-duty frame made from 6005-T6 aluminum alloy
- PID-resistant module ensures long-term performance and reliability

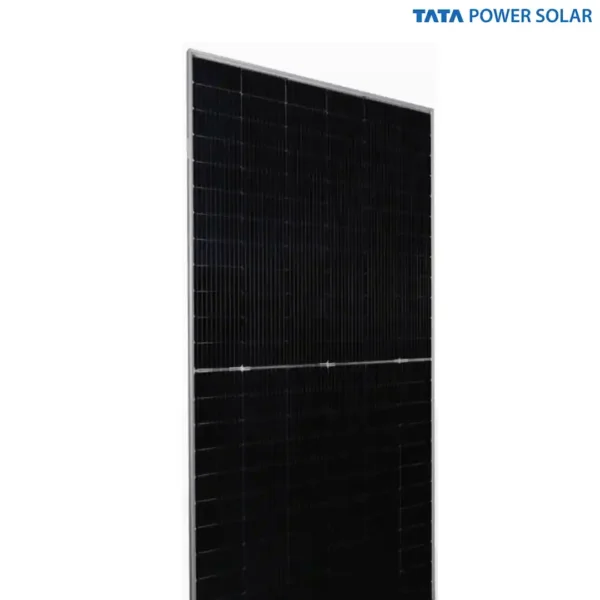

Tata Power TP540HG10B – High-Efficiency Glass-Glass Mono PERC Bifacial Solar Module for Superior Energy Yield
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Made in India at a state-of-the-art module production facility
- Extremely low failure rate with warranty claims under 0.07%
- Certified to withstand snow loads of up to 5400 Pa
- Industry-leading heavy-duty frame made from 6005-T6 aluminum alloy
- PID-resistant module ensures long-term performance and reliability
Get a Quote
Payment Methods:
Description
The Tata Power TP540HG10B is a cutting-edge glass-glass mono PERC bifacial solar module designed to maximize energy generation through advanced bifacial technology. Featuring dual glass layers, this module offers enhanced durability and protection against environmental factors while capturing sunlight from both the front and rear surfaces. This unique design significantly boosts energy yield, especially in installations with reflective surfaces or optimized mounting configurations, making it ideal for commercial, industrial, and utility-scale solar projects.
Built with high-quality monocrystalline PERC cells, the TP540HG10B delivers superior efficiency, excellent low-light performance, and reduced degradation over time. The bifacial technology not only increases total energy output but also ensures reliable performance under diverse climatic conditions. The robust glass-glass construction provides excellent resistance to mechanical stress, moisture ingress, and potential-induced degradation, extending the lifespan and operational reliability of the module.
The module is engineered for ease of installation and compatibility with a wide range of mounting systems, featuring high-quality junction boxes and MC4 compatible connectors for secure and weatherproof electrical connections. With certifications meeting international quality and safety standards, the TP540HG10B guarantees peace of mind for investors and system designers alike.
Backed by Tata Power’s extensive experience and trusted brand legacy, the TP540HG10B bifacial module offers a sustainable, high-performance solution that helps accelerate the transition to clean energy with greater energy yields and long-term value.
Specification
Electrical Specifications
| Bifaciality Factor (%) | ~ 70±10 % |
|---|---|
| Maximum Power Current (Imp) | 12.56 ~ 12.90 A |
| Maximum Power Voltage (Vmp) | 42.20 ~ 42.62 V |
| Maximum System Voltage (V) | 1500 V DC |
| Rear Side Gain (%) | ~ |
| Short Circuit Current (Isc) | 13.13 ~ 13.42 A |
| Temperature Coefficient | -0.37 |
Connector Specification
| Cables & Connectors | MC4 Compatible |
|---|
Mechanical Details
| Weight | 33 kg |
|---|---|
| Dimensions | 2278 × 1134 × 35 cm |
| Cables & Connectors | MC4 Compatible |
| Frame Material | Anodized aluminum |
| Glass Type | Tempered Glass |
| Junction Box Rating | IP68 |
| Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
General
| Efficiency (%) | 20.52 ~ 21.29 % |
|---|---|
| Cell Type | Monocrystalline PERC |
| No. of Cells | 144 |
| Power Rating (Wattage) | 530 WP, 535 WP, 540 Wp, 545 Wp, 550 WP, 560 WP |
| Panel Type | Bifacial, Monocrystalline, PERC |
| Warranty (Years) | 12 years of product warranty |
