Highlights

  • Cylindrical tabbing wire reduces shading for better energy capture
  • Split junction box improves performance in partial shading
  • Multi-busbar (MBB) design increases efficiency and crack resistance
  • M6 cell technology delivers higher output and lower LCOE
  • Low internal resistance minimizes power loss
  • Sleek all-black design enhances roof aesthetics
Brand: Vikram Solar

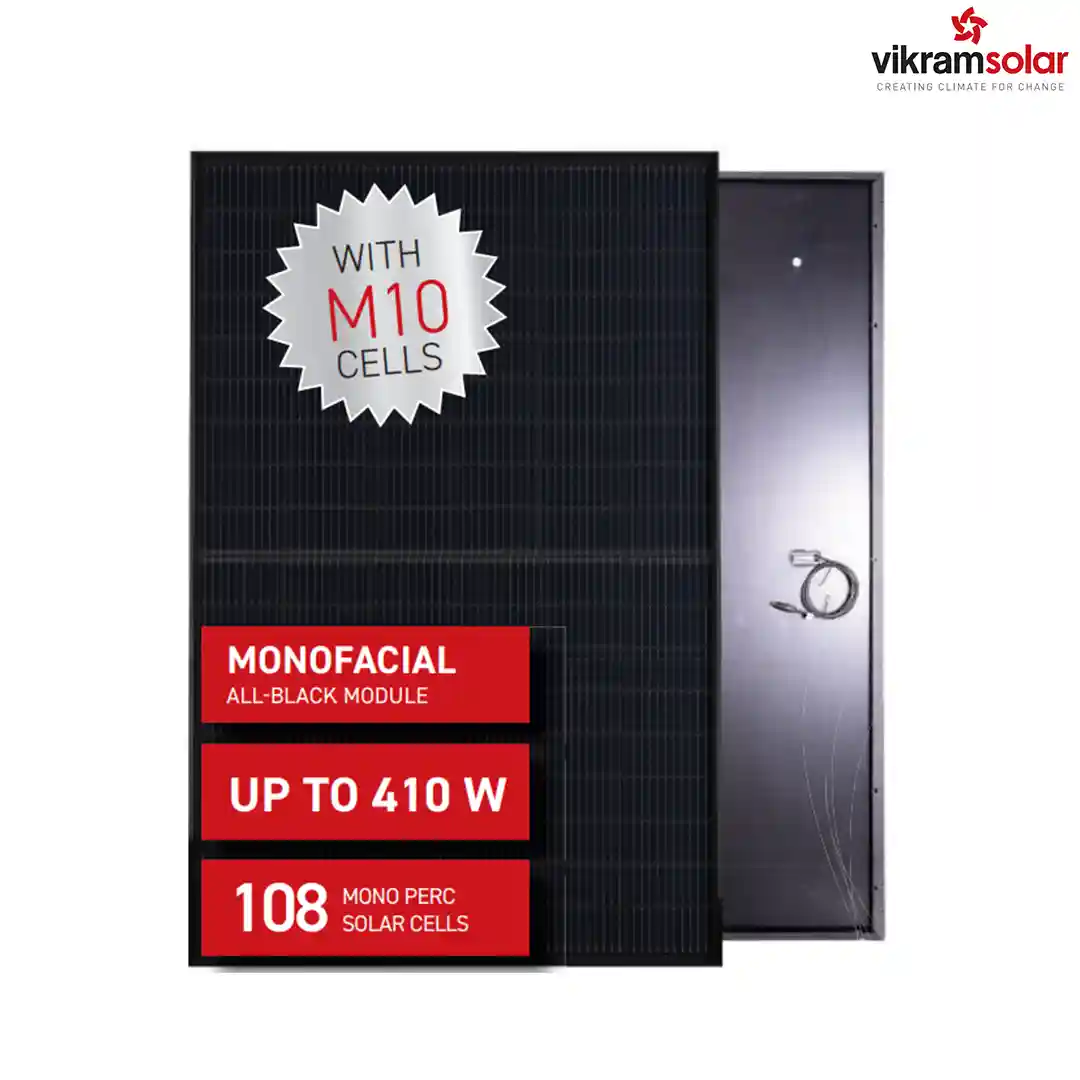

Vikram Solar SOMERA 380–410W – High-Efficiency Monofacial PV Modules

SKU: SP00038

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

Highlights

  • Cylindrical tabbing wire reduces shading for better energy capture
  • Split junction box improves performance in partial shading
  • Multi-busbar (MBB) design increases efficiency and crack resistance
  • M6 cell technology delivers higher output and lower LCOE
  • Low internal resistance minimizes power loss
  • Sleek all-black design enhances roof aesthetics
Brand: Vikram Solar

Get a Quote

    7 People watching this product now!

    Payment Methods:

    Payment methods

    Description

    The Vikram Solar SOMERA 380–410W monofacial PV modules are engineered to deliver exceptional performance, reliability, and efficiency for a wide range of solar applications. Designed with monocrystalline PERC half-cut cell technology, these modules offer superior power output and improved shading tolerance, making them an ideal solution for residential, commercial, and small utility-scale installations.

    With a power output range of 380 to 410 watts, the SOMERA modules deliver strong energy performance even under low-light or high-temperature conditions. The use of multi-busbar (MBB) technology ensures better current distribution, reduced resistive losses, and greater resistance to micro-cracks. This design boosts durability and extends the lifespan of the module, ensuring consistent returns over time.

    The SOMERA series incorporates cylindrical tabbing wires to reduce shading on the cell’s active area, thereby increasing the overall energy harvest. A split junction box with integrated bypass diodes allows the module to perform well under partial shading conditions, minimizing power losses. The modules are also designed to handle high mechanical loads from wind and snow, thanks to a robust aluminum alloy frame and durable tempered glass.

    A perfect combination of performance and aesthetics, especially with optional black frame variants, the Vikram Solar SOMERA 380–410W modules are fully compliant with international standards such as IEC 61215 and IEC 61730. Backed by Vikram Solar’s bankable reputation and strong warranty coverage, these modules offer a cost-effective path to clean, dependable solar power.

    Specification

    Electrical Specifications

    Bifaciality Factor (%)

    ~

    Maximum Power Current (Imp)

    12.34 ~ 12.82 A

    Maximum Power Voltage (Vmp)

    30.8 ~ 32 V

    Maximum System Voltage (V)

    1500 V DC

    Open Circuit Voltage (Voc)

    37.1 ~ 37.7 V

    Rear Side Gain (%)

    ~

    Short Circuit Current (Isc)

    37.1 ~ 37.7 A

    Temperature Coefficient

    -0.35 % / °C

    Mechanical Details

    Weight 21.3 kg
    Dimensions 1722 × 1134 × 35 cm
    Cables & Connectors

    MC4 Compatible

    Frame Material

    Anodized aluminum

    Glass Type

    High Tramission ARC

    ,

    Semi-tempered glass

    Junction Box Rating

    IP68

    Mechanical Load Capacity

    5400 Pa (front) / 2400 Pa (rear)

    General

    Cell Type

    Efficiency (%)

    No. of Cells

    108

    Power Rating (Wattage)

    ,

    ,

    ,

    ,

    ,

    ,

    Panel Type

    ,

    Warranty (Years)
