1 kW Hybrid Solar System
Original price was: ₹100,000.00.₹89,384.00Current price is: ₹89,384.00. Inc. GST
2 kW Hybrid Solar System
Original price was: ₹180,000.00.₹157,200.00Current price is: ₹157,200.00. Inc. GST
-14%
Highlights
- Battery Backup
- Grid Independent
- Extended Runtime
- Reliable Power
- Easy Maintenance
2 kW Off-Grid Solar System
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Original price was: ₹160,000.00.₹138,130.00Current price is: ₹138,130.00. Inc. GST
2
People watching this product now!
Highlights
- Battery Backup
- Grid Independent
- Extended Runtime
- Reliable Power
- Easy Maintenance
Get a Quote
Payment Methods:
Description
The 2 kW Off-Grid Solar System is a standalone solar solution designed for locations with frequent power cuts or no EB connection. It operates independently using battery storage to provide uninterrupted power supply.
Solar panels generate power during the day and charge the batteries. The stored energy is then used to run appliances during night-time or power outages, ensuring reliable electricity at all times.
This system is well-suited for rural homes, farmhouses, shops, clinics, and areas with unstable grid supply.
Best for:
Complete energy independence and backup power needs.

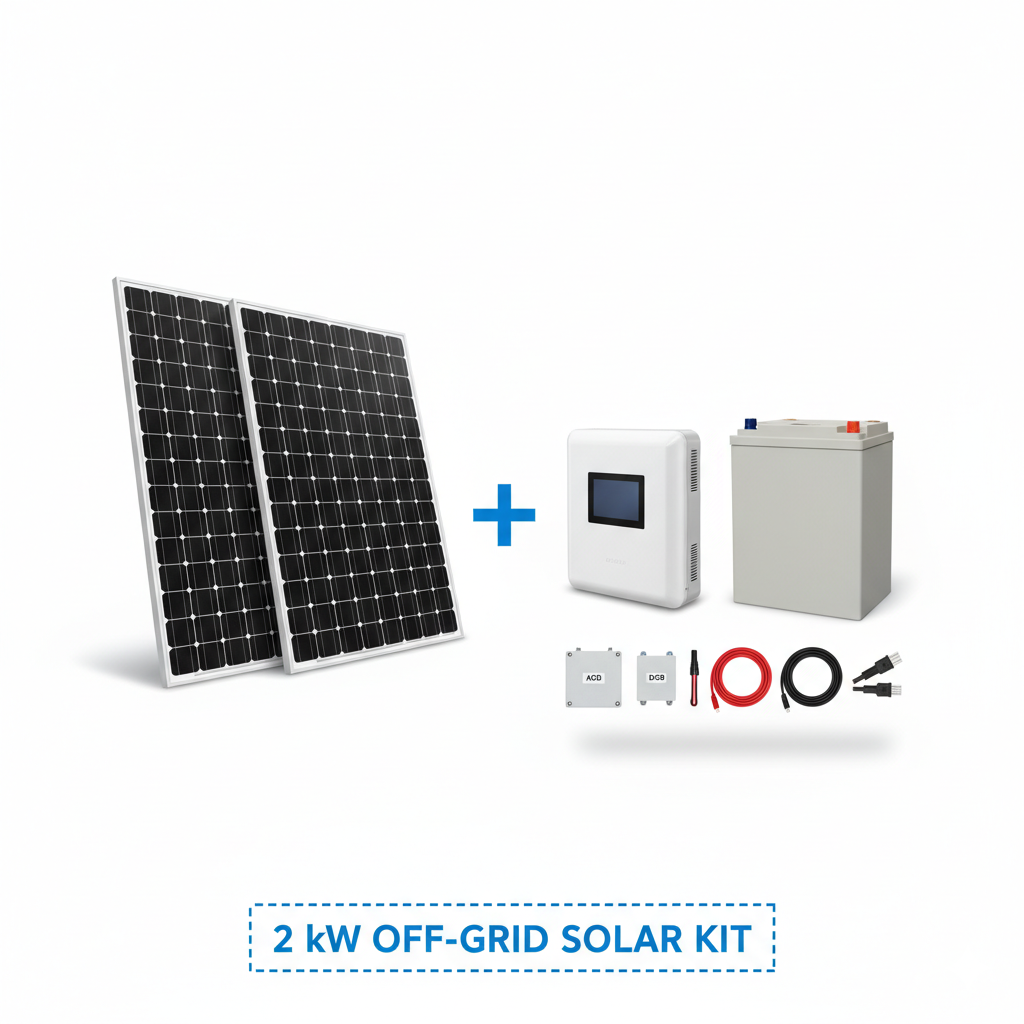

2kW Off-Grid Solar Kit – Components & Specifications
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Mono PERC / TOPCon (Non-DCR) | 4 – 5 Panels |
| 2 | Inverter | Off-Grid Solar Inverter | 1 Unit |
| 3 | Battery | Tubular / Lithium (as selected) | 2 – 3 Units |
| 4 | DCDB | IP65 Enclosure, Fuse, SPD, MCB | 1 Unit |
| 5 | ACDB | IP65 Enclosure, MCB, SPD | 1 Unit |
| 6 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 40 – 60 meters |
| 7 | DC Cable (6 sq.mm) | Copper, UV Resistant, Flexible | 10 – 15 meters |
| 8 | AC Cable | 3 Core, Copper Armoured | 15 – 20 meters |
| 9 | Battery Cable | Copper, Heavy Duty | 4 – 6 meters |
| 10 | MC-4 Connectors | Compatible with 4 / 6 sq.mm Cable | 4 – 5 Pairs |
| 11 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 12 | Earthing Kit (Earth Rod) | GI / Copper, 2m or 3m | 2 Units |
| 13 | Earthing Kit (Earth Chemical) | Chemical Compound for Grounding | 2 Bags |
| 14 | Earthing Kit (Earth Chamber) | Precast Chamber with Cover | 2 Units |
| 15 | Earthing Cables | Green PVC Insulated Copper Wire | 20 – 25 meters |
| 16 | Lugs | Copper, Crimp Type | As Required |
| 17 | Nut & Bolts | Stainless Steel, Anti-rust | As Required |
| 18 | Cable Ties (6 inch) | Nylon, UV Resistant | 75 pcs |
| 19 | Cable Ties (12 inch) | Nylon, UV Resistant | 40 pcs |
| 20 | PU Foam | Weatherproof Sealant | 1 – 2 Cans |
| 21 | Insulation Tape | ISI Marked, Electrical Grade | 4 Rolls |
| 22 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 15 – 20 meters |
Kit Specifications
| System Capacity | 2 kW |
|---|---|
| Panel Type | (DCR), Mono PERC, TopCon |
| No. of Panels | 4 ~ 5 Nos |
| Panel Brand | Adani Solar, Goldi Solar, Panasonic Solar, RenewSys, Solex Energy, UTL Solar, Waaree |
| Inverter Type | Hybrid Inverter, Off-Grid Solar Inverter, On-Grid Inverter |
| Inverter Brand | Deye, Growatt, Hoymiles, Sineng Electric, Solis, Sungrow, Sunways |
| Battery Included | Optional (Only for Off-Grid / Hybrid Systems) |
| Battery Type | Tubular / Lithium (Optional) |
| Warranty - Panels | 25 Years |
| Warranty - Inverter | 5 Years |
| MNRE Approved | Yes |
| Subsidy Eligible | Yes |
