3 kW Off-Grid Solar System
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Original price was: ₹211,000.00.₹200,800.00Current price is: ₹200,800.00. Inc. GST
9
People watching this product now!
Highlights
- Battery Backup
- Grid Independent
- Power Storage
- Reliable Supply
- Easy Maintenance
Get a Quote
Payment Methods:
Description
The 3 kW Off-Grid Solar System is designed for locations that experience frequent power cuts or have no reliable EB supply. This standalone system includes battery storage to ensure continuous power availability.
Solar panels generate electricity during the day to run loads and charge batteries. Stored energy is used during night-time or outages, making it suitable for essential and moderate household loads.
This system is well-suited for rural homes, farmhouses, clinics, and businesses requiring dependable backup power.
Best for:
Power reliability and energy independence.

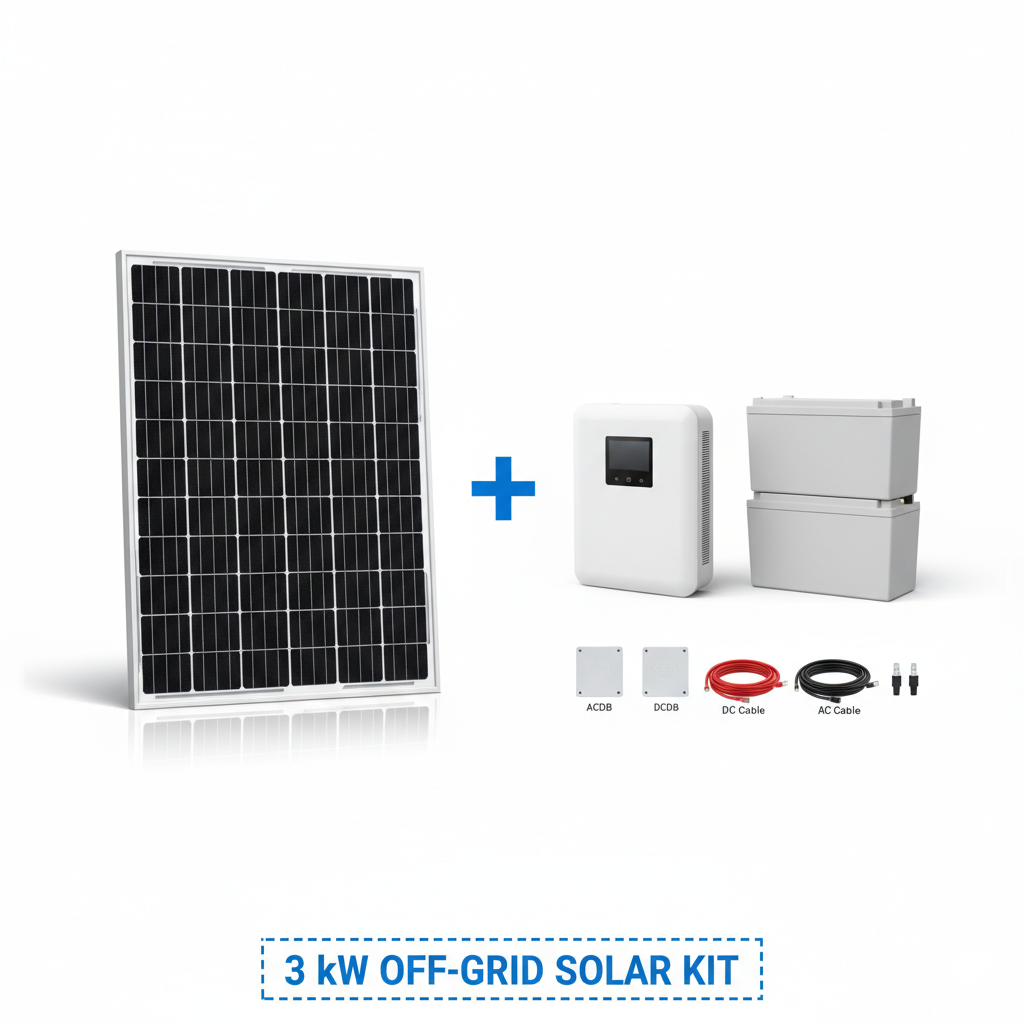

3kW Off-Grid Solar Kit – Components & Specifications
| Sr. No. | Component | Specification | Qty (Approx.) |
|---|---|---|---|
| 1 | PV Module | Mono PERC / TOPCon (Non-DCR) | 6 – 7 Panels |
| 2 | Inverter | Off-Grid Solar Inverter | 1 Unit |
| 3 | Battery | Tubular / Lithium (as selected) | 3 – 4 Units |
| 4 | DCDB (DC Distribution Box) | IP65 Enclosure, Fuse, SPD, MCB | 1 Unit |
| 5 | ACDB (AC Distribution Box) | IP65 Enclosure, MCB, SPD | 1 Unit |
| 6 | DC Cable (4 sq.mm) | Copper, UV Resistant, Flexible | 50 – 70 meters |
7 |
DC Cable (6 sq.mm) |
Copper, UV Resistant, Flexible |
15 – 20 meters |
8 |
AC Cable (Inverter to ACDB) |
3 Core, Copper Armoured |
20 – 25 meters |
| 9 | Battery Cable | Copper, Heavy Duty | 6 – 8 meters |
| 10 | MC-4 Connectors | Compatible with 4 / 6 sq.mm Cable | 6 – 7 Pairs |
| 11 | Lightning Arrestor | IEC Certified, Copper Strip | 1 Unit |
| 12 | Earthing Kit (Earth Rod) | GI / Copper, 2m or 3m | 2 Units |
| 13 | Earthing Kit (Earth Chemical) | Chemical Compound for Grounding | 2 Bags |
| 14 | Earthing Kit (Earth Chamber) | Precast Chamber with Cover | 2 Units |
| 15 | Earthing Cables | Green PVC Insulated Copper Wire | 25 – 30 meters |
| 16 | Lugs | Copper, Crimp Type | As Required |
| 17 | Nut & Bolts | Stainless Steel, Anti-rust | As Required |
| 18 | Cable Ties (6 inch) | Nylon, UV Resistant | 100 pcs |
| 19 | Cable Ties (12 inch) | Nylon, UV Resistant | 50 pcs |
| 20 | PU Foam | Weatherproof Sealant | 1 – 2 Cans |
| 21 | Insulation Tape | ISI Marked, Electrical Grade | 5 Rolls |
| 22 | DC Cable (2.5 sq.mm) | Copper, UV Resistant | 20 – 25 meters |
Kit Specifications
| System Capacity | 3 kW |
|---|---|
| Panel Type | (DCR), Mono PERC, TopCon |
| No. of Panels | 6 ~ 7 Nos |
| Panel Brand | Adani Solar, Goldi Solar, Panasonic Solar, RenewSys, Solex Energy, Waaree |
| Inverter Type | Off-Grid Solar Inverter |
| Inverter Brand | Deye, Growatt, Hoymiles, Sineng Electric, Solis, Sungrow, Sunways |
| Battery Included | Optional (Only for Off-Grid / Hybrid Systems) |
| Battery Type | Tubular / Lithium (Optional) |
| Warranty - Panels | 25 Years |
| Warranty - Inverter | 5 Years |
| MNRE Approved | Yes |
| Subsidy Eligible | Yes (for residential under DCR) |
