Highlights
- Highest reliability & enhanced crack tolerance MBB module
- Sustain heavy snow & wind loads (5400 Pa & 2400 Pa)
- Best in class thermal coefficients
- Highest commercial gains, lower LCOE
- Better weak light performance
- Excellent PID resistance

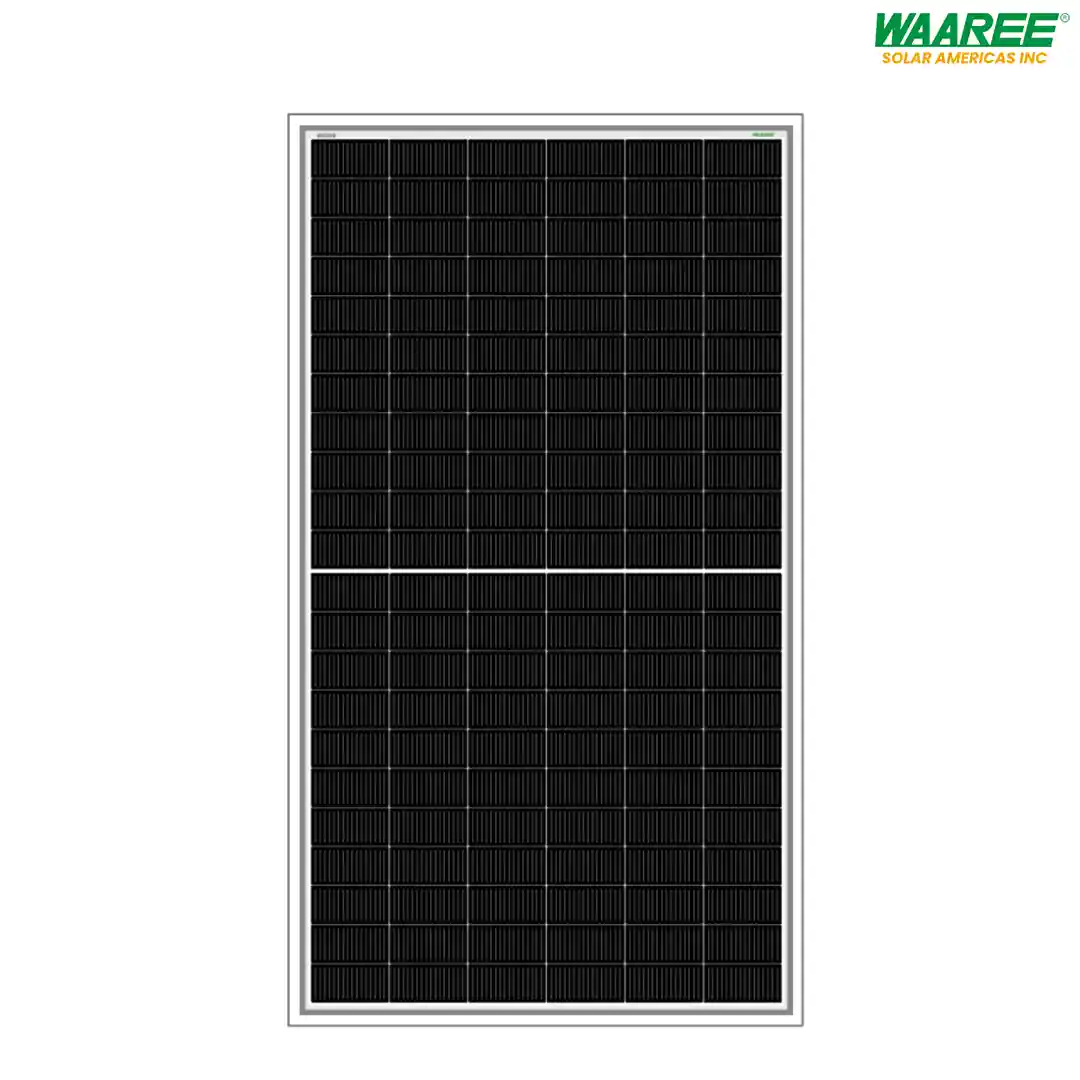

ELITE R Series | 600–635 W Bifacial N-Type TOPCon Dual Glass Solar Module | WAAREE
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Highest reliability & enhanced crack tolerance MBB module
- Sustain heavy snow & wind loads (5400 Pa & 2400 Pa)
- Best in class thermal coefficients
- Highest commercial gains, lower LCOE
- Better weak light performance
- Excellent PID resistance
Get a Quote
Payment Methods:
Description
The ELITE R Series is a high-efficiency, high-output bifacial solar module featuring advanced N-Type TOPCon technology. With a power range of 600 to 635 W, this series is built for utility-scale solar plants, commercial rooftops, and large C&I installations demanding reliable, next-generation performance.
Built using N-Type cells and 210 mm large-format wafers, the ELITE R modules deliver excellent energy conversion efficiency with reduced power loss over time. Unlike traditional P-type modules, these panels are LID-free and PID-resistant, offering superior long-term yield with minimal degradation.
The bifacial, dual-glass construction allows the module to capture sunlight from both the front and rear sides, delivering up to 25% additional energy gain depending on ground reflectivity. The dual-glass build not only enhances mechanical strength but also provides increased protection against environmental stressors like UV, humidity, and sand.
Encased in a robust anodized aluminium frame, and engineered for 1500 V DC systems, the ELITE R Series combines cutting-edge cell tech with proven durability. It’s a premium module for investors, EPCs, and developers looking to maximize yield, reduce LCOE, and ensure future-proof system design.
Specification
Electrical Specifications
| Bifaciality Factor (%) |
~ |
|---|---|
| Maximum Power Current (Imp) |
14.80 ~ 15.15 A |
| Maximum Power Voltage (Vmp) |
40.54 ~ 41.91 V |
| Maximum System Voltage (V) |
1500 V DC |
| Open Circuit Voltage (Voc) |
48.30 ~ 49.70 V |
| Rear Side Gain (%) |
~ |
| Short Circuit Current (Isc) |
15.82 ~ 16.17 A |
| Temperature Coefficient |
-0.30 |
Connector Specification
| Cables & Connectors |
MC4 Compatible |
|---|
Mechanical Details
| Weight | 33.8 kg |
|---|---|
| Dimensions | 2382 × 1132 × 35 cm |
| Cables & Connectors |
MC4 Compatible |
| Frame Material |
Anodized aluminum |
| Glass Type |
Tempered Glass |
| Junction Box Rating |
IP68 |
| Mechanical Load Capacity |
5400 Pa (front) / 2400 Pa (rear) |
