Highlights

  • Industry’s best (0.3%) warranted degradation rate
  • Superior temperature coefficient, spectral, and shading response
  • No power loss from LID or LeTID
  • Anti-reflective coated glass enhances energy production
Brand: First Class

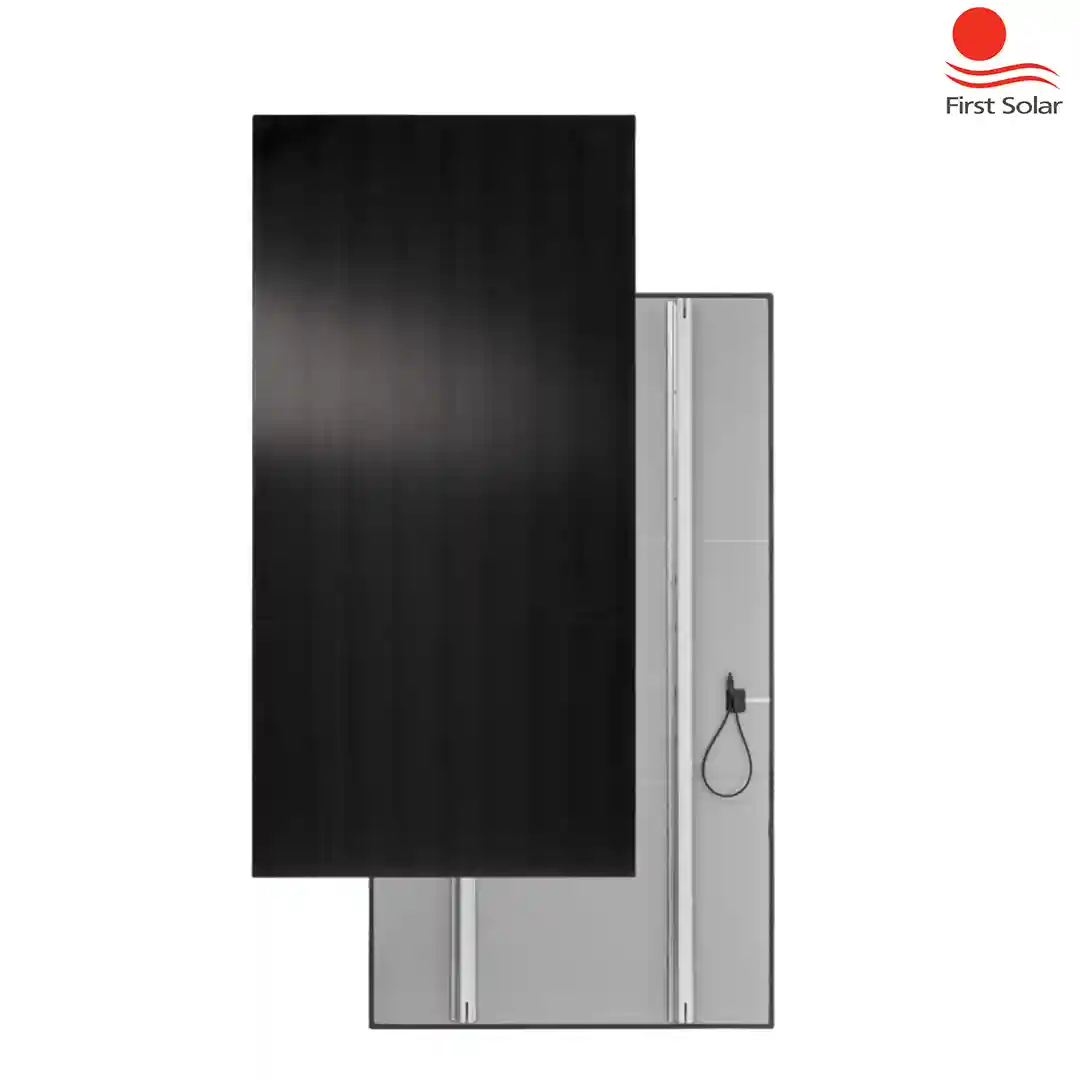

Series 7 TR1 | 525–550 W Thin Film Solar Module | First Solar

SKU: SP00018

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

This product is currently out of stock and unavailable.

Highlights

  • Industry’s best (0.3%) warranted degradation rate
  • Superior temperature coefficient, spectral, and shading response
  • No power loss from LID or LeTID
  • Anti-reflective coated glass enhances energy production
Brand: First Class

Get a Quote

    7 People watching this product now!

    Payment Methods:

    Payment methods

    Description

    The Series 7 TR1 is a high-output, utility-grade thin film solar module engineered and manufactured in the United States. Delivering between 525 and 550 Watts, this module is optimized for large-scale solar projects requiring high energy yield, reliability, and long-term performance in diverse environmental conditions.

    Featuring advanced thin film technology, the Series 7 TR1 performs exceptionally well in high-temperature, low-light, and partially shaded environments. It offers a lower temperature coefficient compared to crystalline modules, ensuring better output under real-world heat and irradiance conditions.

    The frameless dual-glass design offers durability, self-cleaning surfaces, and resistance to potential-induced degradation (PID) and light-induced degradation (LID). With a robust structure and high mechanical load tolerance, the Series 7 TR1 is built for long-term field operation with minimal maintenance.

    Made in the U.S., this module meets requirements for domestic content incentives, including IRA compliance and Buy American provisions, making it an excellent choice for public and utility-scale installations aiming for local sourcing benefits.

    Specification

    Electrical Specifications

    Bifaciality Factor (%)~
    Maximum Power Current (Imp)2.82 ~ 2.89 A
    Maximum Power Voltage (Vmp)186.0 ~ 190.4 V
    Maximum System Voltage (V)1500 V DC
    Open Circuit Voltage (Voc)226.1 ~ 228.8 V
    Rear Side Gain (%)~
    Short Circuit Current (Isc)3.04 ~ 3.08 A
    Temperature Coefficient-0.28% /°C

    Connector Specification

    Cables & ConnectorsTE Connectivity PV4-S

    Mechanical Details

    Weight39.7 kg
    Dimensions2300 × 1216 cm
    Cables & ConnectorsTE Connectivity PV4-S
    Frame MaterialSilicone
    Glass TypeHeat strengthened
    Junction Box RatingIP68
    Mechanical Load Capacity5400 Pa (front) / 2400 Pa (rear)

    General

    Cell Type
    Efficiency (%)
    No. of Cells268
    Power Rating (Wattage)
    Panel Type
    Warranty (Years)
