Highlights
- Highest reliability & enhanced crack tolerance MBB module
- Sustain heavy snow & windloads (5400Pa&2400Pa)
- Best in class thermal coefficients
- Highest commercial gains, lower LCOE
- Better weak light performance
- Excellent PID resistance

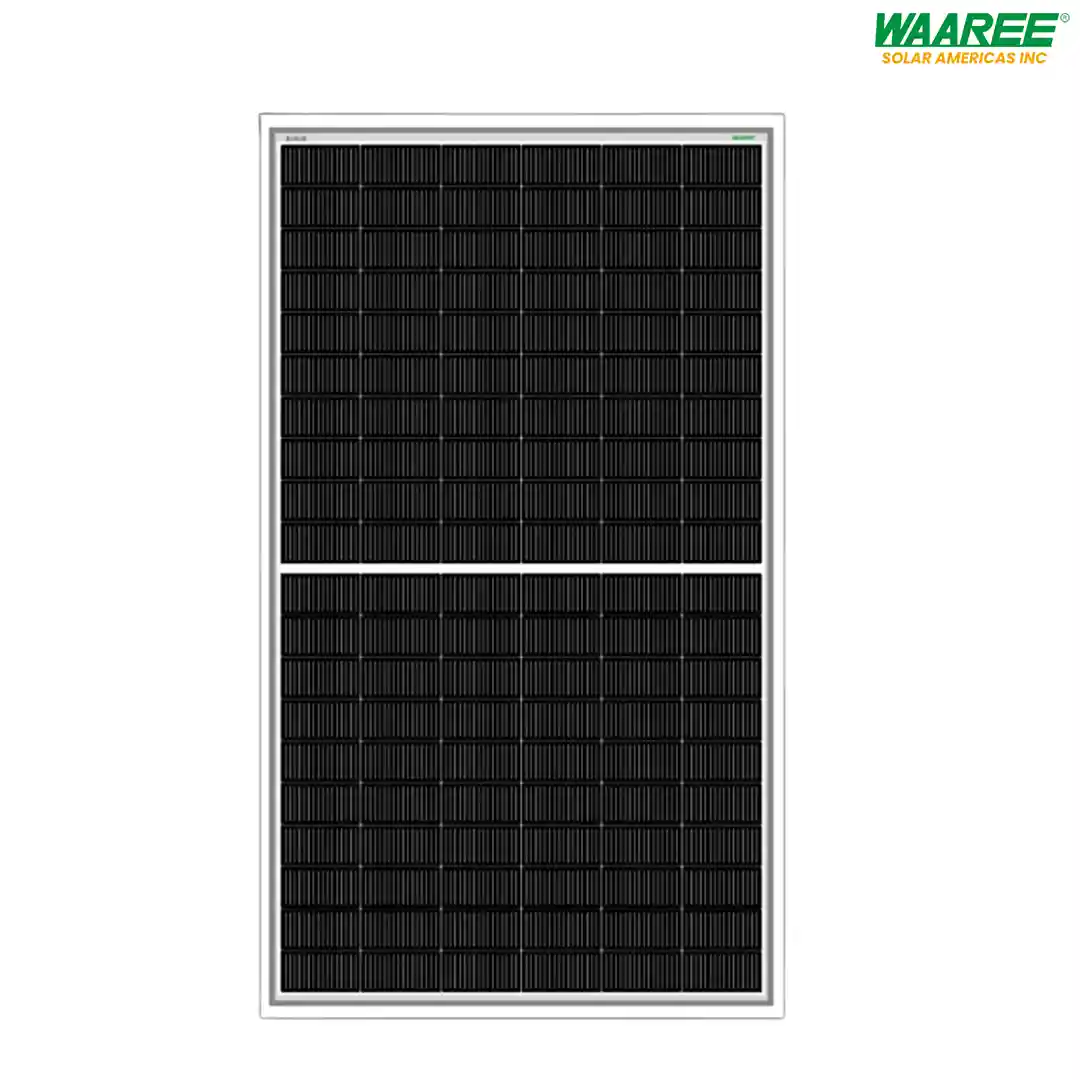

ELITE SERIES N-TYPE BiN-06-465 to BiN-06-495 Framed Dual Glass Bifacial Module
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Highest reliability & enhanced crack tolerance MBB module
- Sustain heavy snow & windloads (5400Pa&2400Pa)
- Best in class thermal coefficients
- Highest commercial gains, lower LCOE
- Better weak light performance
- Excellent PID resistance
Get a Quote
Payment Methods:
Description
The ELITE SERIES N-TYPE BiN-06-465 to BiN-06-495 is a high-performance framed bifacial solar module built with cutting-edge n-type cell technology. Delivering superior efficiency and reliability, this module is designed to meet the demands of modern utility-scale and commercial solar installations.
Featuring dual-glass construction, the module ensures enhanced durability, weather resistance, and longer operational life. The bifacial design captures sunlight from both sides, significantly increasing energy generation and optimizing output in high-albedo environments.
Engineered to minimize degradation and maximize performance under low-light and high-temperature conditions, the ELITE SERIES offers low LID and high bifacial gain. This makes it ideal for projects aiming for higher energy yields and long-term returns.
Specification
Electrical Specifications
| Bifaciality Factor (%) | 70 ~ 80 % |
|---|---|
| Maximum Power Current (Imp) | 12.86 ~ 13.34 A |
| Maximum Power Voltage (Vmp) | 36.16 ~ 37.11 V |
| Maximum System Voltage (V) | 1500 V DC |
| Open Circuit Voltage (Voc) | 43.02 ~ 44.16 V |
| Rear Side Gain (%) | ~ |
| Short Circuit Current (Isc) | 13.64 ~ 14.06 A |
| Temperature Coefficient | -0.30 |
Connector Specification
| Cables & Connectors | MC4 Compatible |
|---|

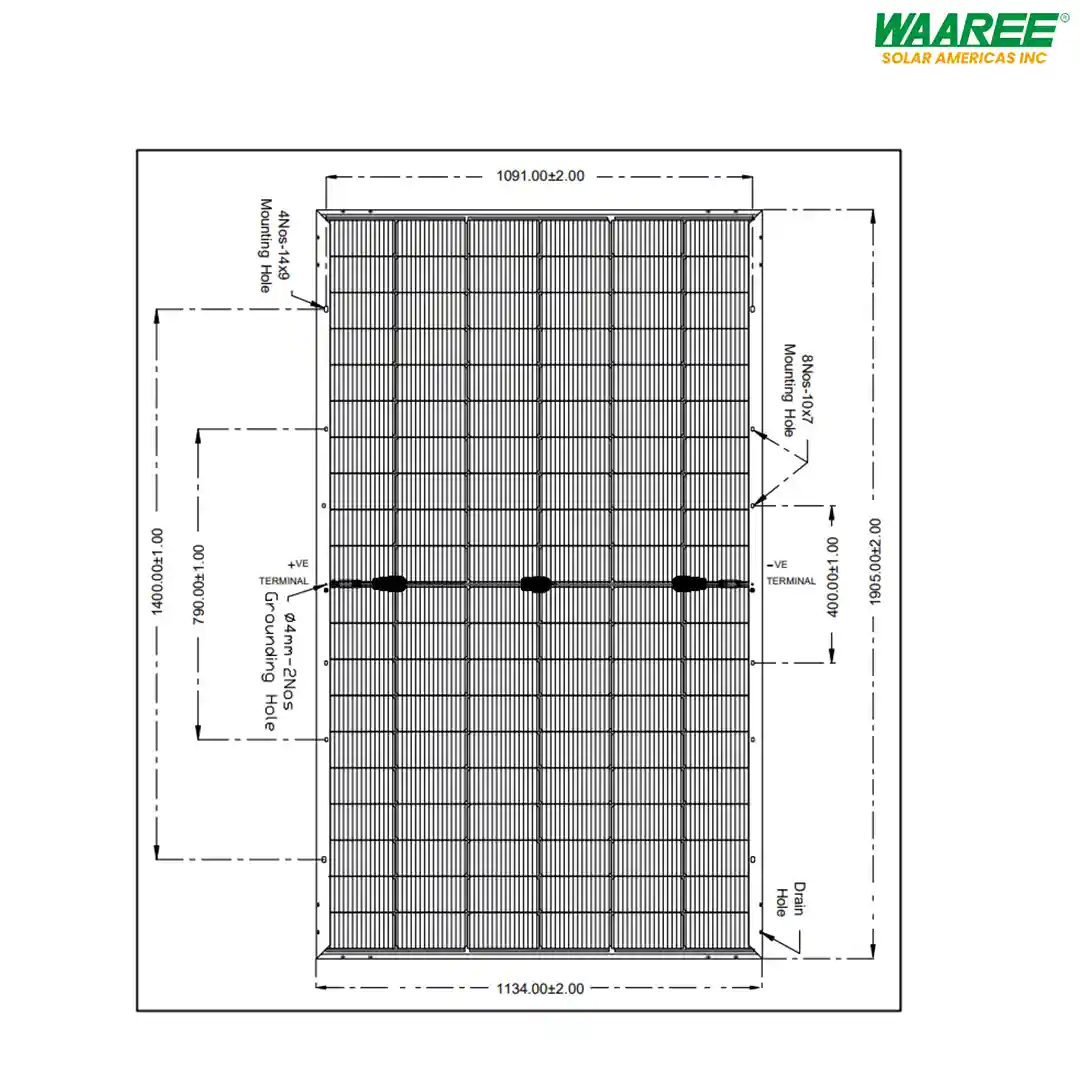

Mechanical Details
| Weight | 27 kg |
|---|---|
| Dimensions | 1905 × 1134 × 33 cm |
| Cables & Connectors | MC4 Compatible |
| Frame Material | Anodized aluminum |
| Glass Type | Semi-tempered glass |
| Junction Box Rating | IP68 |
| Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
General
| Cell Type | N-Type |
|---|---|
| Efficiency (%) | 19.63 ~ 20.90 % |
| No. of Cells | 120 |
| Power Rating (Wattage) | 465 WP, 470 WP, 475 WP, 480 WP, 485 WP, 490 WP, 495 WP |
| Panel Type | Bifacial, Monocrystalline |
| Warranty (Years) | 12 years of product warranty |
