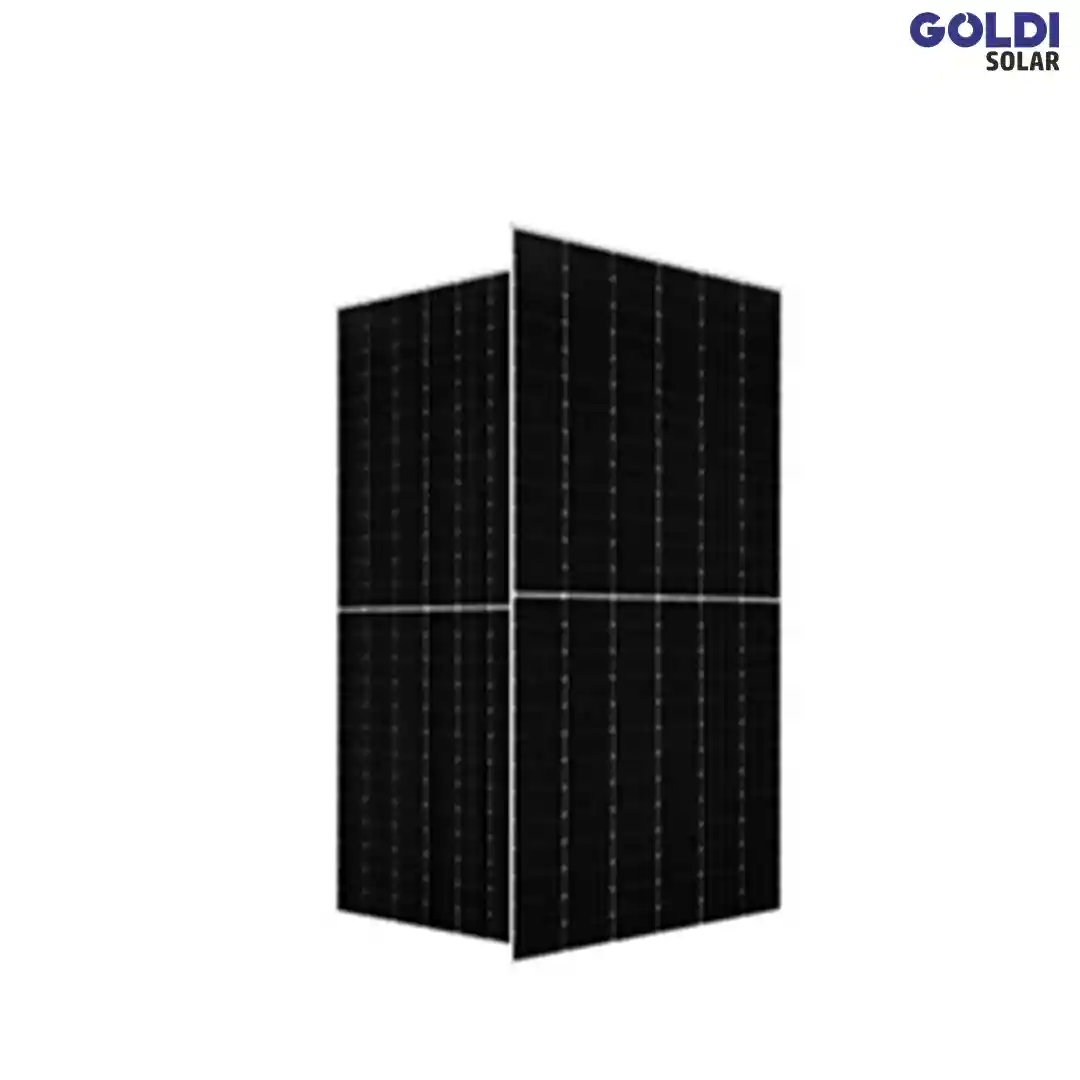

GOLDI GS10-B144-GF – 525–560 Wp High-Efficiency Mono PERC Bifacial Solar Module
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- 525–560Wp output
- Bifacial energy gain
- Half-cut mono cells
- High efficiency module
- 25-year performance
Get a Quote
Payment Methods:
Description
The GOLDI GS10-B144-GF (525–560 Wp) solar module is a premium high-output panel engineered with advanced Mono PERC Half-Cut technology to deliver exceptional efficiency and long-term energy performance. Designed for commercial rooftops, industrial facilities, and utility-scale power plants, this module provides a reliable and powerful solution for customers seeking high energy yield with durable construction. Its higher wattage range reduces the total number of panels required, maximizing generation while saving installation space.
Built with 144 half-cut mono cells, the module offers improved shade tolerance, reduced internal losses, and enhanced temperature performance. The multi-busbar (MBB) design further strengthens electrical conductivity and minimizes the impact of micro-cracks, ensuring stable performance over time. Whether installed in diffused light or high-temperature environments, the GS10 series maintains high output efficiency across diverse Indian climatic conditions.
Featuring bifacial generation capability, the GS10-B144-GF captures sunlight on both front and rear surfaces, boosting overall kWh production—especially in installations with reflective ground surfaces or elevated structures. The module’s robust glass/glass construction provides superior mechanical strength, high resistance to PID, and greater protection against moisture, making it ideal for long-term outdoor installations.
Backed by GOLDI Solar’s strong manufacturing quality and extensive performance warranties, this module guarantees reliability, safety, and consistent power output over a 25+ year operational life. It is an excellent choice for EPCs, developers, and industries looking for a trusted, high-performing module that delivers maximum energy harvest and long-term durability.
Specification
Electrical Specifications
| Maximum Power Voltage (Vmp) | 43.35 |
|---|---|
| Maximum Power Current (Imp) | 12.91 A – 13.34 A |
| Short Circuit Current (Isc) | 13.42 A – 13.91 A |
| Maximum System Voltage (V) | 1500 V DC |
| Rear Side Gain (%) | ~ |
| Temperature Coefficient | -0.32% /°C |

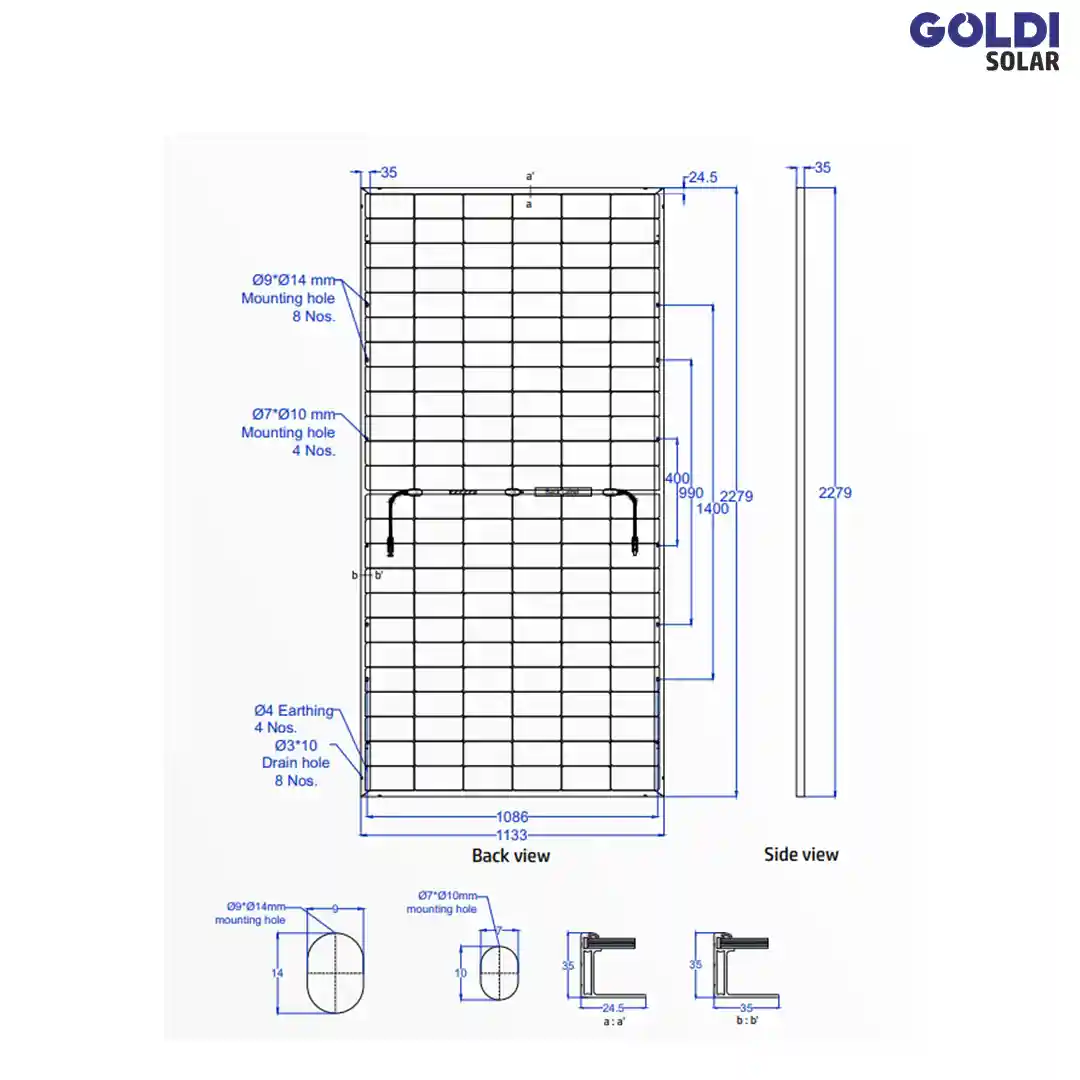

Mechanical Details
| Weight | 32 kg |
|---|---|
| Dimensions | 227.9 × 113.3 × 3.5 cm |
| Junction Box Rating | IP 68 certified, 3 diodes, Split junction box |
| Glass Type | 2.0 mm, Heat Strengthened Glass, High Tramission ARC |
| Mechanical Load Capacity | Snow load 5400 Pa, Wind load 2400 Pa |
| Frame Material | Silver Anodized Aluminium Alloy |
General
| Efficiency (%) | 20.33% – 21.70% |
|---|---|
| No. of Cells | 144 pcs monocrystalline Silicon (PERC), Multi BB |
| Panel Type | Bifacial, Monocrystalline |
| Power Rating (Wattage) | 525 WP, 530 WP, 535 WP, 540 Wp, 545 Wp, 550 WP, 555 WP, 560 WP |
| Warranty (Years) | 12 years for materials and processing, 30 years for linear power output |
