Highlights
- 530–560W output
- Mono PERC half-cut
- High efficiency module
- MBB cell design
- 25-year performance

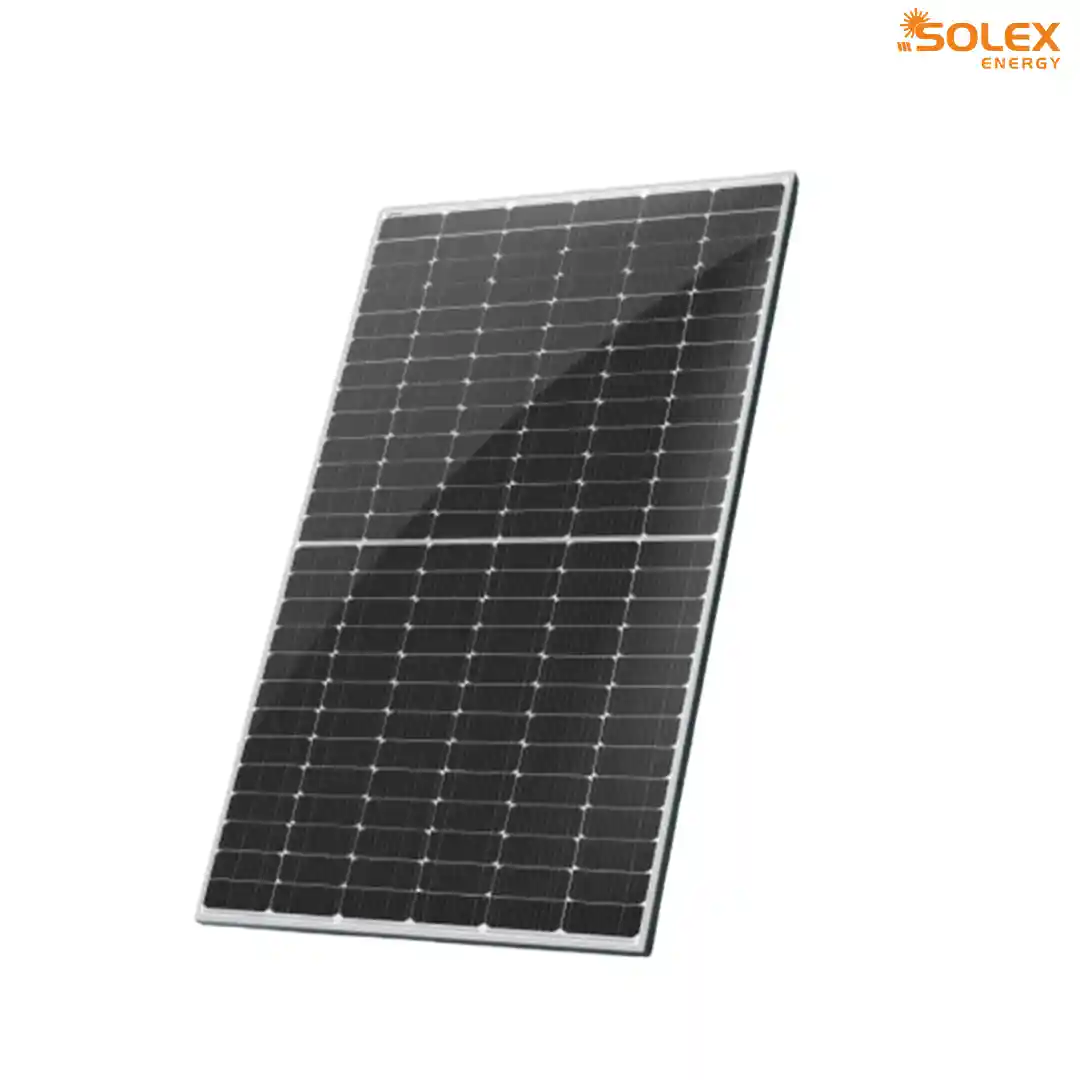

Solex TAPI Series – 530–560 W High-Efficiency Mono PERC Half-Cut Solar Module
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- 530–560W output
- Mono PERC half-cut
- High efficiency module
- MBB cell design
- 25-year performance
Get a Quote
Payment Methods:
Description
The Solex TAPI Series (530–560 W) is a high-performance solar module engineered with advanced Mono PERC Half-Cut cell technology to deliver top-tier efficiency and long-term energy reliability. Designed for commercial rooftops, industrial facilities, and utility-scale solar farms, this high-wattage module provides exceptional output while reducing the number of panels required for large systems. Its superior power density allows for optimized installations, increased energy generation, and improved ROI for all project sizes.
Built with 144 half-cut mono cells, the TAPI series ensures reduced resistive losses, improved thermal performance, and enhanced shade tolerance. This makes the module highly effective in real-world conditions, including early morning, late evening, cloudy weather, and partially shaded environments. The multi-busbar (MBB) design enhances current flow, strengthens module durability, and minimizes the impact of micro-cracks for long-term stable output.
The TAPI Series features robust construction with a high-strength frame and tempered glass, providing excellent resistance against wind loads, humidity, dust, and extreme temperatures. Its PID-resistant encapsulation material ensures long-term durability and low degradation, delivering consistent energy performance over a 25+ year lifespan. With proven performance in diverse Indian climates, these modules are perfectly suited for ground-mounted systems, elevated structures, and large-scale solar parks.
Backed by Solex’s high-quality manufacturing standards and strong performance warranty, the TAPI Series modules offer dependable and efficient solar power generation. This makes them a preferred choice for EPC contractors, developers, and businesses seeking a reliable, high-output, and cost-effective solar panel solution.
Specification

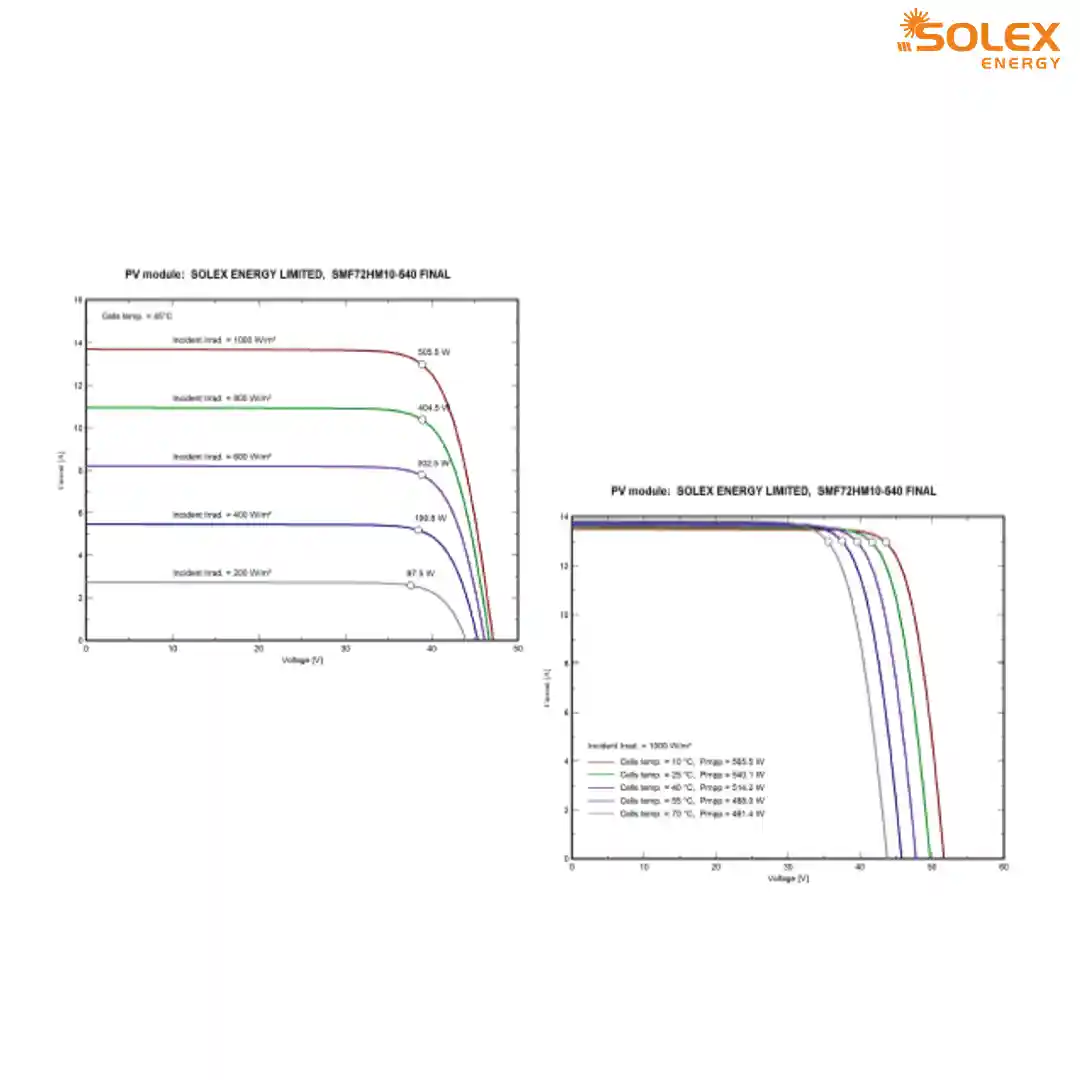

Electrical Specifications
| Maximum Power Voltage (Vmp) |
49.5 ~ 50 V |
|---|---|
| Maximum Power Current (Imp) |
12.76 A – 13.23 A |
| Short Circuit Current (Isc) |
13.43 A – 13.91 A |
| Maximum System Voltage (V) |
1500/1000 VDC |
| Rear Side Gain (%) |
~ |
| Temperature Coefficient |
-0.28%/°C |

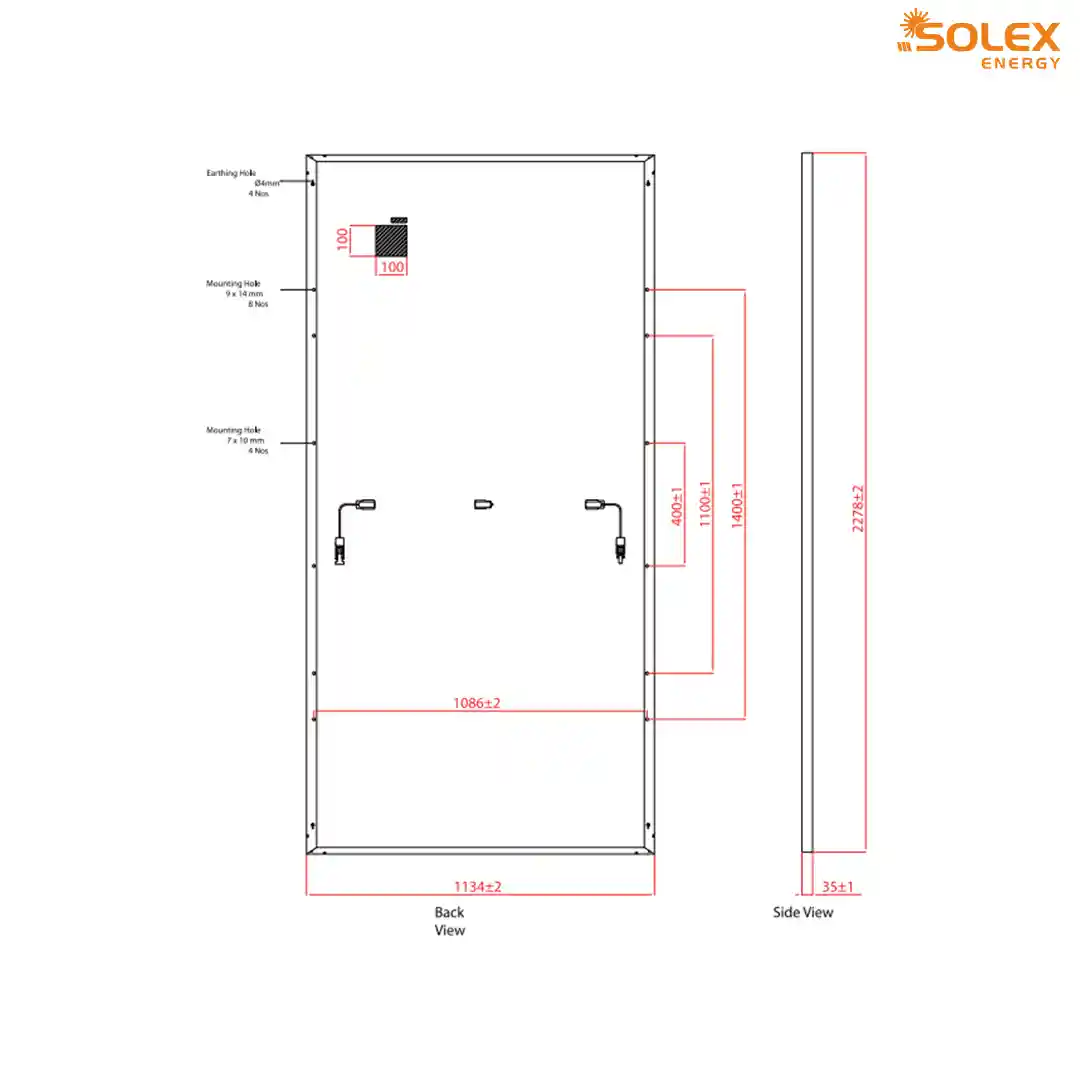

Mechanical Details
| Weight | 28 kg |
|---|---|
| Dimensions | 227.8 × 113.4 × 3.5 cm |
| Junction Box Rating |
IP68 certified, 3 diodes junction box |
| Glass Type |
3.2 mm ,High Tramission ARC ,Tempered Glass |
| Mechanical Load Capacity |
Snow load 5400 Pa, Wind load 2400 Pa |
| Frame Material |
Silver Anodized Aluminium Alloy |
General
| Efficiency (%) | |
|---|---|
| No. of Cells |
144 Half Cut Cell |
| Panel Type | , |
| Power Rating (Wattage) | , , , , , , |
| Warranty (Years) |
12-years product warranty, 30-years linear performance warranty |
