Highlights
- Advanced multi-busbar, PERC, Ga-doped, half-cut M10 cells with smart soldering technology.
- Designed to withstand heavy snow, hail, and wind loads with mechanical strength up to 5400 Pa (snow) and 2400 Pa (wind).
- Reliable modules with extended lifespan; resistant to hotspots and microcracks, with only 0.45% annual linear degradation over 30 years.
- Excellent low-light performance for higher energy output during early morning, sunset, and cloudy conditions.
- Ideal for large-scale utility and ground-mounted solar projects.

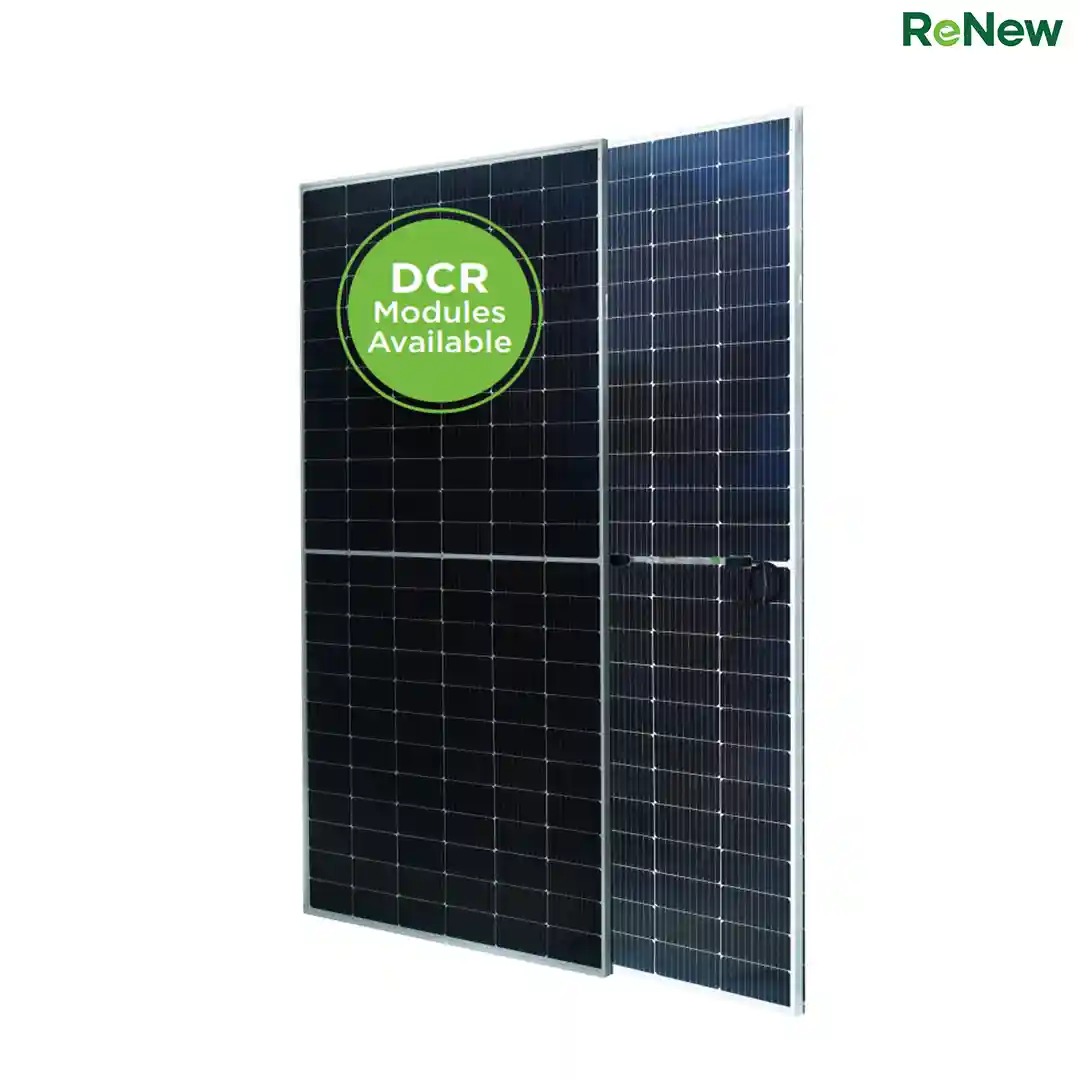

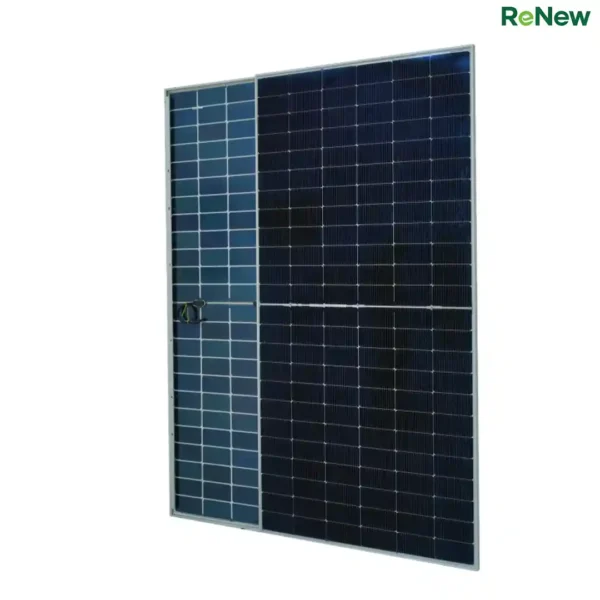

Renew Power RPS2MH72BDXXX – High-Efficiency 530–560W Bifacial Mono PERC Solar Module with M10 Half-Cut Cells for Enhanced Energy Yield
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Advanced multi-busbar, PERC, Ga-doped, half-cut M10 cells with smart soldering technology.
- Designed to withstand heavy snow, hail, and wind loads with mechanical strength up to 5400 Pa (snow) and 2400 Pa (wind).
- Reliable modules with extended lifespan; resistant to hotspots and microcracks, with only 0.45% annual linear degradation over 30 years.
- Excellent low-light performance for higher energy output during early morning, sunset, and cloudy conditions.
- Ideal for large-scale utility and ground-mounted solar projects.
Get a Quote
Payment Methods:
Description
The Renew Power RPS2MH72BDXXX is a next-generation bifacial mono PERC solar module designed to deliver high output and maximum reliability for utility-scale and commercial solar installations. Featuring advanced M10 monocrystalline half-cut cells, this module offers a power output range of 530W to 560W, with higher energy conversion efficiency and improved performance in real-world conditions.
Built with bifacial technology, the module can harvest additional energy from the rear side by capturing reflected sunlight, significantly increasing total energy generation—especially on high-reflectivity surfaces like concrete or sand. With a bifacial gain of up to 25%, this technology helps reduce the Levelized Cost of Energy (LCOE) while maximizing return on investment over the system’s lifetime.
The RPS2MH72BDXXX module features a durable dual-glass construction or a transparent backsheet option, offering long-term weather resistance, enhanced mechanical strength, and PID resistance. Its heavy-duty aluminum frame ensures structural stability under harsh conditions, certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa.
Engineered with industry-standard MC4 compatible connectors and IP68-rated junction boxes, the module is easy to install and integrates seamlessly into modern PV systems. Manufactured under stringent quality controls, and backed by the trust of Renew Power’s reputation in clean energy, this high-performance module is ideal for developers and EPCs seeking efficiency, durability, and value.
Specification
Electrical Specifications
| Bifaciality Factor (%) | ~ Upto 70% |
|---|---|
| Maximum Power Current (Imp) | 13.08 ~ 13.61 A |
| Maximum Power Voltage (Vmp) | 40.53 ~ 41.15 V |
| Maximum System Voltage (V) | 1500 V DC |
| Open Circuit Voltage (Voc) | 49.48 ~ 49.84 V |
| Rear Side Gain (%) | ~ |
| Short Circuit Current (Isc) | 13.71 ~ 14.22 A |
| Temperature Coefficient | -0.32% /°C |
Connector Specification
| Cables & Connectors | MC4 Compatible |
|---|
Mechanical Details
| Weight | 32.5 kg |
|---|---|
| Dimensions | 2278 × 1134 × 30 cm |
| Cables & Connectors | MC4 Compatible |
| Frame Material | Anodized aluminum |
| Glass Type | High Tramission ARC, Tempered Glass |
| Junction Box Rating | IP68 |
| Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
General
| Cell Type | Monocrystalline PERC |
|---|---|
| Efficiency (%) | 20.52 ~ 21.68 % |
| No. of Cells | 144 |
| Power Rating (Wattage) | 530 WP, 535 WP, 540 Wp, 545 Wp, 550 WP, 555 WP, 560 WP |
| Panel Type | Bifacial, Monocrystalline, PERC |
| Warranty (Years) | 12 years of product warranty |
