Highlights
- Advanced TOPCon technology with 16 busbars, M10 half-cut cells, smart soldering, and zero LID for high efficiency and durability
- Engineered to endure harsh conditions with 2400 Pa wind load and 5400 Pa snow load resistance
- Superior long-term performance with only 1% first-year degradation and excellent PID resistance
- Delivers high performance tolerance and stable output in hot climates due to low temperature coefficient
- Excellent low-light performance in cloudy, rainy, or early/late-day conditions

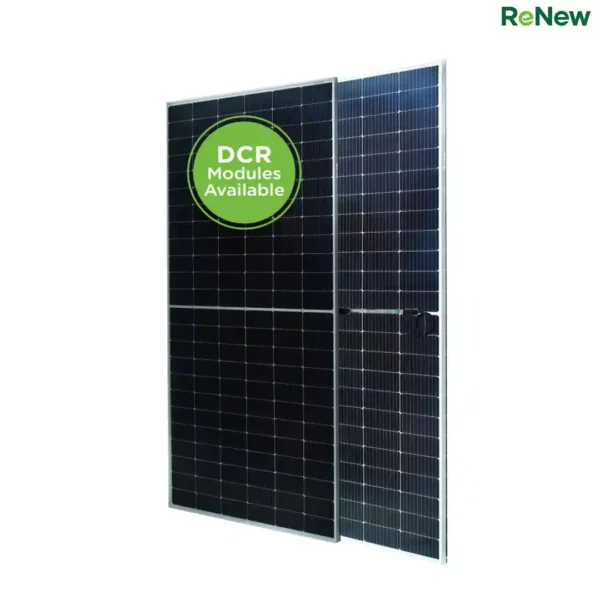

ReNew RPS2MH72BDXXX – High-Power 570–590W Bifacial TOPCon Mono PERC Solar Module with M10 Cells
Freedom Sale
Hurry and get discounts on all solar products up to 10%
FREEDOM10
Highlights
- Advanced TOPCon technology with 16 busbars, M10 half-cut cells, smart soldering, and zero LID for high efficiency and durability
- Engineered to endure harsh conditions with 2400 Pa wind load and 5400 Pa snow load resistance
- Superior long-term performance with only 1% first-year degradation and excellent PID resistance
- Delivers high performance tolerance and stable output in hot climates due to low temperature coefficient
- Excellent low-light performance in cloudy, rainy, or early/late-day conditions
Get a Quote
Payment Methods:
Description
The ReNew RPS2MH72BDXXX is a cutting-edge bifacial solar module that leverages advanced TOPCon technology combined with high-efficiency M10 monocrystalline cells to deliver an impressive power output between 570W and 590W. Designed for large-scale utility and commercial solar installations, this module offers exceptional energy yield by capturing sunlight on both its front and rear surfaces.
Featuring bifacial gain and improved charge carrier passivation from the TOPCon structure, the module significantly enhances energy conversion efficiency and long-term performance. The half-cut M10 cells reduce resistive losses and improve reliability, while smart soldering techniques ensure superior module durability and low degradation rates.
Built to withstand extreme weather, the RPS2MH72BDXXX offers robust mechanical strength, supporting snow loads up to 5400 Pa and wind loads up to 2400 Pa. Its excellent low-light performance allows consistent power generation even during cloudy days or early mornings, maximizing the overall system output.
With premium materials such as tempered glass and anodized aluminum frames, combined with stringent quality controls, this module delivers reliable performance over its lifespan. Ideal for developers seeking high-efficiency, durable, and cost-effective solar solutions, the ReNew RPS2MH72BDXXX sets a new standard in bifacial solar technology.
Specification
Electrical Specifications
| Bifaciality Factor (%) | Up to 80% |
|---|---|
| Maximum Power Current (Imp) | 13.44 ~ 13.76 A |
| Maximum Power Voltage (Vmp) | 42.44 ~ 42.91 V |
| Maximum System Voltage (V) | 1500 V DC |
| Open Circuit Voltage (Voc) | 51.16 ~ 51.68 V |
| Rear Side Gain (%) | ~ |
| Short Circuit Current (Isc) | 14.16 ~ 14.48 A |
| Temperature Coefficient | – 0.30%/°C |
Connector Specification
| Cables & Connectors | MC4 Compatible |
|---|
Mechanical Details
| Weight | 32.5 kg |
|---|---|
| Dimensions | 2278 × 1134 × 30 cm |
| Cables & Connectors | MC4 Compatible |
| Frame Material | Anodized aluminum |
| Glass Type | High Transmission glass |
| Junction Box Rating | IP68 |
| Mechanical Load Capacity | 5400 Pa (front) / 2400 Pa (rear) |
General
| Cell Type | N-Type |
|---|---|
| Efficiency (%) | 22.07 ~ 22.84 % |
| No. of Cells | 144 |
| Power Rating (Wattage) | 570 WP, 575 WP, 580 WP, 585 WP, 590 WP |
| Panel Type | Bifacial, Monocrystalline, TOPCon |
| Warranty (Years) | 12 years of product warranty |
