Highlights

  • High module efficiency with lower power degradation
  • PID, LID & LeTID resistant for long-term reliability
  • Bifacial design delivers up to 25% extra energy
  • Half-cut & multi-busbar cells reduce shading losses
  • Performs well in snow, humidity, and dusty environments
  • Guaranteed positive power tolerance (0 to +5W)
Brand: Websol

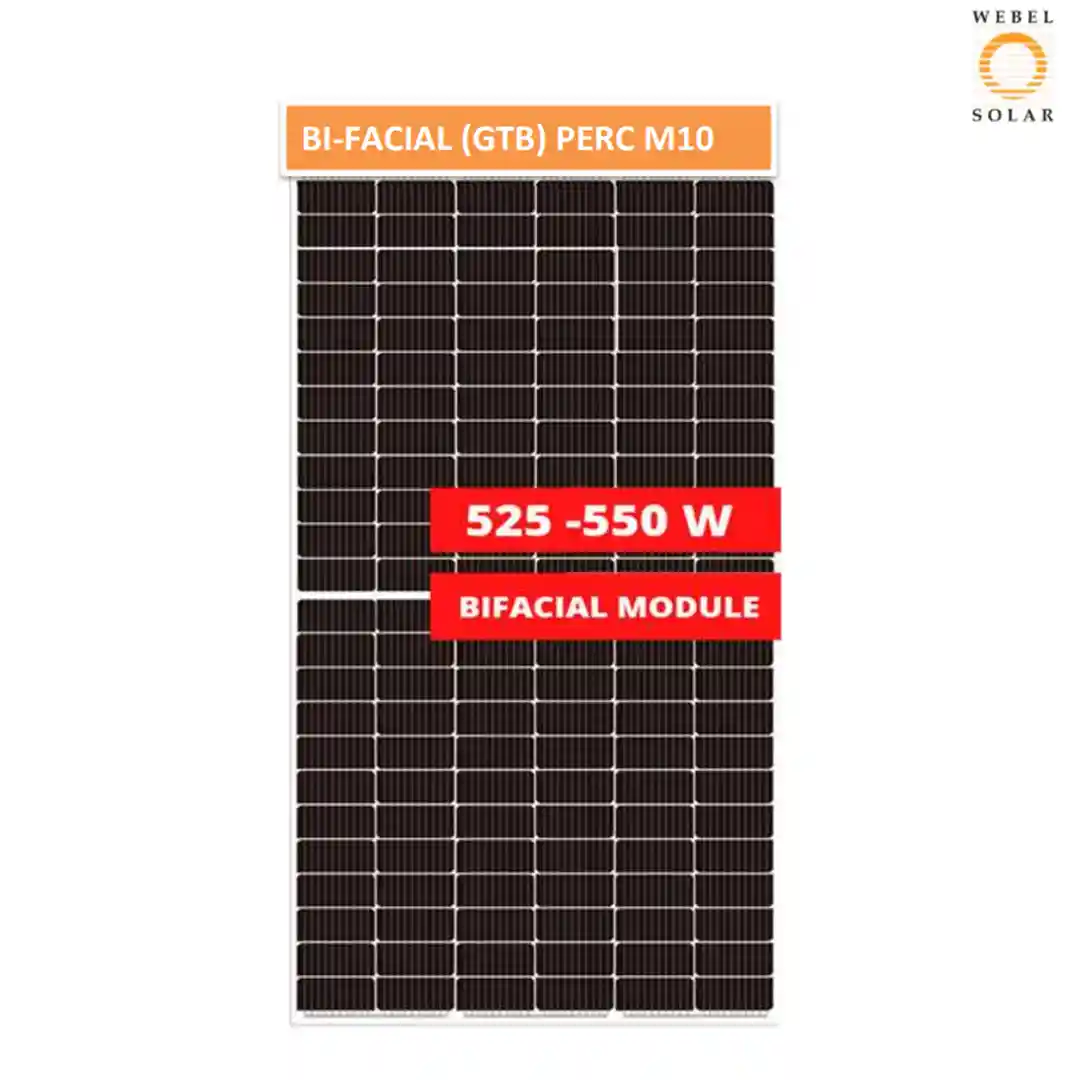

Websol W5500-GTB-MP Series – High-Efficiency 525–550Wp Bifacial Mono PERC Solar Module with Glass-Glass Design

SKU: SP00050

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

Highlights

  • High module efficiency with lower power degradation
  • PID, LID & LeTID resistant for long-term reliability
  • Bifacial design delivers up to 25% extra energy
  • Half-cut & multi-busbar cells reduce shading losses
  • Performs well in snow, humidity, and dusty environments
  • Guaranteed positive power tolerance (0 to +5W)
Brand: Websol

Get a Quote

    4 People watching this product now!

    Payment Methods:

    Payment methods

    Description

    The Websol W5500-GTB-MP Series is a high-performance range of bifacial solar PV modules delivering 525Wp to 550Wp power output. Built with 144 monocrystalline half-cut PERC cells, these modules are designed for high efficiency, durability, and superior energy yield in both utility and commercial installations.

    Featuring an advanced glass-glass construction, this series offers improved durability, lower degradation, and excellent resistance to environmental stressors like humidity, UV exposure, and mechanical load. The bifacial technology allows sunlight to be captured from both front and rear surfaces, increasing total energy generation, especially when installed on reflective surfaces.

    Engineered with multi-busbar (MBB) technology, these modules ensure better current distribution, reduced resistance, and higher performance under partial shading or low-light conditions. The half-cut cell design minimizes power loss and boosts reliability.

    Certified to withstand high wind and snow loads, the W5500-GTB-MP Series modules offer long-term dependability, making them an ideal choice for developers and EPCs looking to maximize return on investment while maintaining excellent system performance over time.

    Specification

    Electrical Specifications

    Bifaciality Factor (%)

    75 ~ 80 %

    Maximum Power Current (Imp)

    12.83 ~ 13.25 A

    Maximum Power Voltage (Vmp)

    40.94 ~ 41.52 V

    Maximum System Voltage (V)

    1500 V DC

    Open Circuit Voltage (Voc)

    48.74 ~ 49.32 V

    Rear Side Gain (%)

    ~

    Short Circuit Current (Isc)

    13.38 ~ 13.68 A

    Temperature Coefficient

    –40 ºC and +85 ºC

    Mechanical Details

    Weight 29 kg
    Dimensions 2278 × 1134 × 35 cm
    Cables & Connectors

    MC4 Compatible

    Frame Material

    Anodized aluminum

    Junction Box Rating

    IP68

    Mechanical Load Capacity

    5400 Pa (front) / 2400 Pa (rear)

    General

    Cell Type

    Efficiency (%)

    No. of Cells

    144

    Power Rating (Wattage)

    ,

    ,

    ,

    ,

    ,

    Panel Type

    ,

    ,

    Warranty (Years)
