Highlights

  • High module efficiency with lower power degradation
  • PID, LID & LeTID resistant for long-term reliability
  • Bifacial design delivers up to 25% extra energy
  • Half-cut & multi-busbar cells reduce shading losses
  • Performs well in snow, humidity, and dusty environments
  • Guaranteed positive power tolerance (0 to +5W)
Brand: Websol

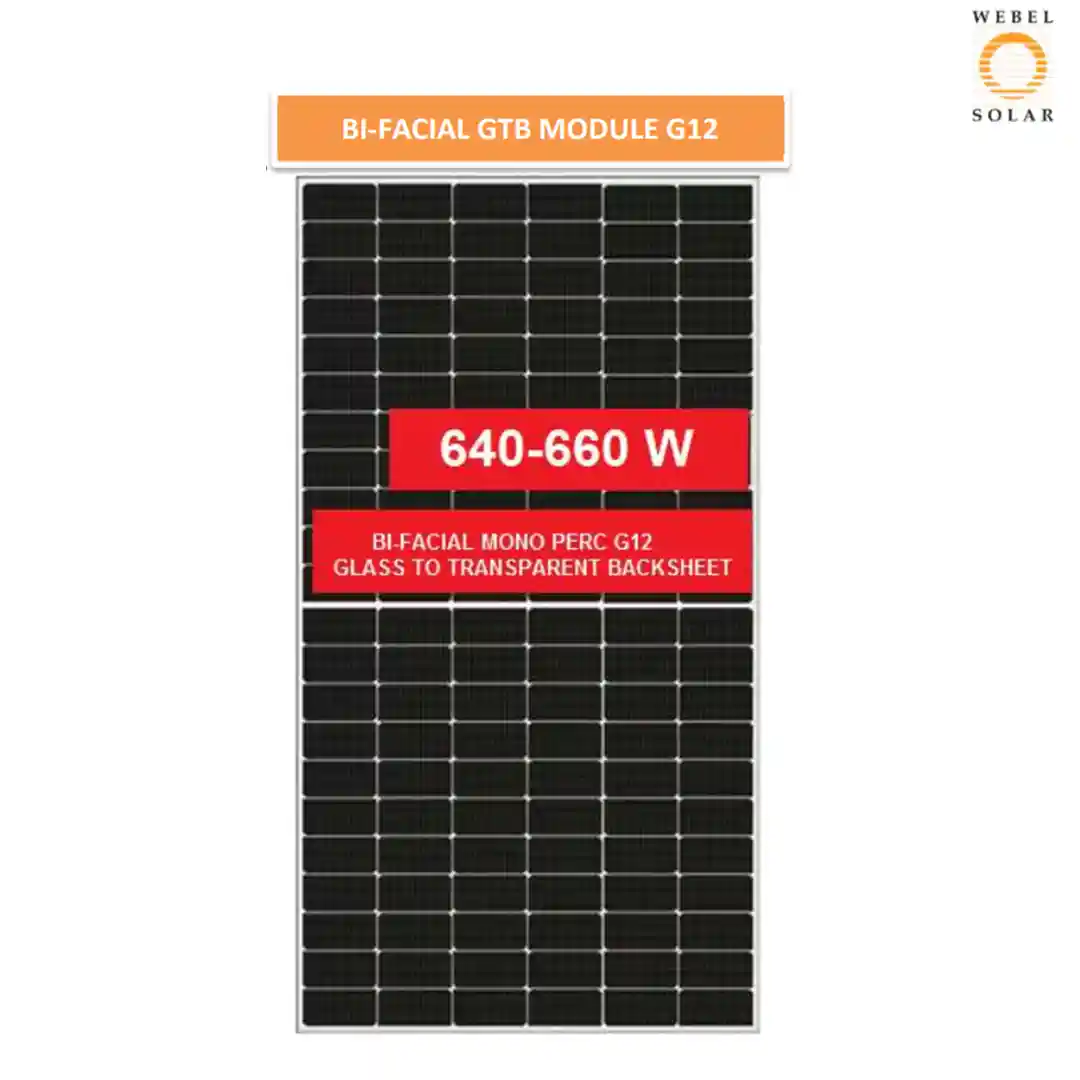

Websol W6600-GTB-MP – 640–660Wp Bifacial Mono PERC Half-Cut Solar Module

SKU: SP00051

Freedom Sale

Hurry and get discounts on all solar products up to 10%

FREEDOM10

This product is currently out of stock and unavailable.

Highlights

  • High module efficiency with lower power degradation
  • PID, LID & LeTID resistant for long-term reliability
  • Bifacial design delivers up to 25% extra energy
  • Half-cut & multi-busbar cells reduce shading losses
  • Performs well in snow, humidity, and dusty environments
  • Guaranteed positive power tolerance (0 to +5W)
Brand: Websol

Get a Quote

    6 People watching this product now!

    Payment Methods:

    Payment methods

    Description

    The Websol W6600-GTB-MP Series is a high-power solar PV module line offering outputs from 640Wp to 660Wp, optimized for large-scale utility and commercial solar installations. Built with monocrystalline PERC half-cut cells and advanced bifacial glass-glass technology, these modules ensure excellent energy yield and long-term reliability.

    With bifacial architecture, the modules capture sunlight from both front and rear surfaces, delivering up to 25% more energy depending on site conditions. This design improves overall energy output and system performance, especially when installed over reflective surfaces such as concrete or sand.

    The half-cut cell and multi-busbar design enhance performance by reducing internal resistance and minimizing losses from shading or microcracks. The robust dual-glass structure improves module durability, offering greater resistance against PID, LID, and harsh environmental conditions.

    Certified to withstand extreme weather, including 5400 Pa snow load and 2400 Pa wind load, the W6600-GTB-MP series offers a positive power tolerance (0 to +5W) and excellent temperature performance. It’s an ideal solution for developers and EPCs seeking maximum output, efficiency, and ROI in high-capacity solar projects.

    Specification

    Electrical Specifications

    Bifaciality Factor (%)70% – 85%
    Maximum Power Current (Imp)16.72 ~ 17.09 A
    Maximum Power Voltage (Vmp)38.28 ~ 38.62V
    Maximum System Voltage (V)1500 V DC
    Short Circuit Current (Isc)18.13 ~ 18.41 A
    Open Circuit Voltage (Voc)44.81 ~ 45.34 V
    Rear Side Gain (%)~
    Temperature Coefficient-0.35 % / °C

    Connector Specification

    Cables & ConnectorsMC4 Compatible

    Mechanical Details

    Weight34 kg
    Dimensions2390 × 1303 × 35 cm
    Cables & ConnectorsMC4 Compatible
    Frame MaterialAnodized aluminum
    Junction Box RatingIP68
    Mechanical Load Capacity5400 Pa (front) / 2400 Pa (rear)

    General

    Cell Type
    Efficiency (%)
    No. of Cells132
    Power Rating (Wattage)
    Panel Type
    Warranty (Years)
